| Axle Bolt Thread Size | N/A |
| Axle Nut Height (mm) | 14 |
| Number Of Outboard Joint Bolt Holes | 0 |
| Outboard Joint Bolt Thread Size | N/A |
| Outboard Joint Boot Material | Neoprene |
| Number of Outboard Splines | 36 |
| Axle Nut Hex Size (in) | 1.67 |
| Outboard Shaft Connection Style | Conventional |
| Axle Nut Locking Type | Self-Lock |
| Outboard Bolt Length (mm) | N/A |
| Number Of Inboard Shaft Bolts | 6 |
| Inboard Bolt Head Size (in) | .25 |

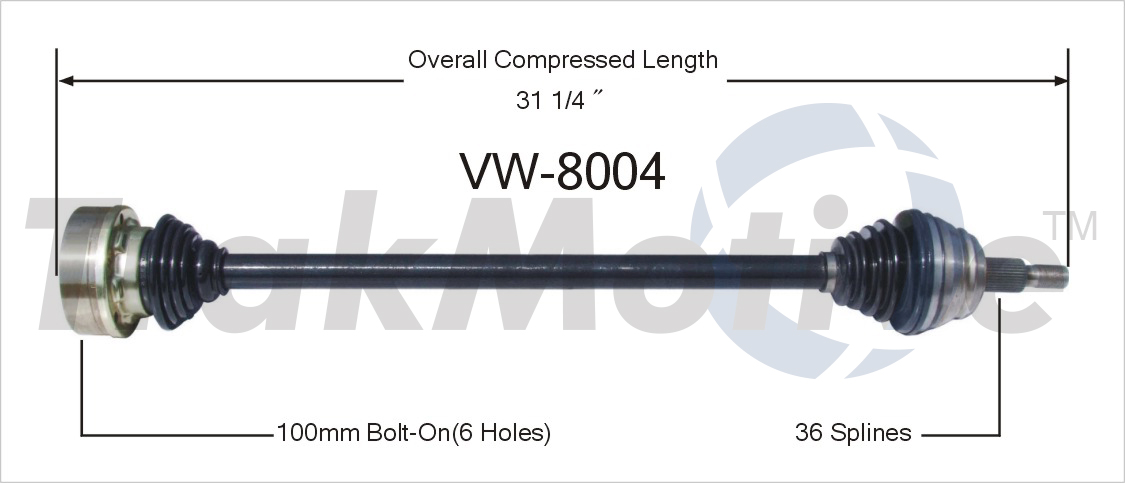

| Overall Compressed Length (in) | 31.26 |
| Axle Nut Included | Yes |
| Inboard Shaft Connection Style | Bolt-On |
| ABS Ring Type | N/A |
| Axle Nut Socket Size | 30 |
| Inboard Bolt Length (mm) | 58 |
| Axle Nut Thread Size | M20X1.5 |
| Axle Nut Length (in) | 1.33 |
| Number Of Inboard Joint Bolt Holes | 6 |
| California Proposition 65 Required | N |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Height (in) | .56 |
| Axle Bolt Length (mm) | N/A |
| Outboard Bolt Head Size (in) | N/A |
| Outboard Joint Type | Conventional |
| Number Of Inboard Splines | 0 |
| Inboard Bolt Thread Size | M8x1.25 |
| Inboard Bolt Head Type | Allen |
| Axle Bolt Hex Size (mm) | N/A |
| ABS Ring Tooth Count | 0 |
| Boot Material | CR |
| Overall Compressed Length (mm) | 794 |
| Number Of Outboard Shaft Bolts | 0 |
| Outboard Bolt Head Type | N/A |
| Number of Bolt Holes | 0 |
| Inboard Joint Type | Bolt-On |
| Axle Nut Length (mm) | 35 |
| Inboard Joint Boot Material | Neoprene |
| Inboard Bolt Head Size (mm) | 6 |
| New Or Remanufactured | New |
| ABS Tone Ring Included | No |
| Inboard Bolt Length (in) | 2.29 |
| Outboard Bolt Length (in) | N/A |
| Axle Nut Head Type | Hex |
| Grade Type | Premium |
| Outboard Bolt Head Size (mm) | N/A |

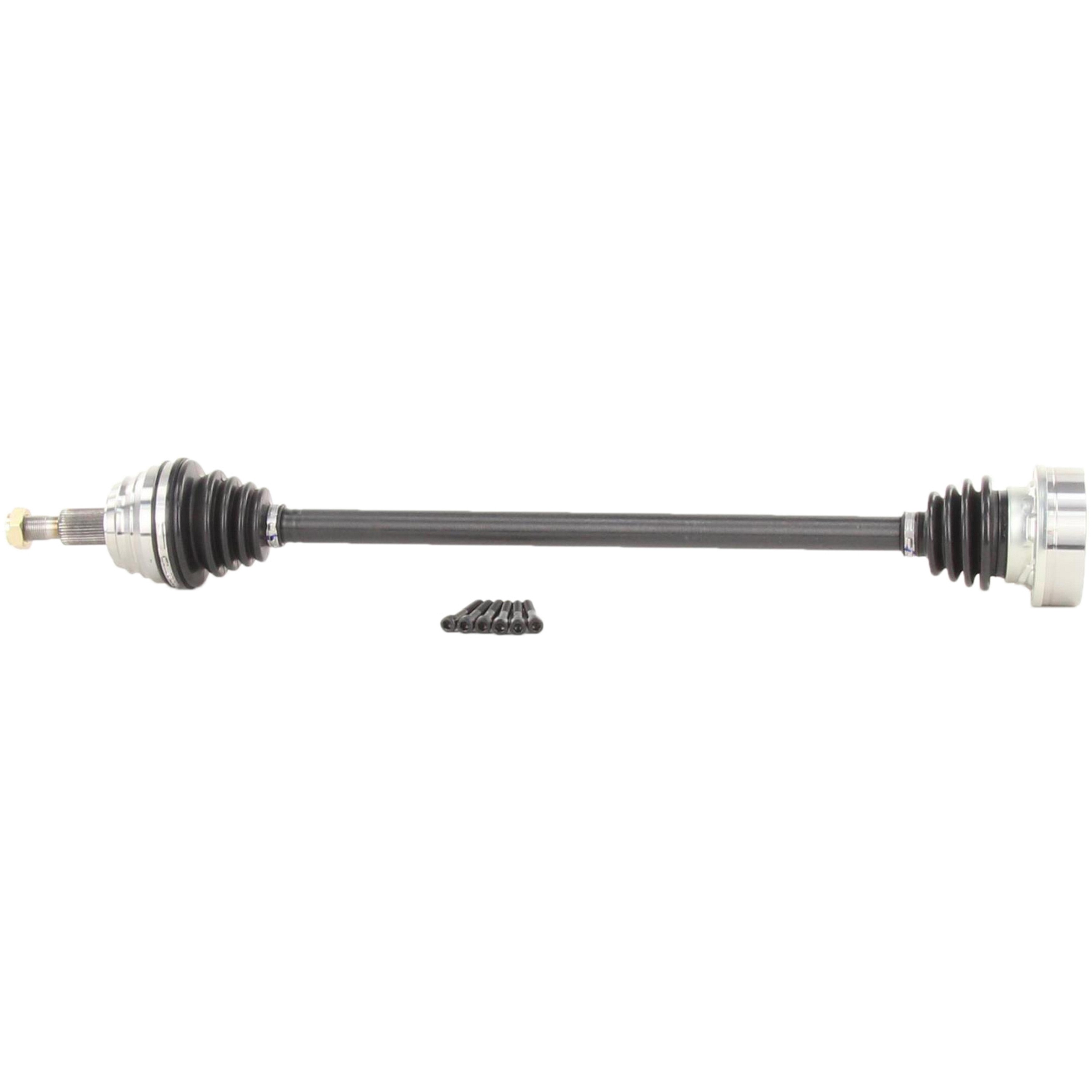

| Part Terminology | CV Axle Shaft |
