U & CV Joints & Drive Shaft

CV Axle Shaft
Part # NI8205 | Line Code: TRA
brandNameImage
brandNameImage

$124.09
error
Not Fitted

Product Details
expand_less
Outboard Joint Type Conventional
Inboard Joint Type Male
Axle Nut Length (mm) 40

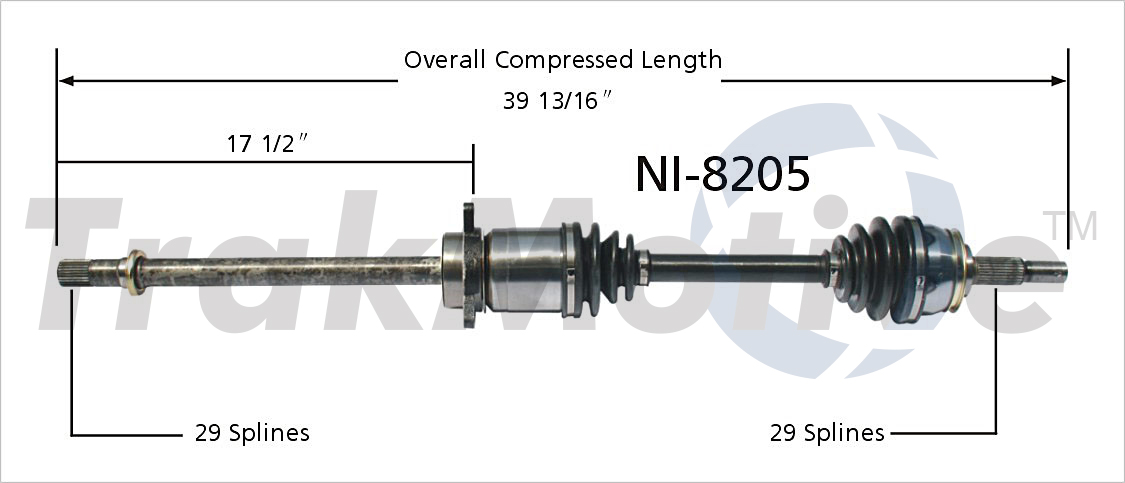

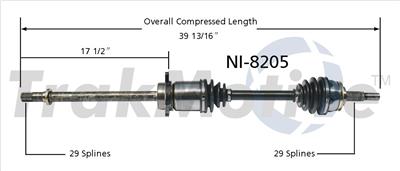

Overall Compressed Length (mm) 1011
Overall Compressed Length (in) 39.8
Number of Bolt Holes 0
Number Of Outboard Joint Bolt Holes 0
Number Of Inboard Splines 29
Axle Nut Thread Size M24X1.5
Number of Outboard Splines 29
Axle Nut Length (in) 1.57
Axle Bolt Thread Size N/A
Axle Bolt Length (mm) N/A
ABS Ring Type N/A
Axle Bolt Hex Size (mm) N/A
Axle Nut Hex Size (mm) 34.64
Axle Nut Locking Type Standard
ABS Ring Tooth Count 0
Number Of Inboard Shaft Bolts 0
New Or Remanufactured New
Inboard Bolt Head Size (in) N/A
Axle Nut Head Type Hex
Outboard Bolt Head Size (in) N/A
Outboard Joint Bolt Thread Size N/A
Inboard Bolt Length (in) N/A
ABS Tone Ring Included No
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Inboard Bolt Head Type N/A
Inboard Bolt Thread Size N/A
Inboard Bolt Head Size (mm) N/A
Inboard Shaft Connection Style Male
Inboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Conventional
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Axle Nut Height (mm) 18
Axle Nut Included Yes
Boot Material CR
Number Of Outboard Shaft Bolts 0
Number Of Inboard Joint Bolt Holes 0
Axle Nut Height (in) .71
Axle Nut Hex Size (in) 1.375
Part Terminology CV Axle Shaft

Features & Benefits
expand_more
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company

Application Summary
expand_more

Nissan
