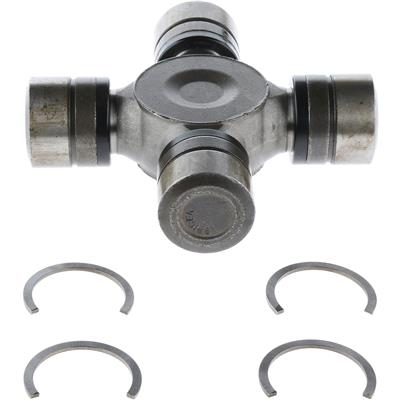

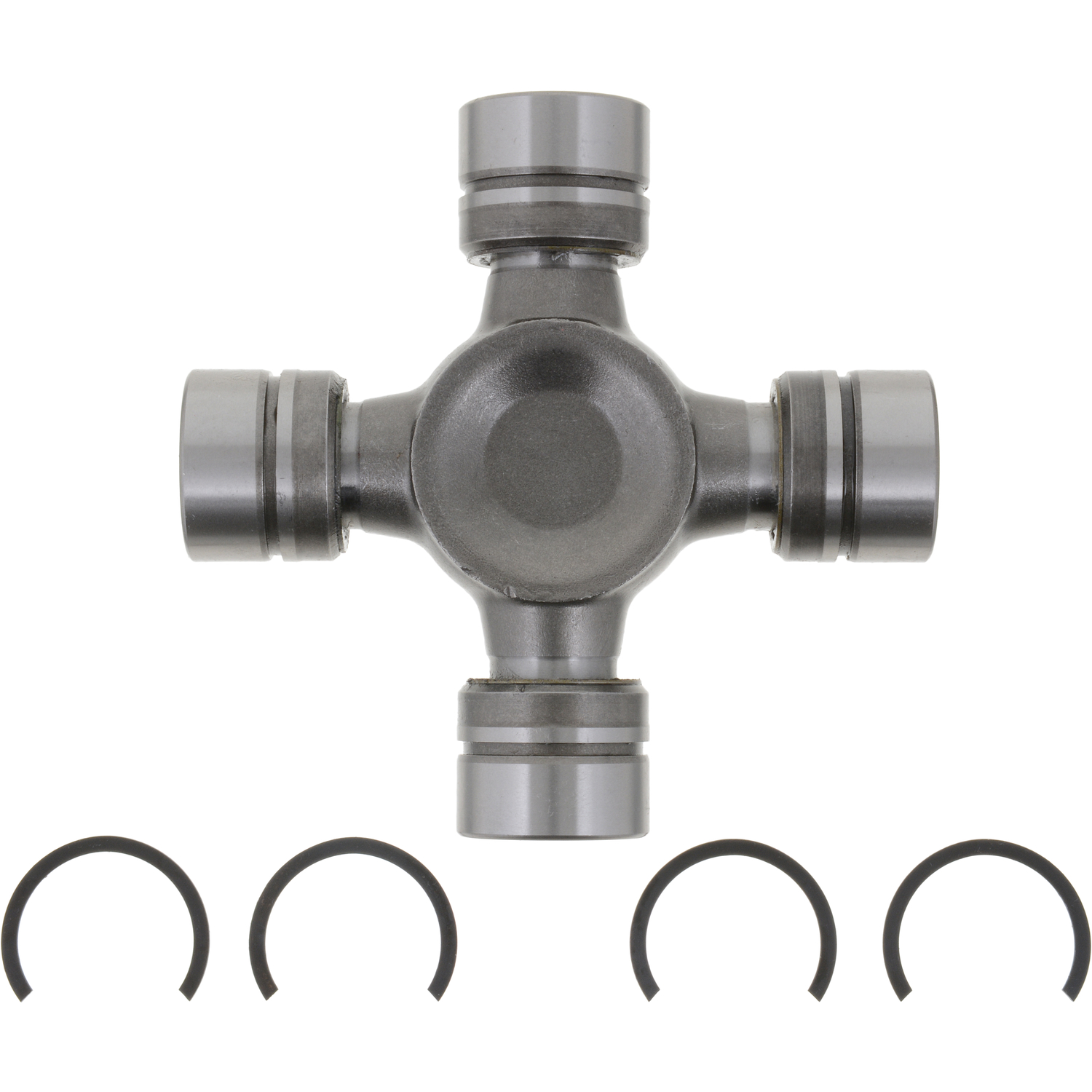

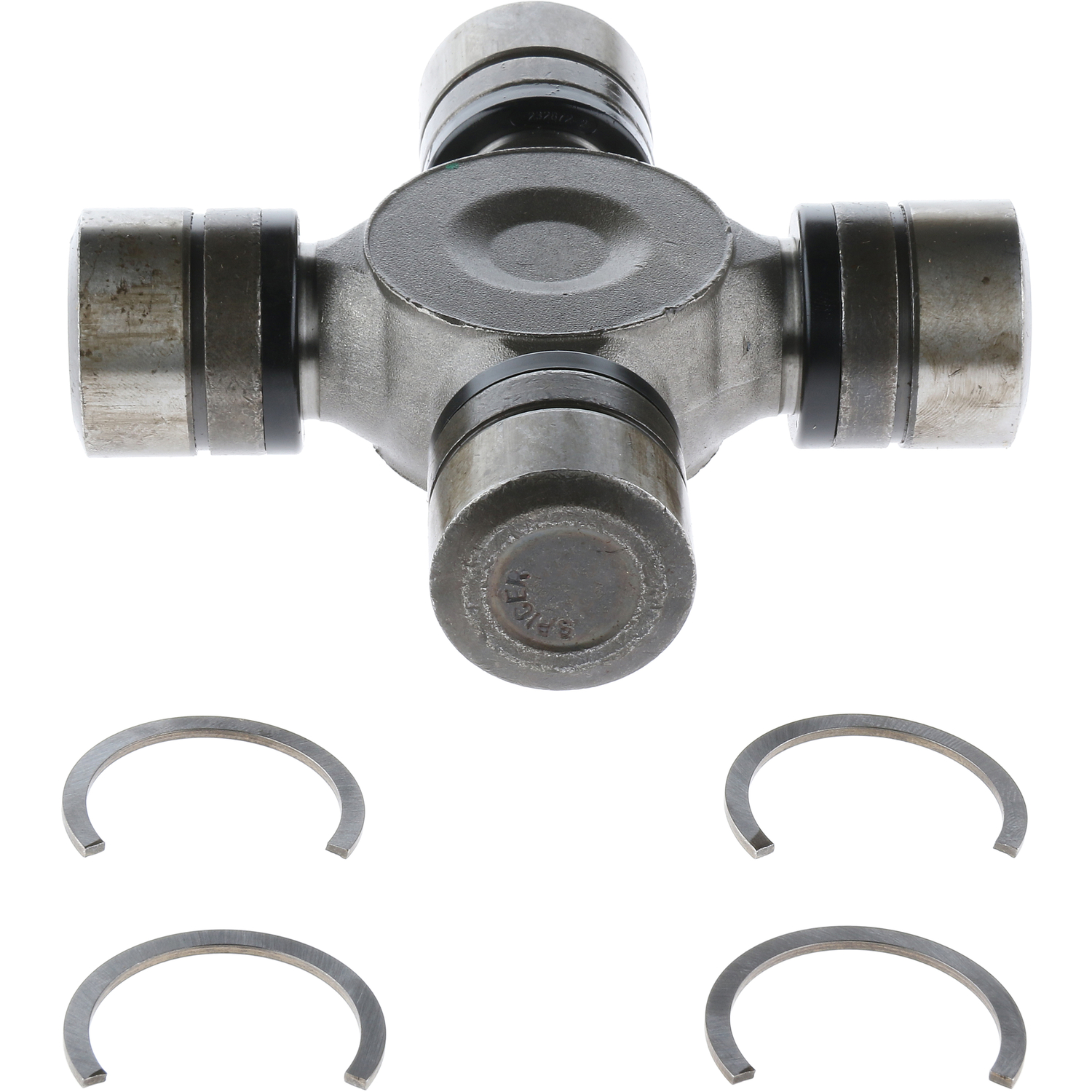

Axle Shaft Universal Joint Non-Greaseable; AAM1555WJ Series
Part # 5-3212X | Line Code: SDP
brandNameImage
brandNameImage

$179.15
$179.15
error
Not Fitted

Product Details
expand_less
Snap Ring Included Y
Bearing Cap Diameter (1) 1.375
Hardware Included N
Snap Ring (1) 3.737
SR(1)Brng Cap to Brng Cap(OSR) 3.737
Heavy Duty Supplier Yes
Bearing Cap Diameter A (mm) 34.925
Length B (mm) 94.7
Length B (In) 3.73
Snap Ring Type Internal
SR(2)Brng Cap to Brng Cap(OSR) 3.737
Pre Greased Yes
Snap Ring (2) 3.737
Bearing Cap Diameter (2) 1.375
Bearing Cap Diameter B (mm) 34.925
OEM Series 1555WJ
Bearing Cap Type Round with ISR Groove
Length A (In) 3.73
Bearing Cap Type B ISR
Grease Zerk Included Not Required
Length A (mm) 94.7
Mounting Hardware Included No
Material Steel
Bearing Cap Type A ISR
OEM Mfg AAM
Type ISR Style
Greaseable N
Prop 65 NO
Distance Btw Snap Ring Grooves (ISR) (2) 3.737
Distance Btw Snap Ring Grooves 3.737
Part Terminology Drive Axle Shaft Universal Joint

Features & Benefits
expand_more
When you see the Spicer name, you know you are buying the highest quality product available. Spicer universal joints are no exception. Dana manufactures a full line of Spicer universal joints that are engineered to ensure longer life for vehicles in a wide variety of applications, from light vehicle to commercial and off-highway.

Application Summary
expand_more

Ram - 2011-19 2500 , 2011-19 3500 , Dodge - 2010 Ram 3500 , 2008 Ram 4500
