| Heavy Duty Supplier | Yes |
| Inlet Header Length | 441 |
| Transmission Oil Cooler Included | Yes |
| Inlet Location | Bottom Left |
| Engine Oil Cooler Included | No |
| Core Width | 418 |
| Transmission Oil Cooler Type | Plated |
| Core Material | Aluminum |
| California_Prop 65 Message | Y |
| Inlet Diameter | 44 |
| Inlet Header Width | 81 |
| Down Flow Or Cross Flow Type | Cross Flow |
| Core Row Quantity | 1 |
| Tank Material | Plastic |
| Outlet Header Width | 81 |
| Transmission Oil Cooler Fitting Type | 11/16-20 UNF Female |
| Outlet Diameter | 44 |
| Outlet Header Length | 441 |
| Internal Transmission Oil Cooler | Yes |
| Mounting Type | Post |
| Core Height | 810 |
| Core Thickness | 56 |
| Transmission Oil Cooler Distance between Fittings | 305 |
| Internal Engine Oil Cooler | No |
| Outlet Location | Bottom right |
| Transmission Oil Cooler Plate Quantity | 4 |
| Frame Included | No |

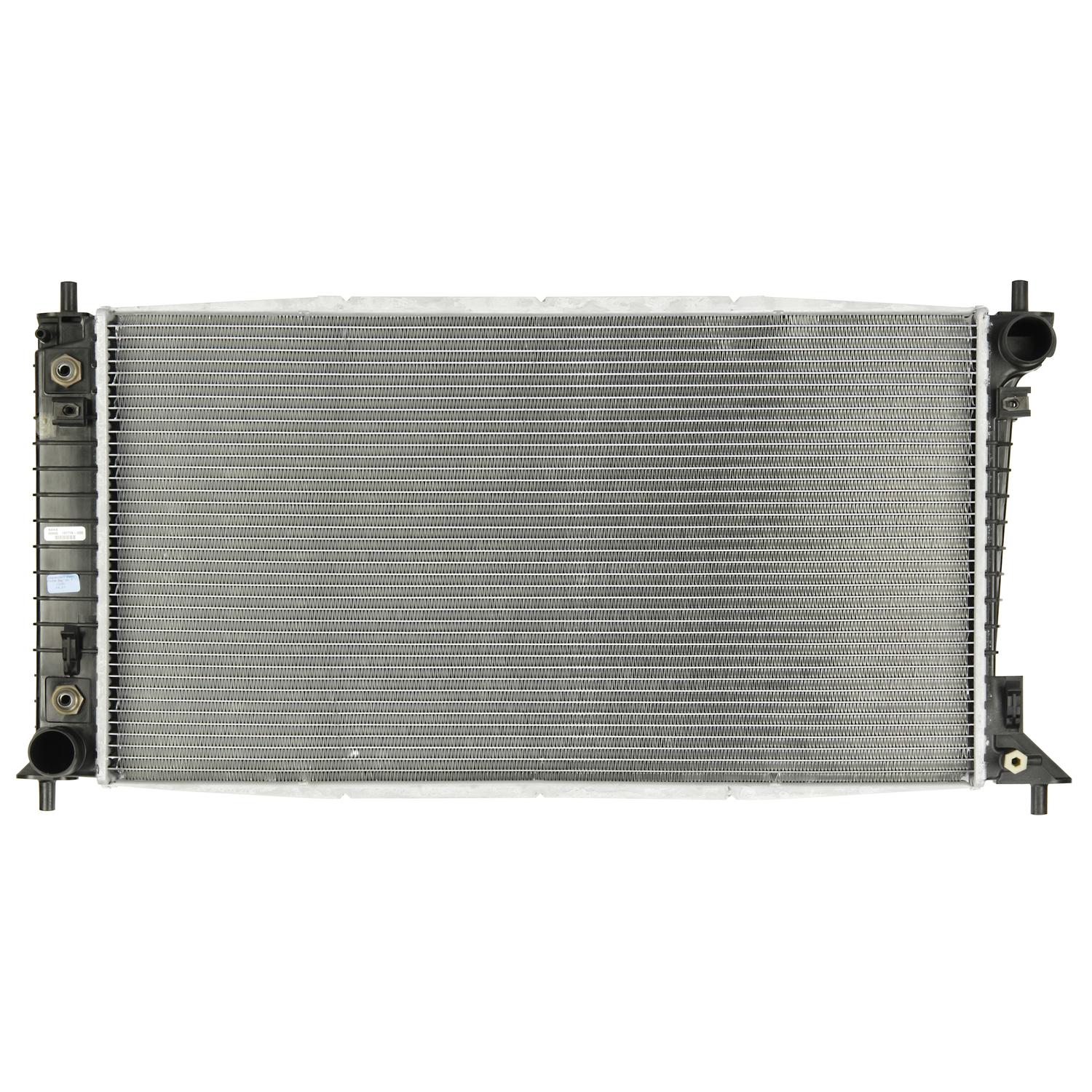

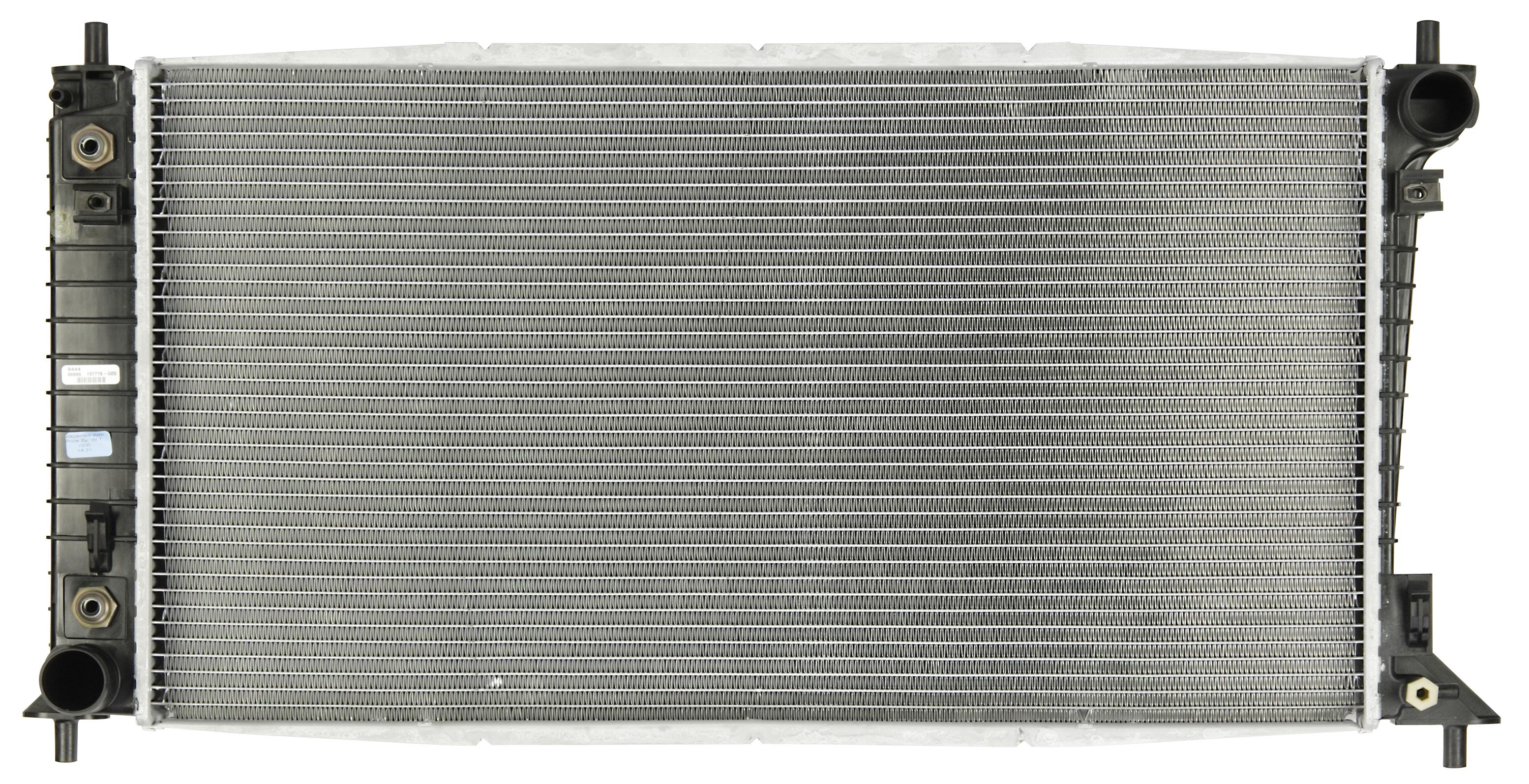

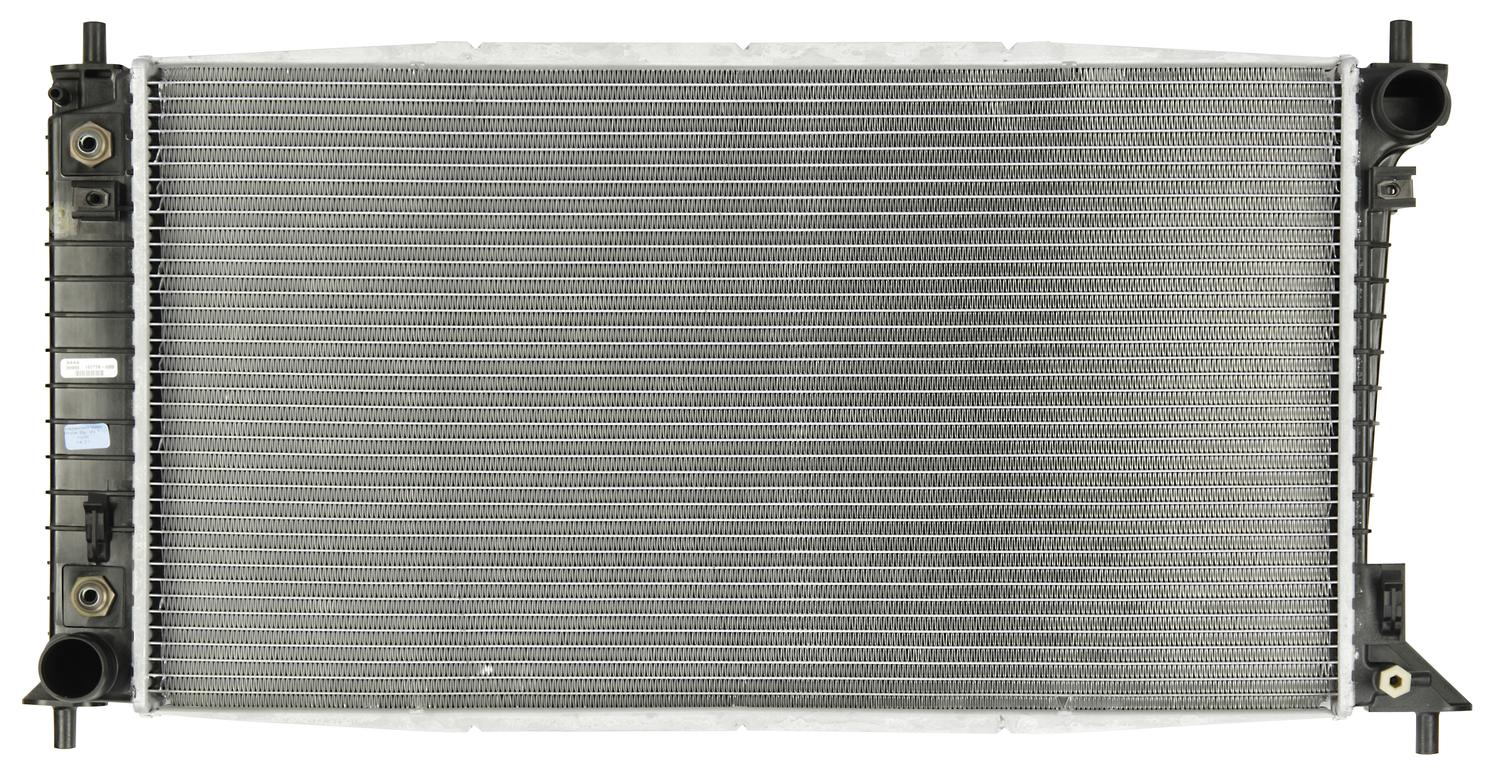

| Part Terminology | Radiator |
