| Overall Height | 73.1 |
| Overall Height (in) | 2.878 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 13.701 In |
| Discard Thickness | 28.4 |
| Heavy Duty Supplier | Yes |
| Center Hole Diameter (mm) | 75 mm |
| Center Hole Diameter (In) | 2.953 In |
| Minimum Thickness (IN) | 1.118 In |
| Depth Of Braking Surface (In) | 1.803 In |
| Depth Of Braking Surface (mm) | 45.8 mm |
| Bolt Holes | 5 |
| Mounting Bolt Hole Quantity | 5 |
| Drum Diameter (In) | 8 In |
| Bolt Circle Diameter (mm) | 120 mm |
| Overall Height (MM) | 73.1 mm |
| Solid Or Vented Type Rotor | Vented |
| Outer diameter (mm) | 348 mm |
| Minimum Thickness (mm) | 28.4 mm |
| New Thickness (In) | 1.181 In |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 4.724 In |
| Outside Diameter | 348.0 |
| Nominal Thickness | 30.0 |
| New Thickness (mm) | 30 mm |

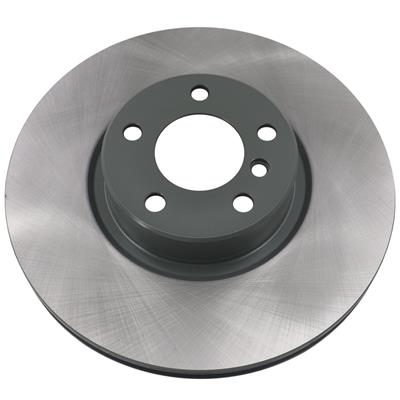

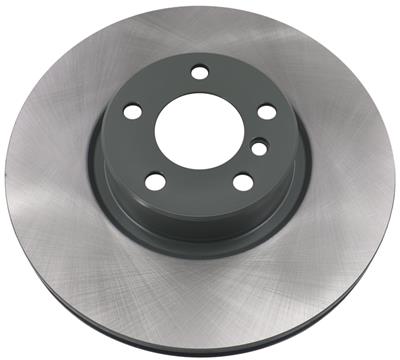

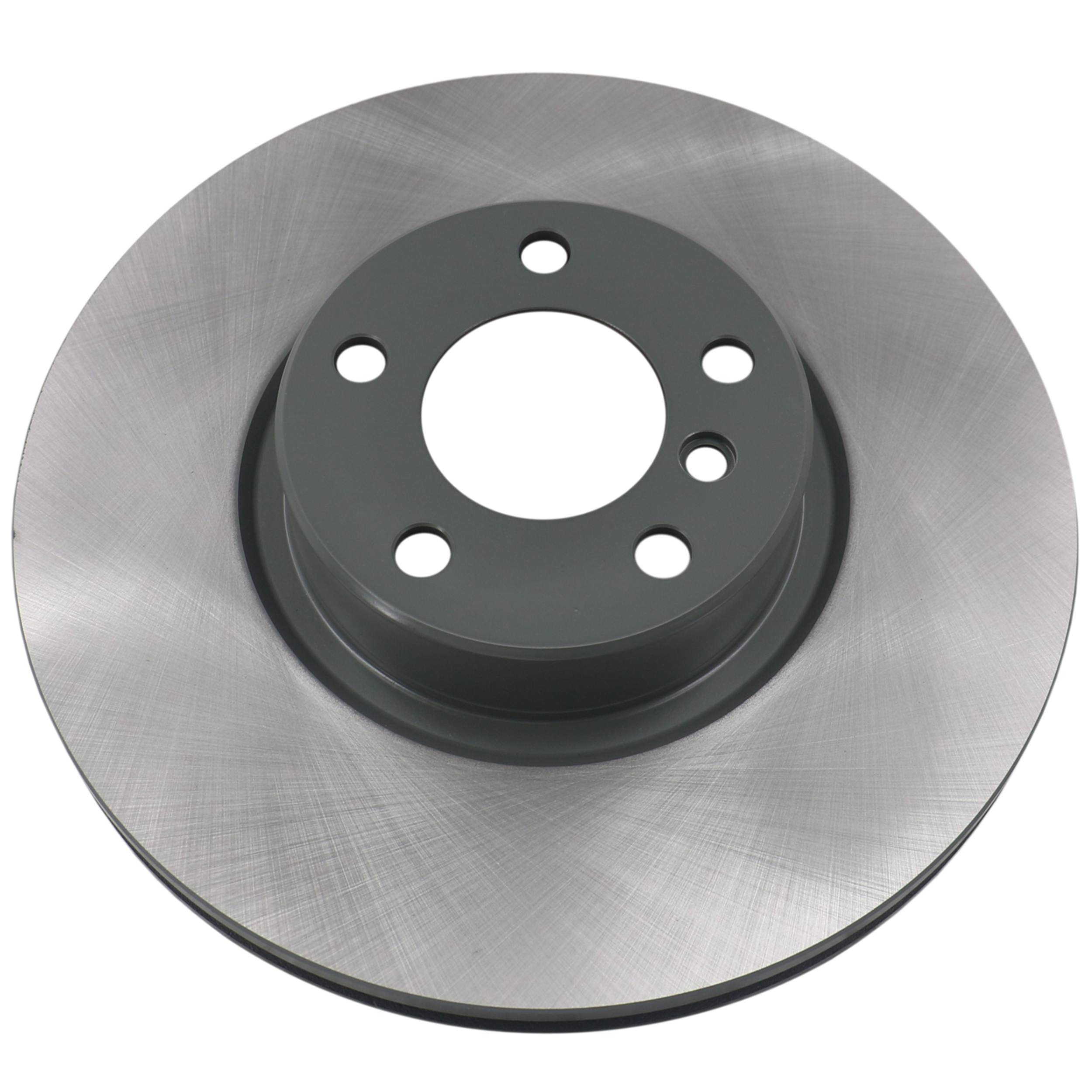

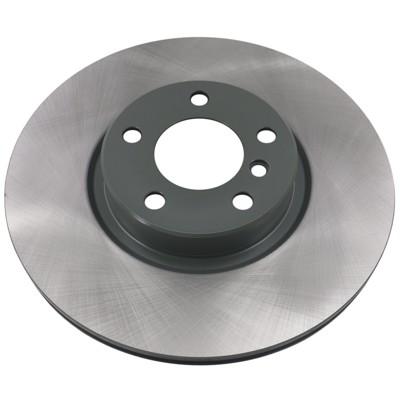

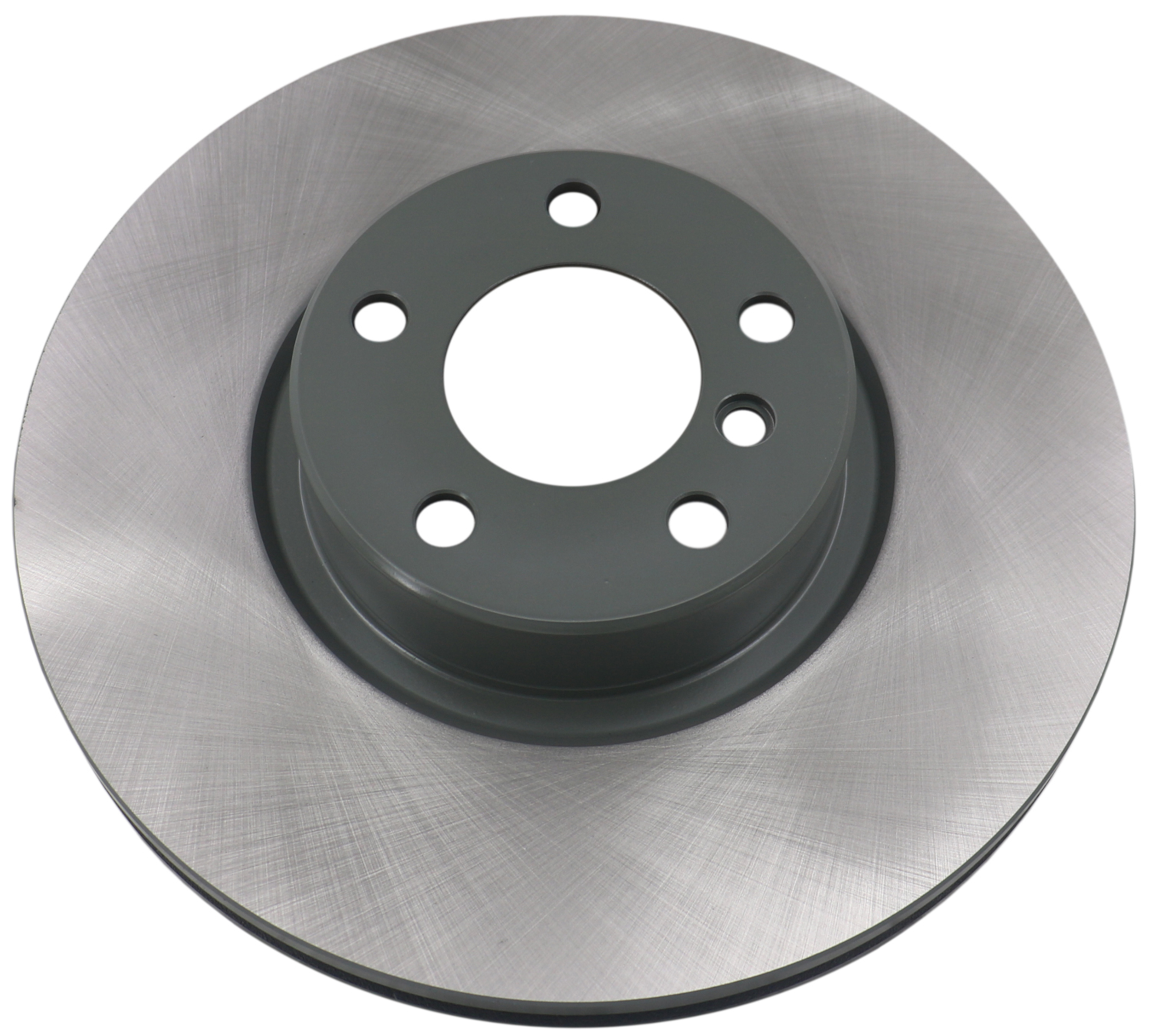

| Part Terminology | Disc Brake Rotor |
