| Overall Height | 116.7 |
| Overall Height (in) | 4.594 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 13.583 In |
| Discard Thickness | 1.591 |
| Overall Height (MM) | 116.7 mm |
| Solid Or Vented Type Rotor | Vented |
| Heavy Duty Supplier | Yes |
| Outer diameter (mm) | 345 mm |
| Center Hole Diameter (mm) | 123.3 mm |
| Center Hole Diameter (In) | 4.854 In |
| Minimum Thickness (IN) | 1.591 In |
| Minimum Thickness (mm) | 40.4 mm |
| New Thickness (In) | 1.654 In |
| Bolt Holes | 8 |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 5.709 In |
| Outside Diameter | 13.583 |
| Mounting Bolt Hole Quantity | 8 |
| Nominal Thickness | 42.0 |
| Bolt Circle Diameter (mm) | 145 mm |
| New Thickness (mm) | 42 mm |

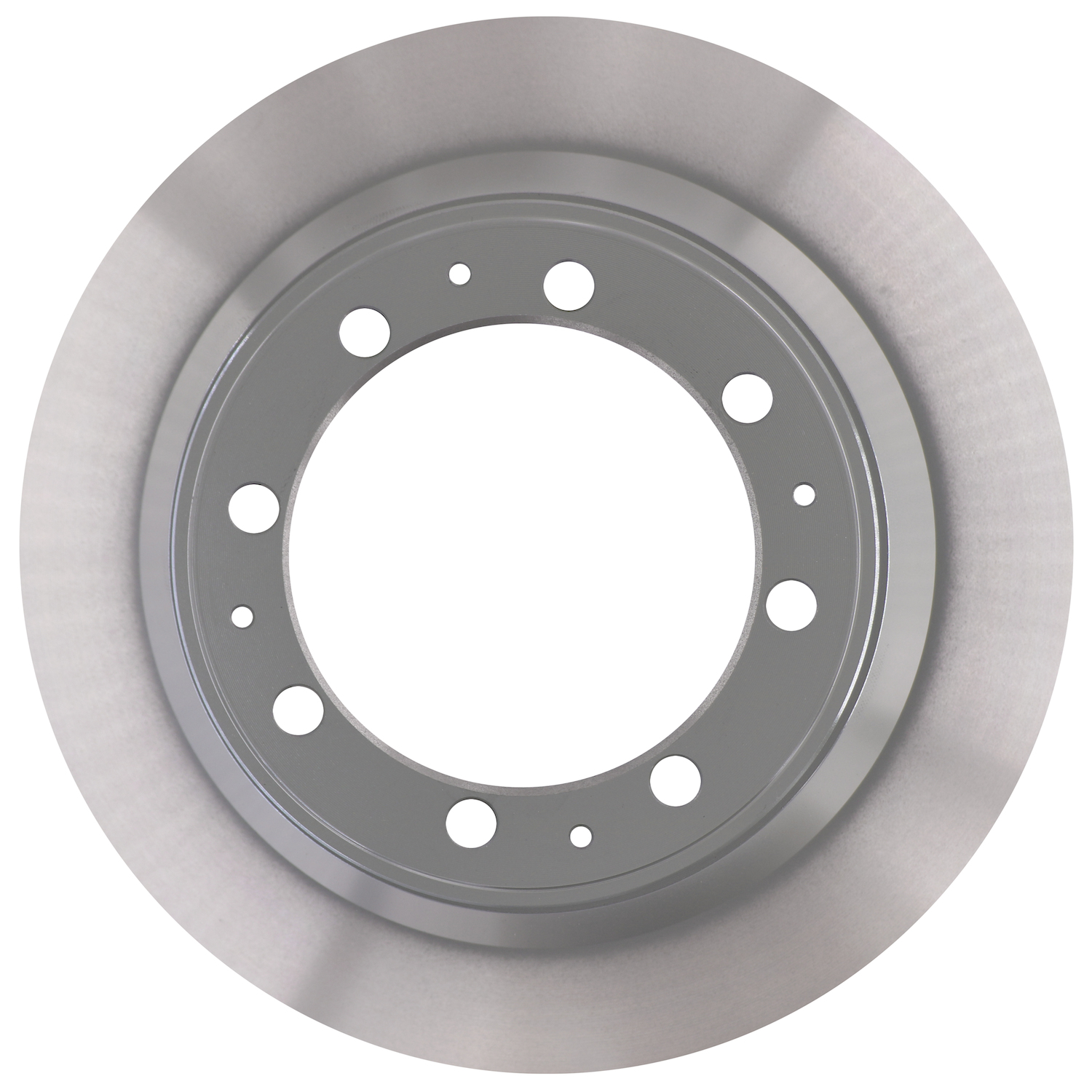

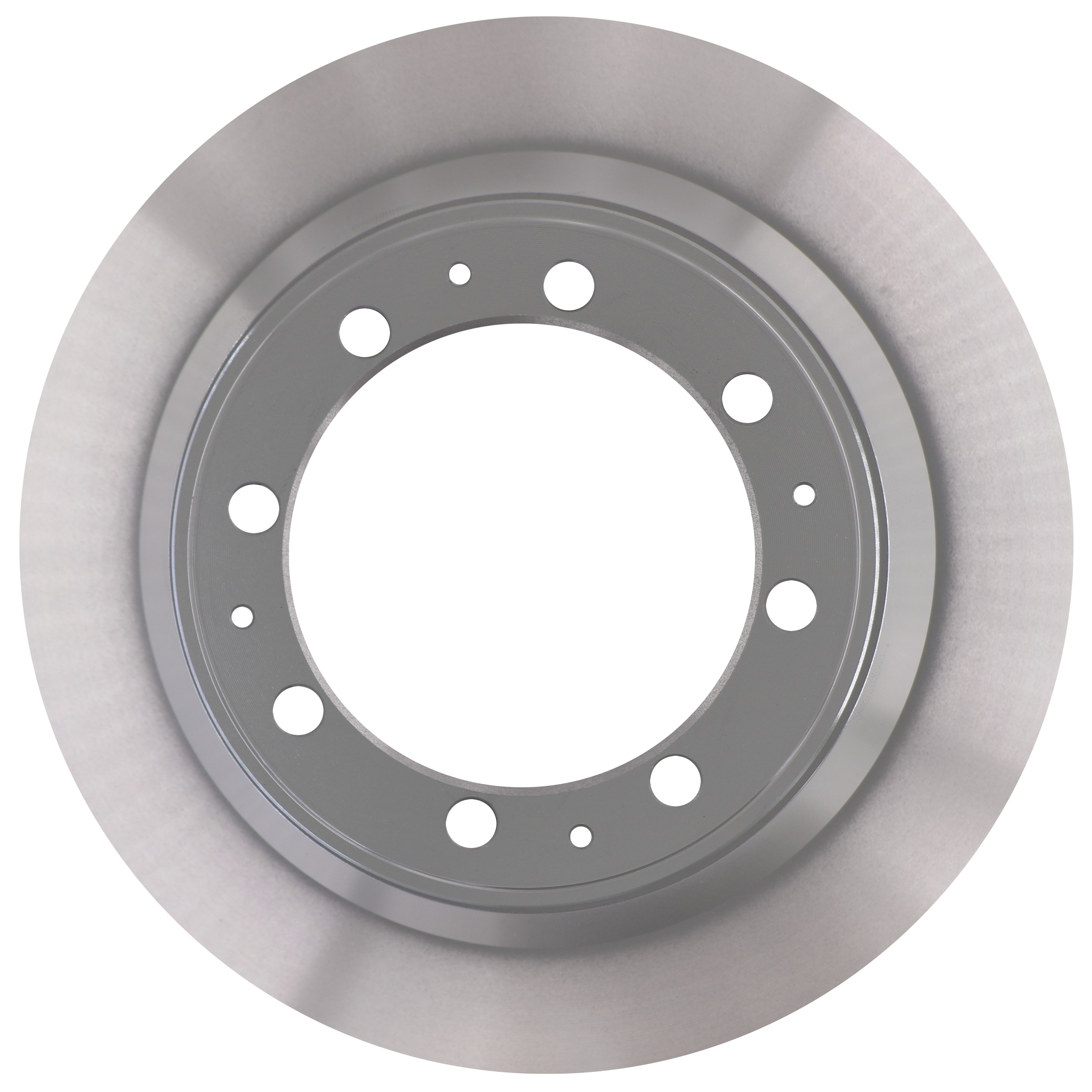

| Part Terminology | Disc Brake Rotor |
