| Overall Height | 48.0 |
| Overall Height (in) | 1.89 In |
| ABS Sensor Ring Included | No |
| Outer Diameter (in) | 10.146 In |
| Discard Thickness | 21.0 |
| Overall Height (MM) | 48 mm |
| Solid Or Vented Type Rotor | Vented |
| Heavy Duty Supplier | Yes |
| Outer diameter (mm) | 257.7 mm |
| Center Hole Diameter (mm) | 54 mm |
| Center Hole Diameter (In) | 2.126 In |
| Minimum Thickness (IN) | 0.827 In |
| Minimum Thickness (mm) | 21 mm |
| New Thickness (In) | 0.866 In |
| Bolt Holes | 5 |
| Surface Type | Smooth |
| Bolt Circle Diameter (in) | 3.937 In |
| Outside Diameter | 257.7 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 22.0 |
| Bolt Circle Diameter (mm) | 100 mm |
| New Thickness (mm) | 22 mm |

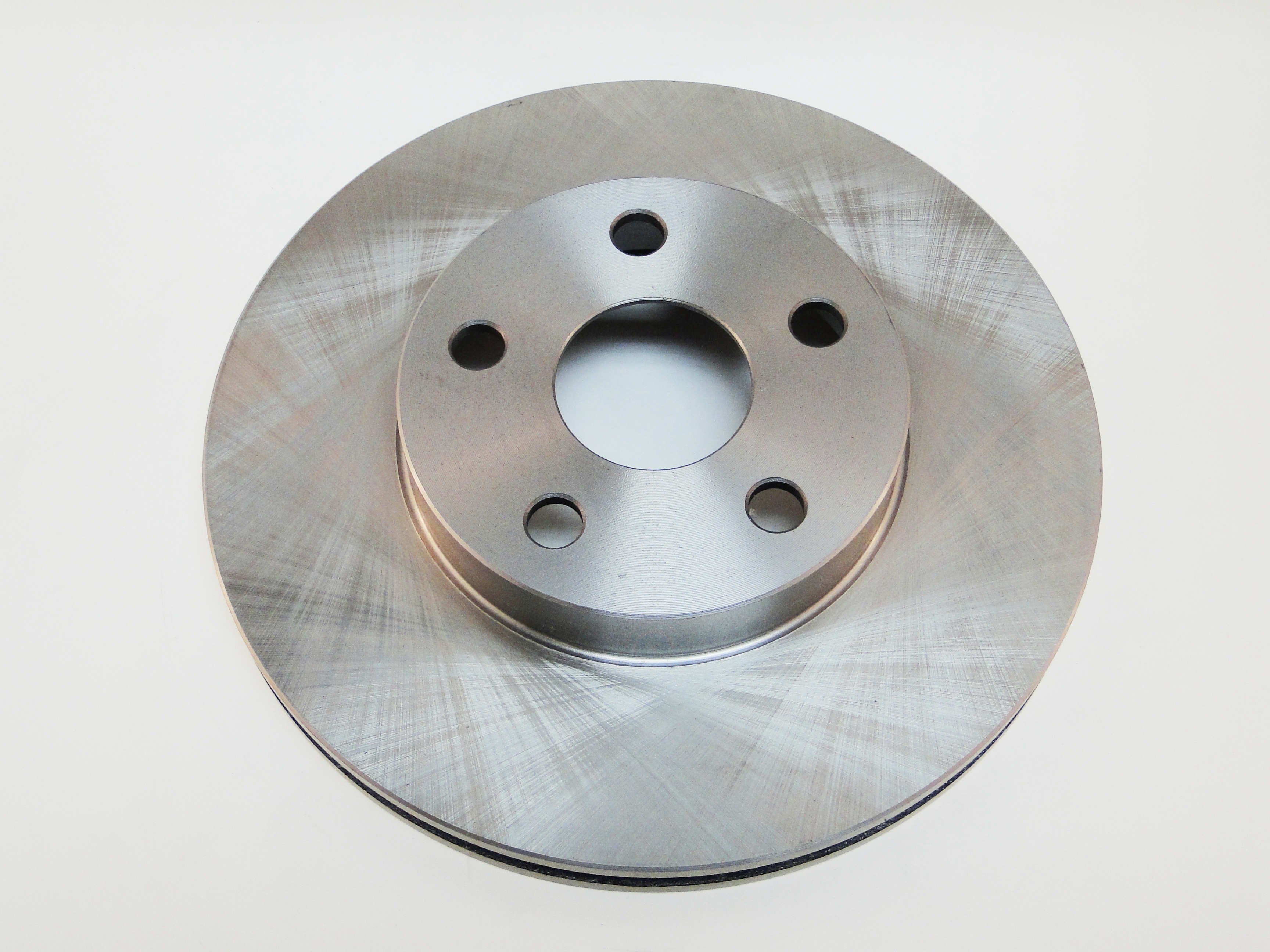

| Part Terminology | Disc Brake Rotor |
