| Flange Length | 101.35 |
| Outlet Port Length | 39.62 |
| Temperature | 203 Deg. F |
| Hardware Included | No |
| Heavy Duty Supplier | Yes |
| Mounting Hole Quantity | 2 |
| Gasket/Seal Material | Rubber |
| Bolts Included | No |
| Opening Temperature | 203 |
| Bolt Hole Center To Bolt Hole Center | 76.96 |
| Seal Quantity | 1 |
| Start to Open Temperature | 95.00 |
| Mounting Hole Diameter | 7.62 |
| Gasket Type | O-Ring |
| Inside Diameter | 33.02 |
| Inlet Outside Diameter | 67.56 |
| Installation Tool Included | No |
| Bolt Hole Quantity | 2 |
| Inlet Quantity | 1 |
| Terminal Quantity | 0 |
| Number Of Outlet Ports | 1 |
| Bleeder Hole | Yes |
| Gasket Or Seal Included | Yes |
| Outlet Diameter | 1.50 IN |
| Color | Black |
| Mounting Hardware Included | No |
| Material | Stainless Steel |
| Flange Thickness | 10.16 |
| Number of Gaskets | 0 |
| Outlet Port Outside Diameter | 1.5 |
| Temperature (Degree) | 203 |
| Gasket Or Seal Required | Yes |
| Outlet Port Inside Diameter | 33.02 |
| Inlet Inside Diameter | 51.82 |
| Number of Bolt Holes | 2 |
| Gasket Or Seal Material | Rubber |
| Valve Type | Disk |
| MAP Controlled | No |
| Gasket or Seal Pre-Installed | Yes |
| Jiggle Pin Included | Yes |
| Prop 65 | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Gasket Quantity | 0 |
| Outlet Port Quantity | 1 |
| Flange Width | 75.18 |
| Gasket/Seal Preinstalled | Yes |
| Number of Seals | 1 |
| Grade Type | Standard Replacement |

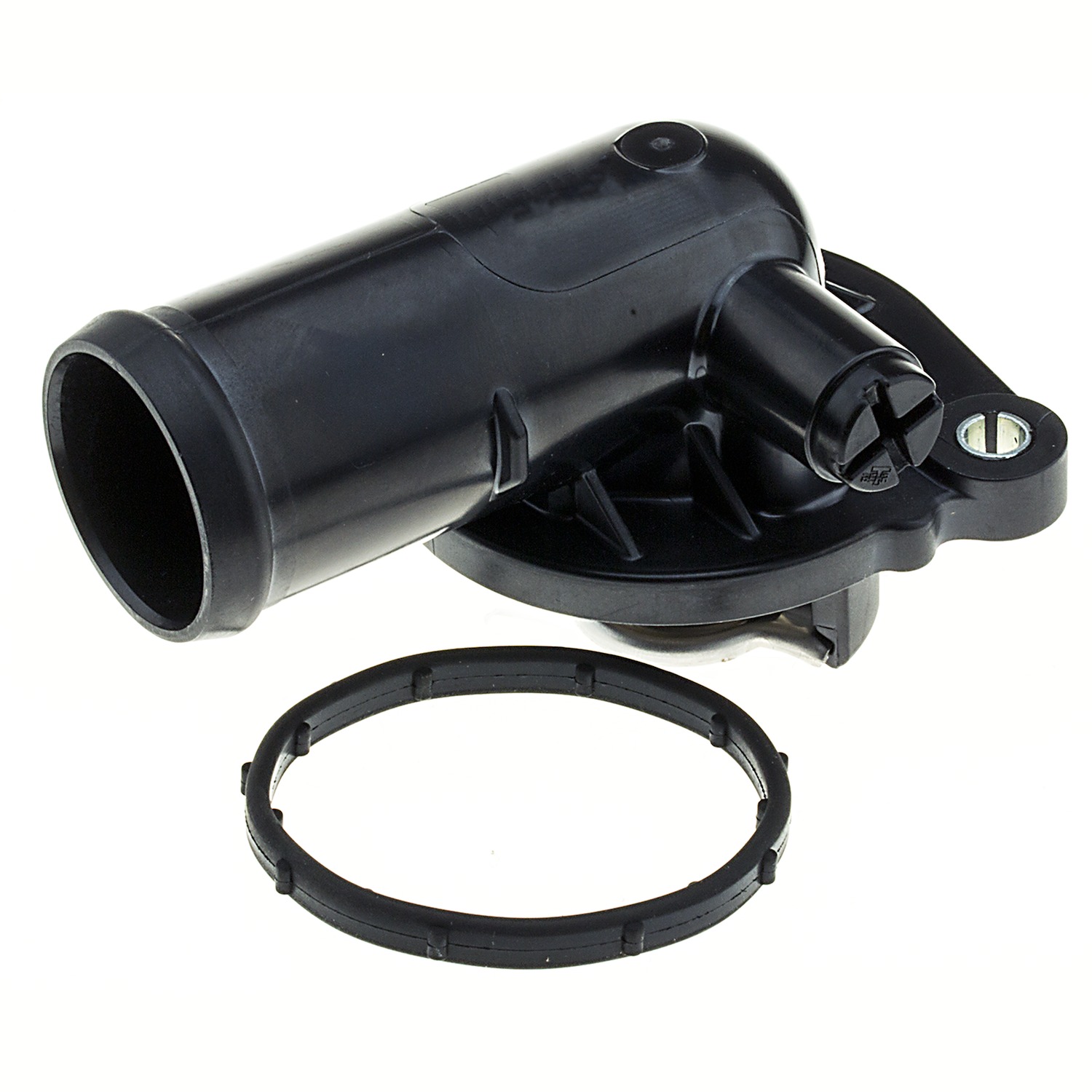

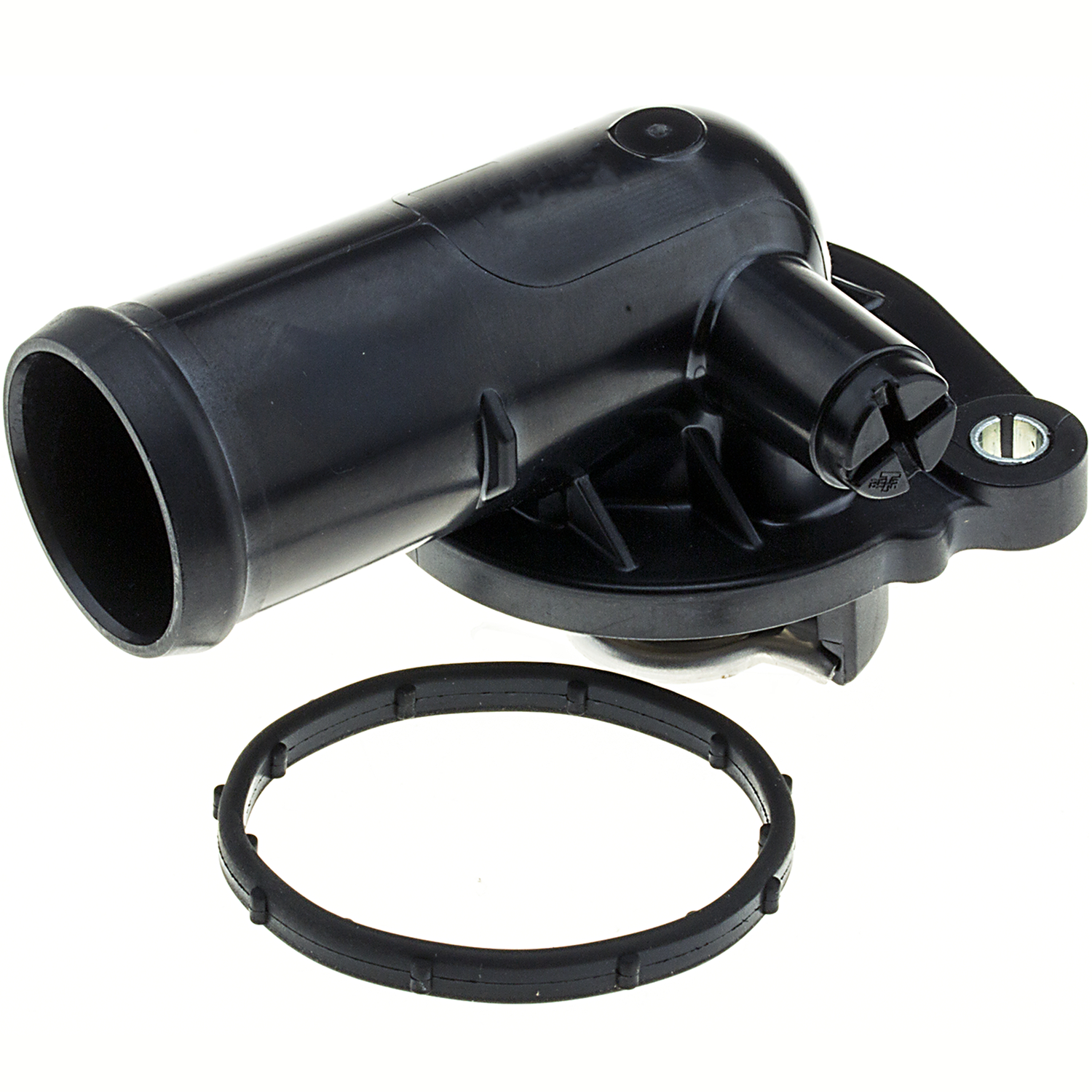

| Part Terminology | Engine Coolant Thermostat Housing Assembly |
