| Bypass Diameter | 0.92 IN |
| Temperature | 195 Deg. F |
| Seal Type | O-Ring |
| Heavy Duty Supplier | Yes |
| Gasket/Seal Material | Rubber |
| Sealing Flange Outside Diameter | 45.72 |
| Start to Open Temperature | 90.56 |
| Depth | 32.77 |
| Jiggle Pin Weep Hole | No |
| Design | OEM |
| Valve Outside Diameter | 1.21 in |
| Installation Tool Included | No |
| Bolt Hole Quantity | 0 |
| Seal Material | Rubber |
| Height | 53.85 |
| Outlet Outside Diameter | 31.75 mm |
| Bypass Length | 1.37 IN |
| Gasket Or Seal Included | Yes |
| Color | Brass |
| Electric | No |
| Material | Steel |
| Flange Thickness | 1.27 |
| Temperature (Degree) | 195 |
| Type | Fail-Safe |
| Outlet Inside Diameter | 26.42 mm |
| Gasket Or Seal Required | Yes |
| Gasket Or Seal Material | Rubber |
| MAP Controlled | No |
| Prop 65 | WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
| Gasket Quantity | 0 |
| Height Between Flanges | 33.50 |
| Number of Seals | 1 |
| Grade Type | OEM |

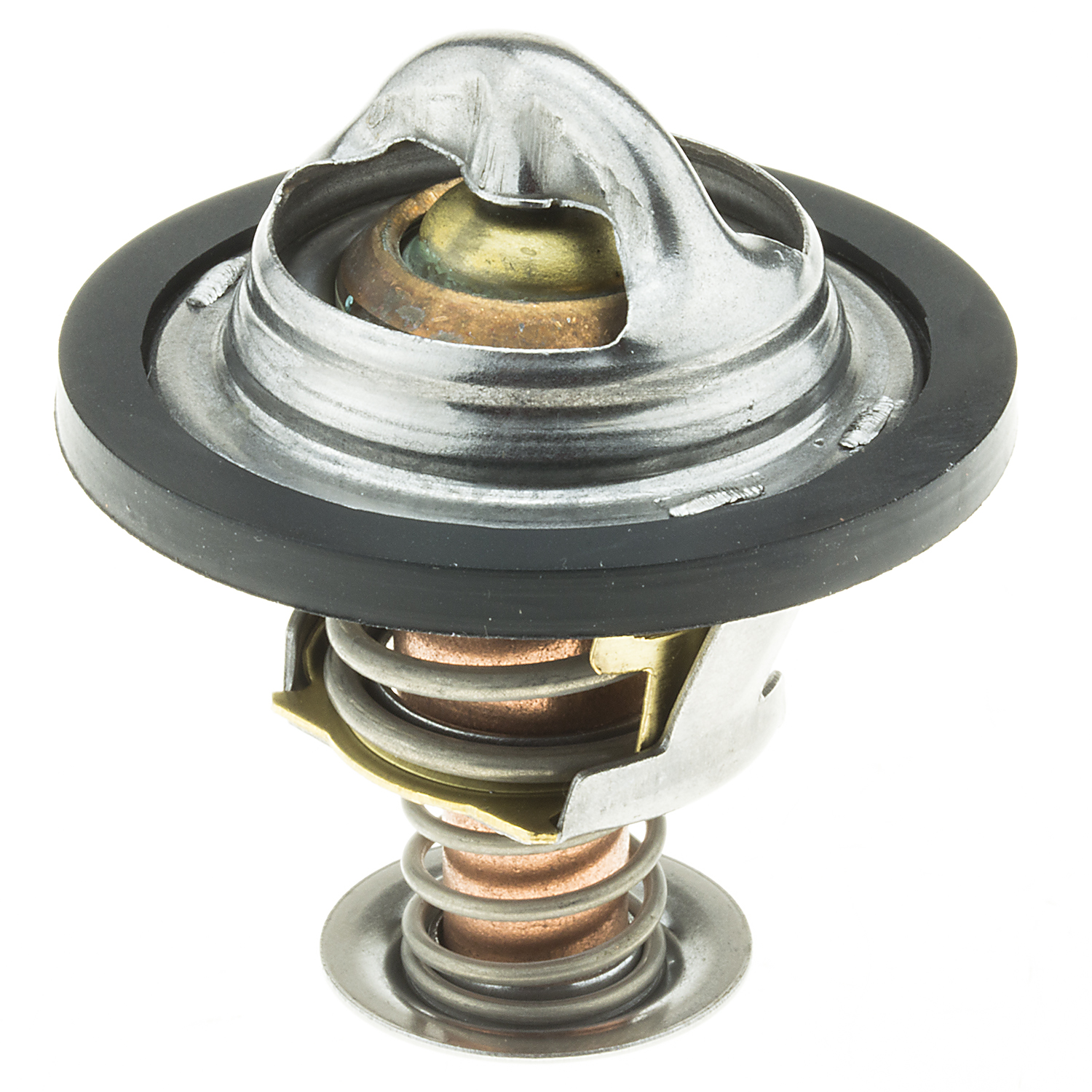

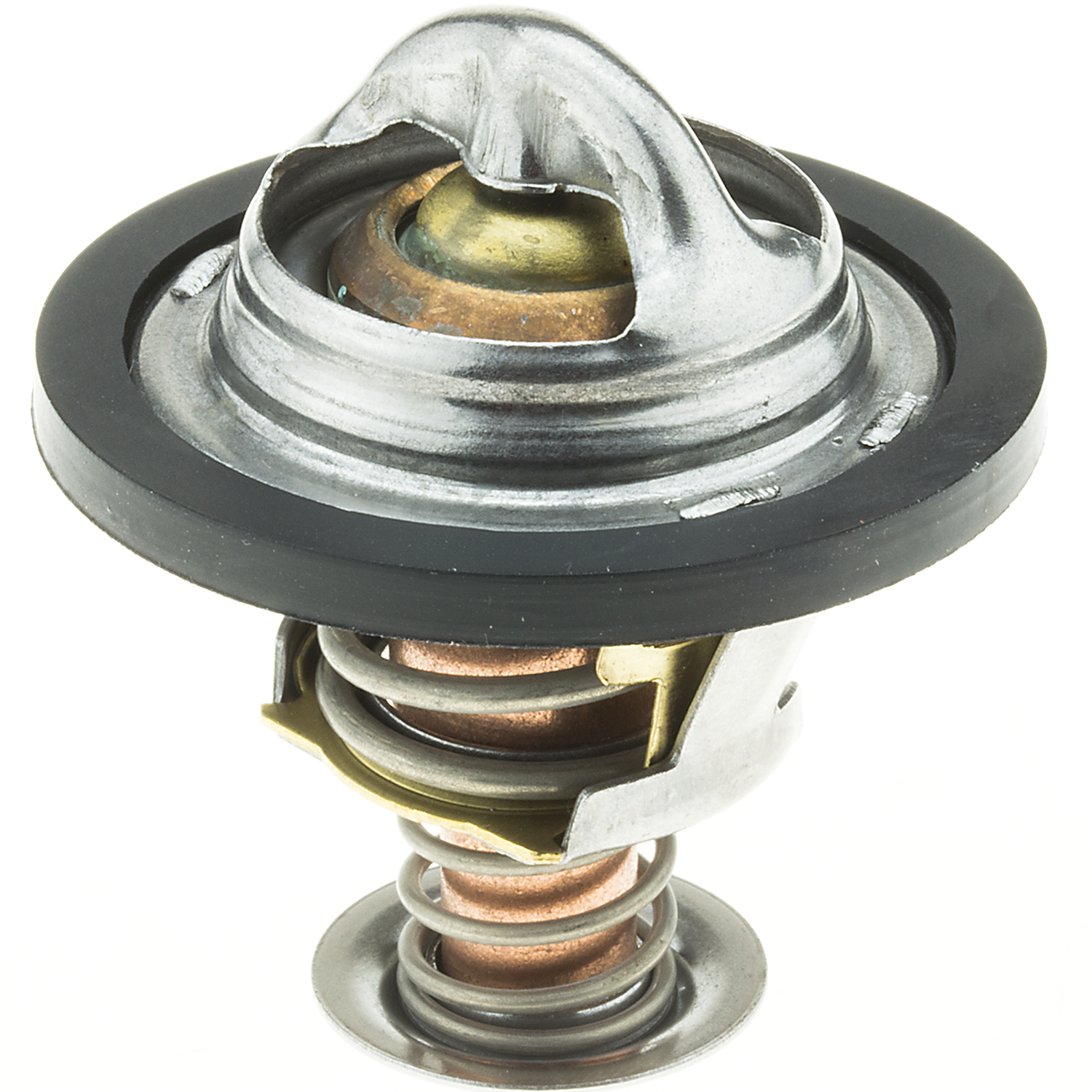

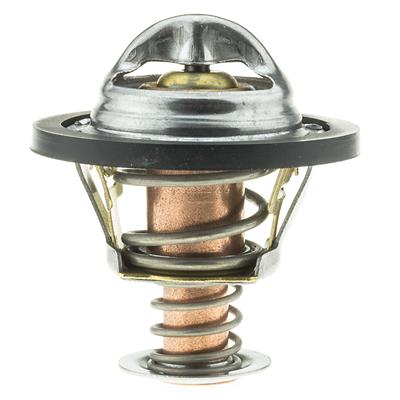

| Part Terminology | Engine Coolant Thermostat |
