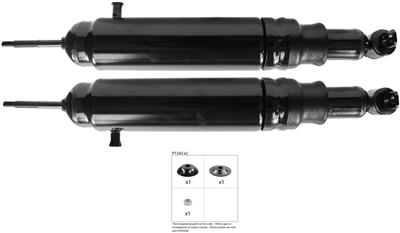

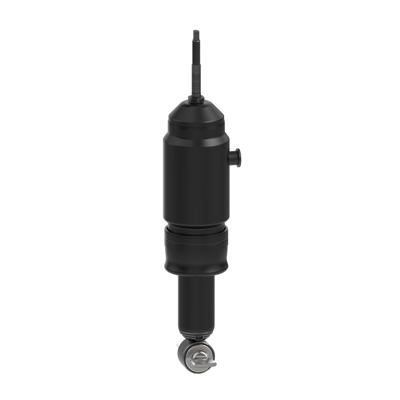

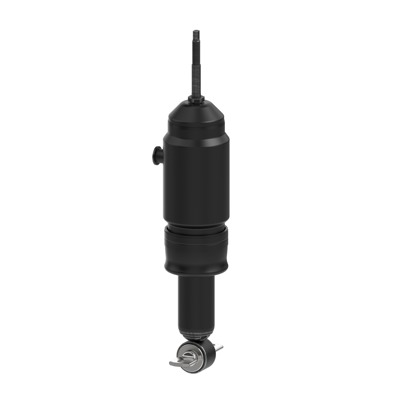

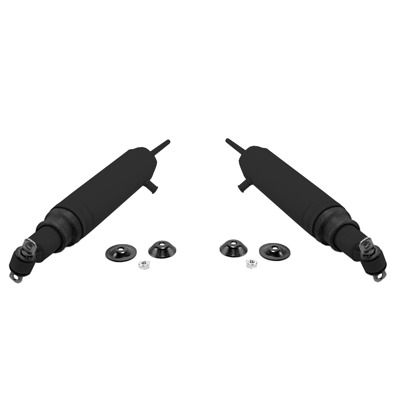

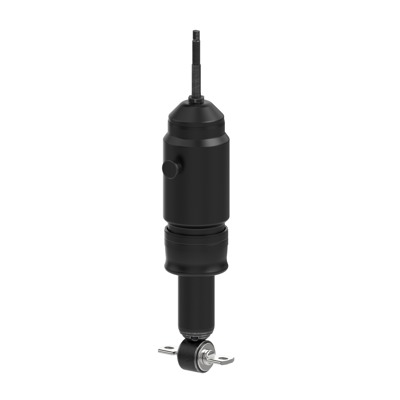

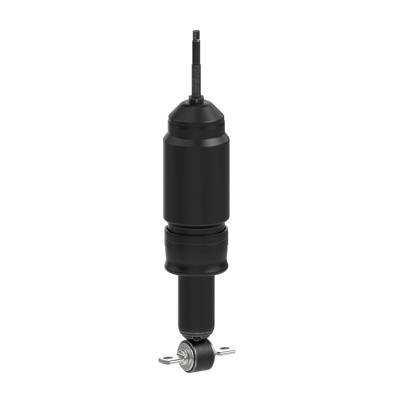

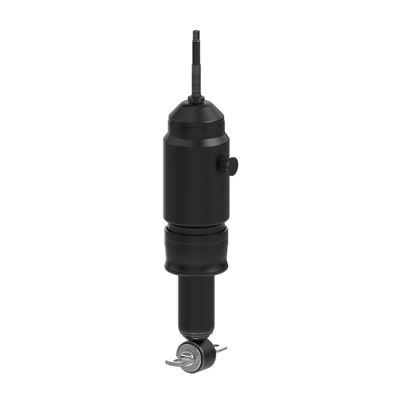

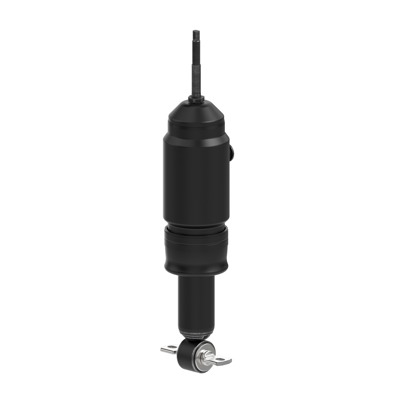

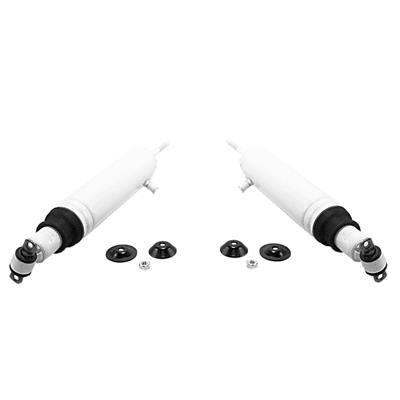

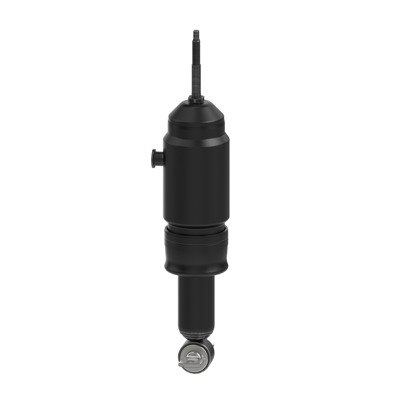

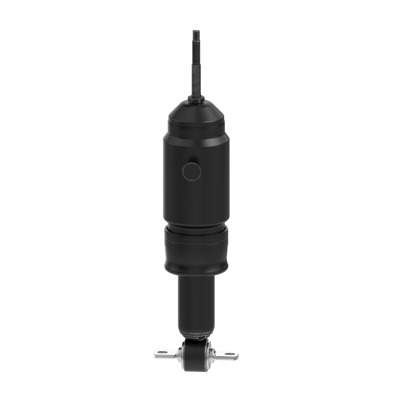

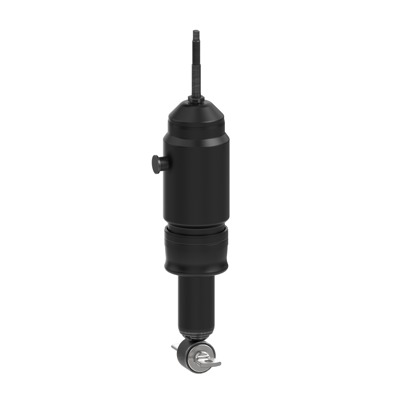

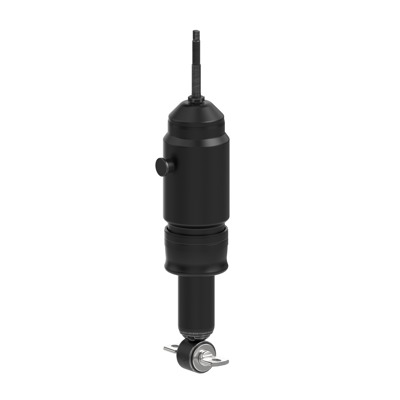

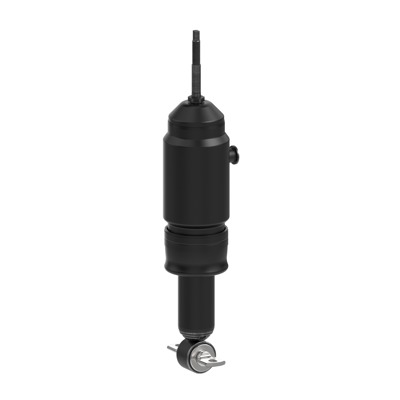

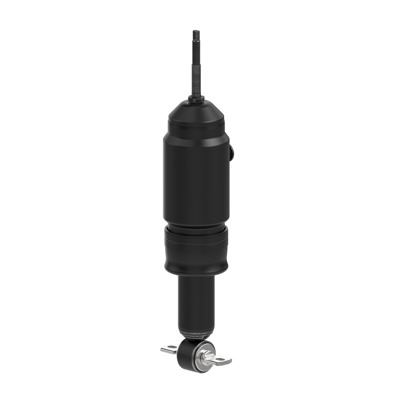

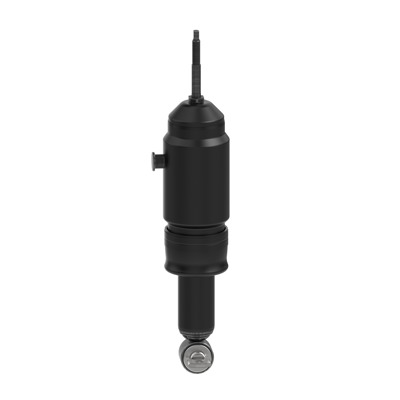

Monroe max-air air shock absorber
Part # MA-822 | Line Code: MNE
brandNameImage
brandNameImage

$154.22

help
Not Fitted / Universal


Product Details
expand_less
Lower Mounting Code XP7
Upper Mounting Code S1
Compressed Length 14.5
Extended Hydraulic Lockout No
Extended Bumper Stop Yes
Compressed Bumper Stop Yes
Travel Length 9.875
Extended Length 24.375
Dust Shield Material Rubber
Heavy Duty Supplier Yes
Lower Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Upper Mount Type Stem Mount - Stem Length X M10 Thread Pitch
Parts Pack P01243
Lower Mounting Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Upper Mounting Type Stem Mount - Stem Length X M10 Thread Pitch
Lower Mount Code XP7
Upper Mount Code S1
Parts Pack(s) (2) P01243
Hydraulic Lockout No
Internal Rebound Bumper Yes
Part Description Air Shock Absorber
Dust Shield Yes

Features & Benefits
expand_more
Ideal for hauling, Monroe® Max-Air® shock absorbers can be inflated or deflated up to 150 PSI to maintain level height with additional weight up to 1,200 lbs. (capacity is limited by vehicle suspension, tires and transmission. See vehicle owner's manual.)

Application Summary
expand_more

2005-2000 Buick Lesabre Rear, 2011-2006 Buick Lucerne Rear, 2005-1997 Buick Park Avenue Rear, 1999-1995 Buick Riviera Rear, 2005-2000 Cadillac DeVille Rear, 2011-2006 Cadillac DTS Rear, 2004-1998 Cadillac Seville Rear
