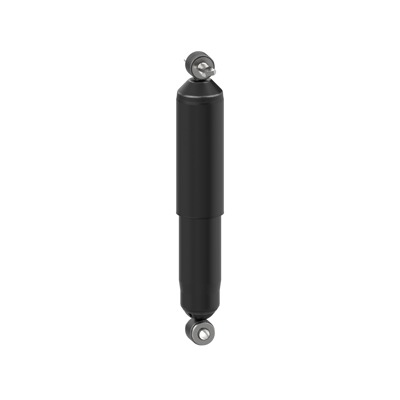

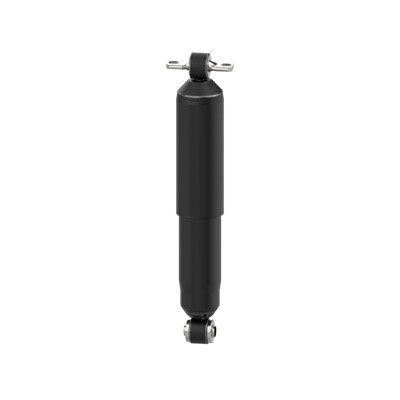

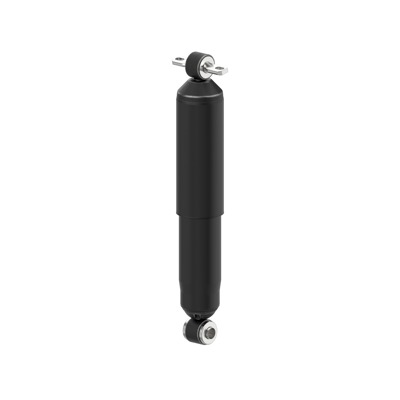

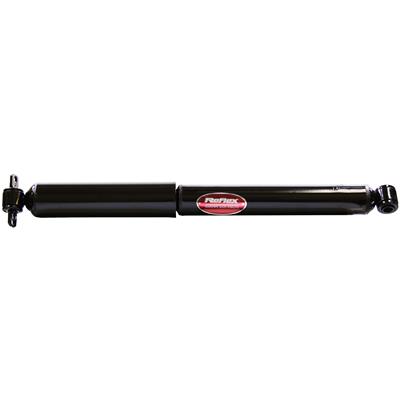

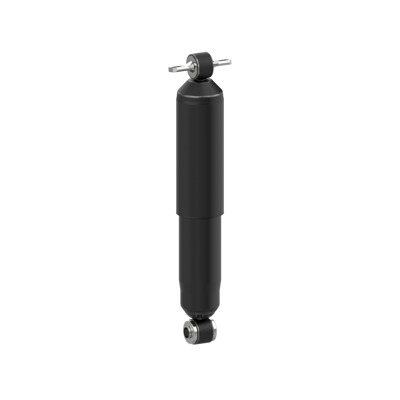

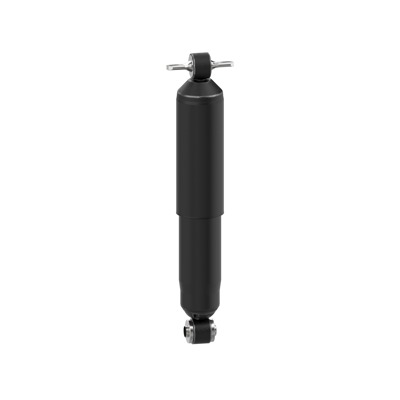

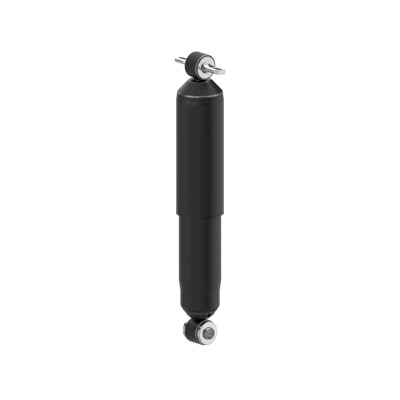

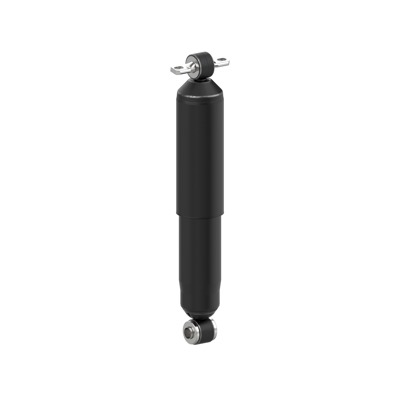

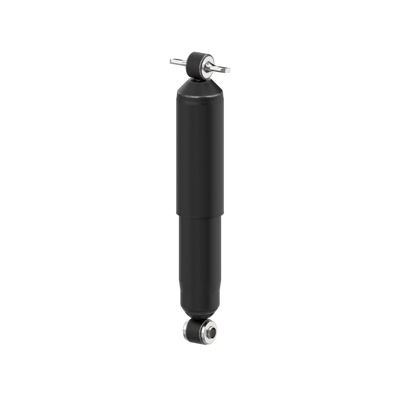

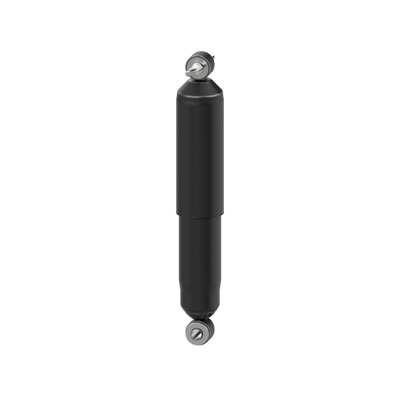

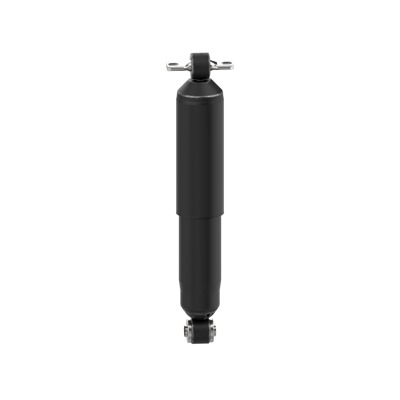

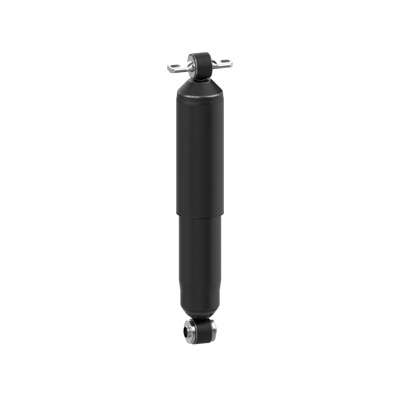

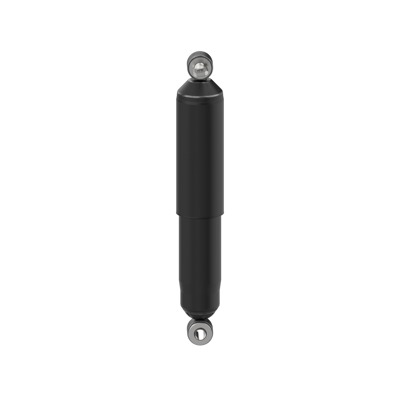

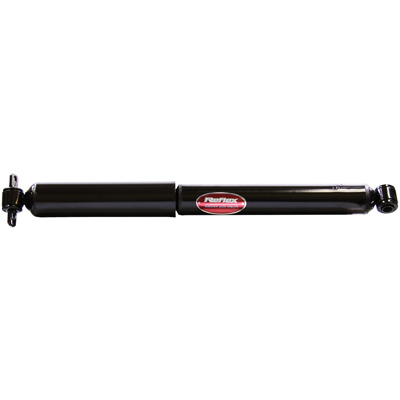

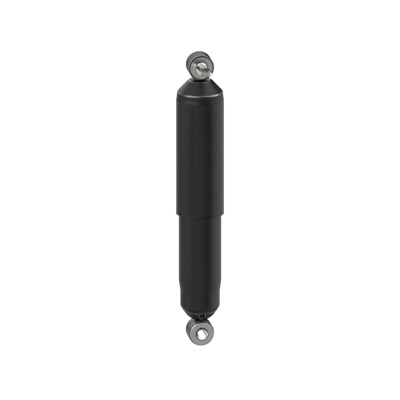

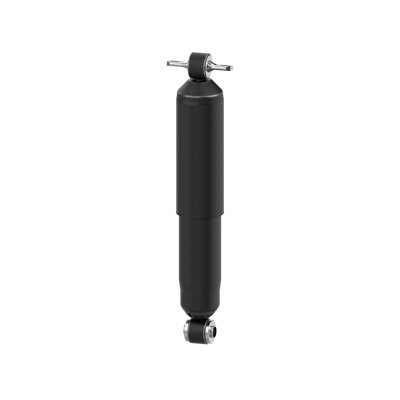

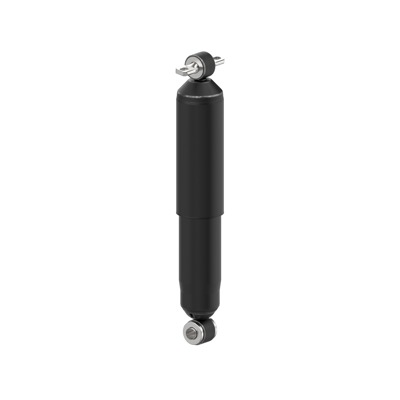

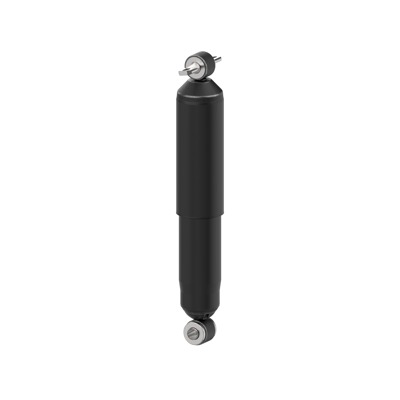

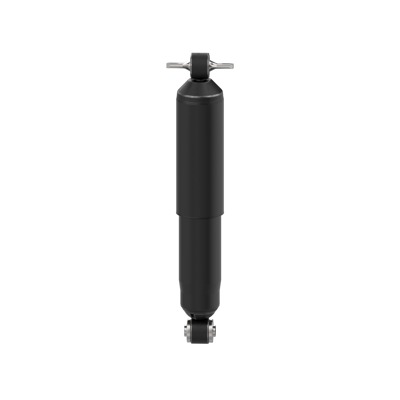

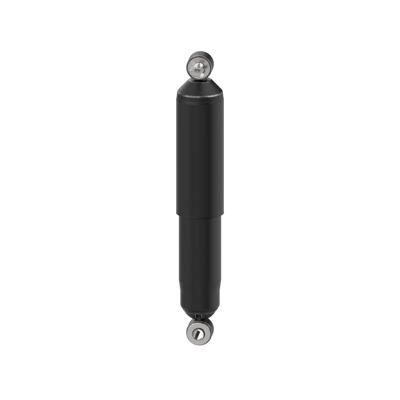

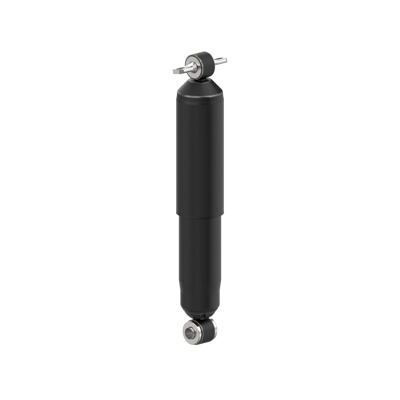

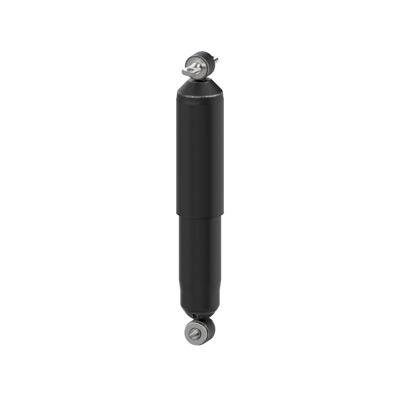

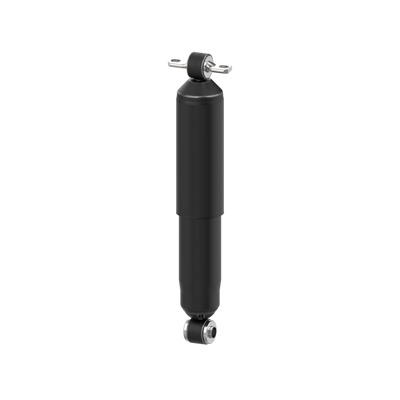

Monroe reflex light truck shock absorber
Part # 911086 | Line Code: MNE
brandNameImage
brandNameImage

$97.62

help
Not Fitted / Universal


Product Details
expand_less
Upper Mount Type XP7
Lower Mount Type LS47
Extended Length 23.75
Compressed Length 14.75
Travel Length 9
Dust Shield Yes
Upper Mounting Description Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Lower Mounting Description Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Dust Shield Included Yes
Max Year Covered 2019
Min Year Covered 1992
Most Popular Year 1999
Most Popular Make / Model Chevrolet Express 3500
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Product Grade Premium
Extended Bumper Stop Yes
Parts Pack(s) None
Tope de rebote comprimido No
Cubre polvo Yes
Bloqueo hidráulico extendido No
Accesorio(s) None
Tope de rebote extendido Yes
Heavy Duty Supplier Yes
Parts Pack None
Tipo de Montura Superior Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Total Part VIO 2035664
Upper Mounting Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Lower Mounting Type Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Lower Mount Code LS47
Upper Mount Code XP7
Part Description Shock Absorber
Internal Rebound Bumper Yes

Features & Benefits
expand_more
Ideal for vehicles with a higher center of gravity, Monroe® Reflex® light truck shock absorbers feature ASD valving technology that automatically adjusts the unit to absorb the impact, helping to reduce vehicle roll and dive.

Application Summary
expand_more

1999-1992 Chevrolet Suburban - K1500 1/2 Ton - 4WD Rear, 1999-1992 Chevrolet Suburban - K2500 3/4 Ton - 4WD Rear, 2000-1995 Chevrolet Tahoe Rear, 2018-1996 Chevrolet Van - Express 2500 3/4 Ton Rear, 2000-1995 GMC Yukon Rear
