Shocks & Struts

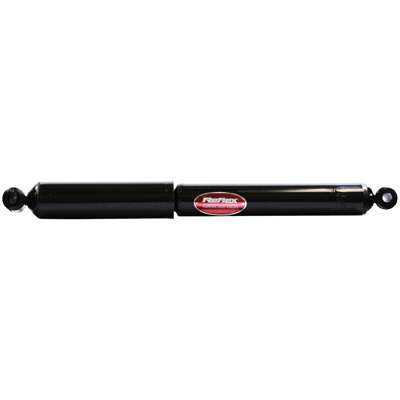

Monroe reflex light truck shock absorber
Part # 911085 | Line Code: MNE
brandNameImage
brandNameImage

$107.06
help
Not Fitted / Universal

Product Details
expand_less
Dust Shield Included Yes
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Center of Cross Pin
Gas Charged Yes
Dust Shield Yes
Travel Length 212.7
Compressed Length 355.6
Extended Length 568.3
Upper Mounting Description Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Lower Mounting Description Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Min Year Covered 1992
Most Popular Year 1999
Max Year Covered 2014
Most Popular Make / Model Chevrolet Tahoe
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Product Grade Premium
Extended Bumper Stop Yes
Parts Pack(s) None
Tope de rebote comprimido No
Cubre polvo Yes
Bloqueo hidráulico extendido No
Accesorio(s) None
Tope de rebote extendido Yes
Heavy Duty Supplier Yes
Parts Pack None
Upper Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Tipo de Montura Superior Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Total Part VIO 641596
Upper Mounting Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Lower Mounting Type Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Lower Mount Code LS47
Upper Mount Code XP7
Part Description Shock Absorber
Internal Rebound Bumper Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Part Terminology Suspension Shock Absorber

Features & Benefits
expand_more
Ideal for vehicles with a higher center of gravity, Monroe(R) Reflex(R) light truck shock absorbers feature ASD valving technology that automatically adjusts the unit to absorb the impact, helping to reduce vehicle roll and dive.

Application Summary
expand_more

1992-1999 Chevrolet C1500 Suburban (Rear); 1992-1999 Chevrolet C2500 Suburban (Rear); 1996-2014 Chevrolet Express 1500 (Rear); 1995-2000 Chevrolet Tahoe (Rear) (Doors: 4 & Liter: 5.7 & Engine(ci): 350 & Cylinder: 8 & Block: V & Bore(in): 4.00 & Bore(mm): 101.6 & Stroke(in): 3.48 & Stroke(mm): 88.5 & Drive: RWD); 2003-2004 Chevrolet Cargo Van (Rear); 1992-1999 GMC C1500 Suburban (Rear); 1992-1999 GMC C2500 Suburban (Rear); 1996-2014 GMC Savana 1500 (Rear); 1995-1999 GMC Yukon (Rear) (Doors: 4 & Drive: RWD)
