| Ring Gear Thickness | 9.75 |
| Heavy Duty Supplier | Yes |
| Tooth Quantity | 164 |
| Flywheel Cup Depth/Step Height | 0 |
| Number of teeth, starter ring gear | 164 |
| Dowel hole diameter | 0.3031 |
| Crank Hole Dia. | 11.45 |
| Flywheel friction surface outer diameter | 294 |
| Centering diameter / dowel hole | 12.3622 |
| Ring Gear Major Dia. | 361.7 |
| Dowel Hole Pattern | 5 |
| Overall Casting O.D. | 350 |
| Flywheel Friction Surface Inner diameter | 207.58 |
| Bolt hole PCD crankshaft | 76 |
| Flywheel Inner Diameter | 8.172 |
| Flywheel Thickness [mm] | 31.3 |
| Ring Gear Chamfer Side | Not available |
| Flange Thickness | 0.3937 |
| Crank To Friction Surface | 31.4 |
| I.D. for Pilot | 44.23 |
| Number of Teeth | 164 |
| Bolt Hole Pattern | 2 |
| Flywheel Diameter | 11.575 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Not available |
| Ring Gear Mounting O.D. | 332 |
| Number Of Mounting Bores | 2 |
| Outside Diameter | 361.7 |
| Bolt hole PCD clutch pres.plte | 12.3622 |

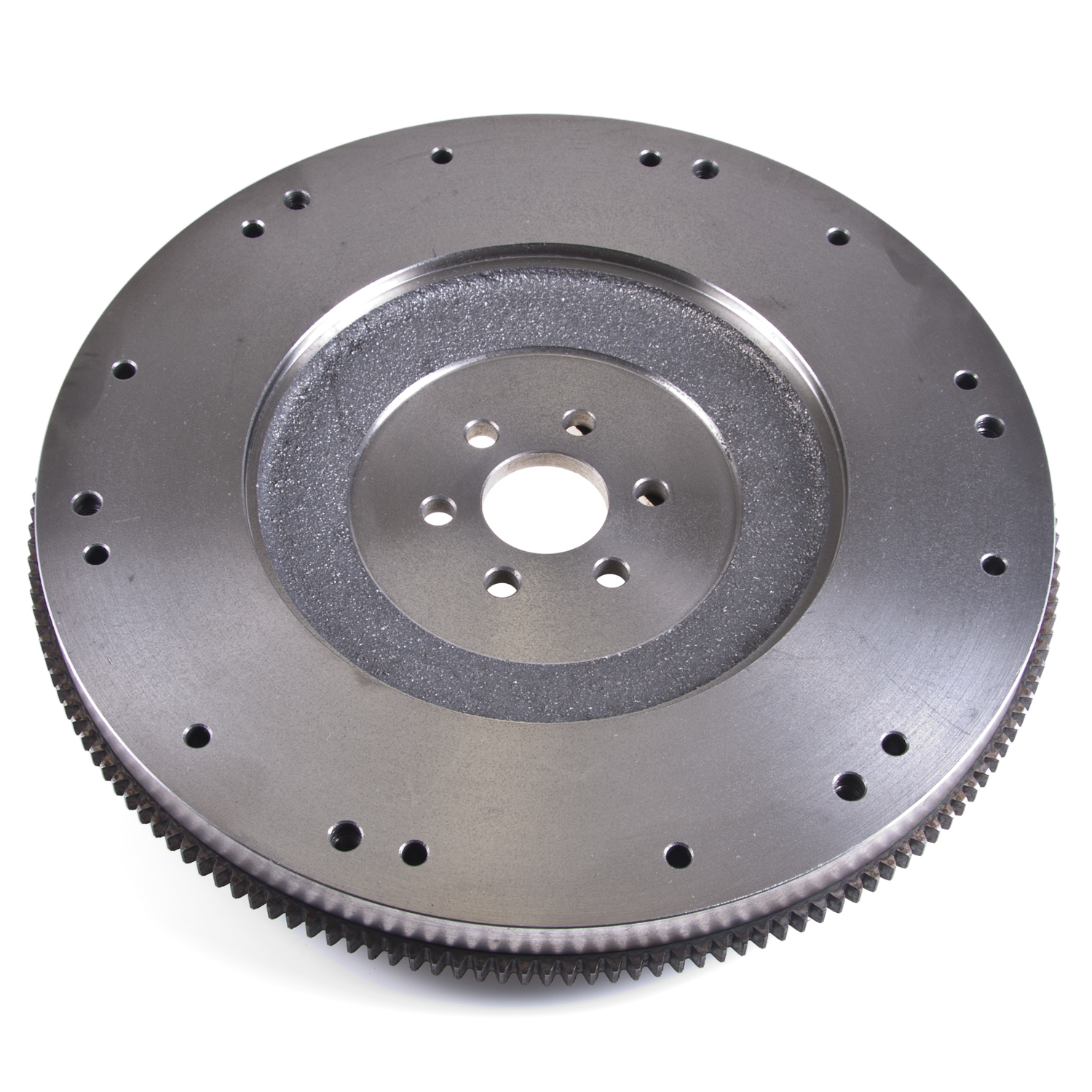

| Part Terminology | Clutch Flywheel |
