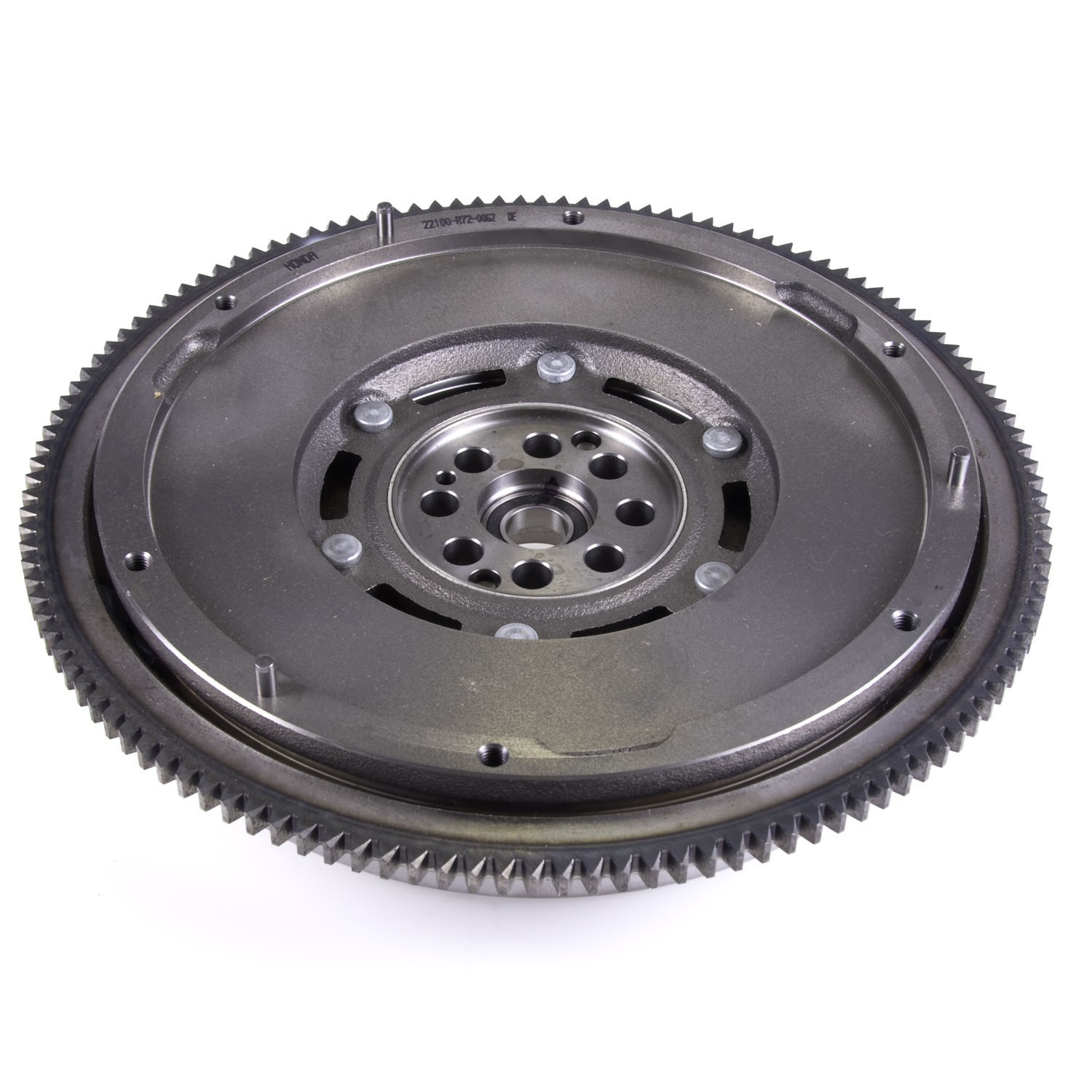

LuK DMF Manu
Part # DMF105 | Line Code: LUK
brandNameImage
brandNameImage

$693.79
$693.79
error
Not Fitted

Product Details
expand_less
Ring Gear Thickness 8.8
Cup depth, secondary flywheel -0.3071
Heavy Duty Supplier Yes
Tooth Quantity 126
Flywheel Cup Depth/Step Height -0.307
Number of teeth, starter ring gear 126
Dowel hole diameter 6
Flywheel friction surface outer diameter 9.4488
Crank Hole Dia. 0.4921
Centering diameter / dowel hole 260
Ring Gear Major Dia. 320.04
Dowel Hole Pattern 5
Overall Casting O.D. 324.3
Flywheel Friction Surface Inner diameter 155
Bolt hole PCD crankshaft 2.4803
Flywheel Inner Diameter 6.102
Flywheel Thickness [mm] 71.4
Crank To Friction Surface 50.4
I.D. for Pilot 37
Number of Teeth 126
Ring Gear To Friction Surface 11.7
Bolt Hole Pattern 2
Torque Capacity DMFW 411
Flywheel Diameter 9.449
Ring Gear Mounting O.D. 281.4
Number Of Mounting Bores 24
Ring Gear Number L-09180-0262-01
Outside Diameter 320.04
Bolt hole PCD clutch pres.plte 260
Part Terminology Clutch Flywheel

Features & Benefits
expand_more
Over 30 years ago, Schaeffler engineers under the LuK product brand developed a revolutionary technology for damping torsional vibrations in the drivetrain : the dual mass flywheel (DMF). Unlike a conventional flywheel, the DMF consists of two masses which are mounted to rotate against each other. A damping system in the form of arc springs is integrated into the DMF. Thus, it absorbs the torsional vibrations of the engine almost completely.

Application Summary
expand_more

Acura TL 2007-2008 (V6, 3.5L), Honda Accord 2008-2017 (V6, 3.5L)
