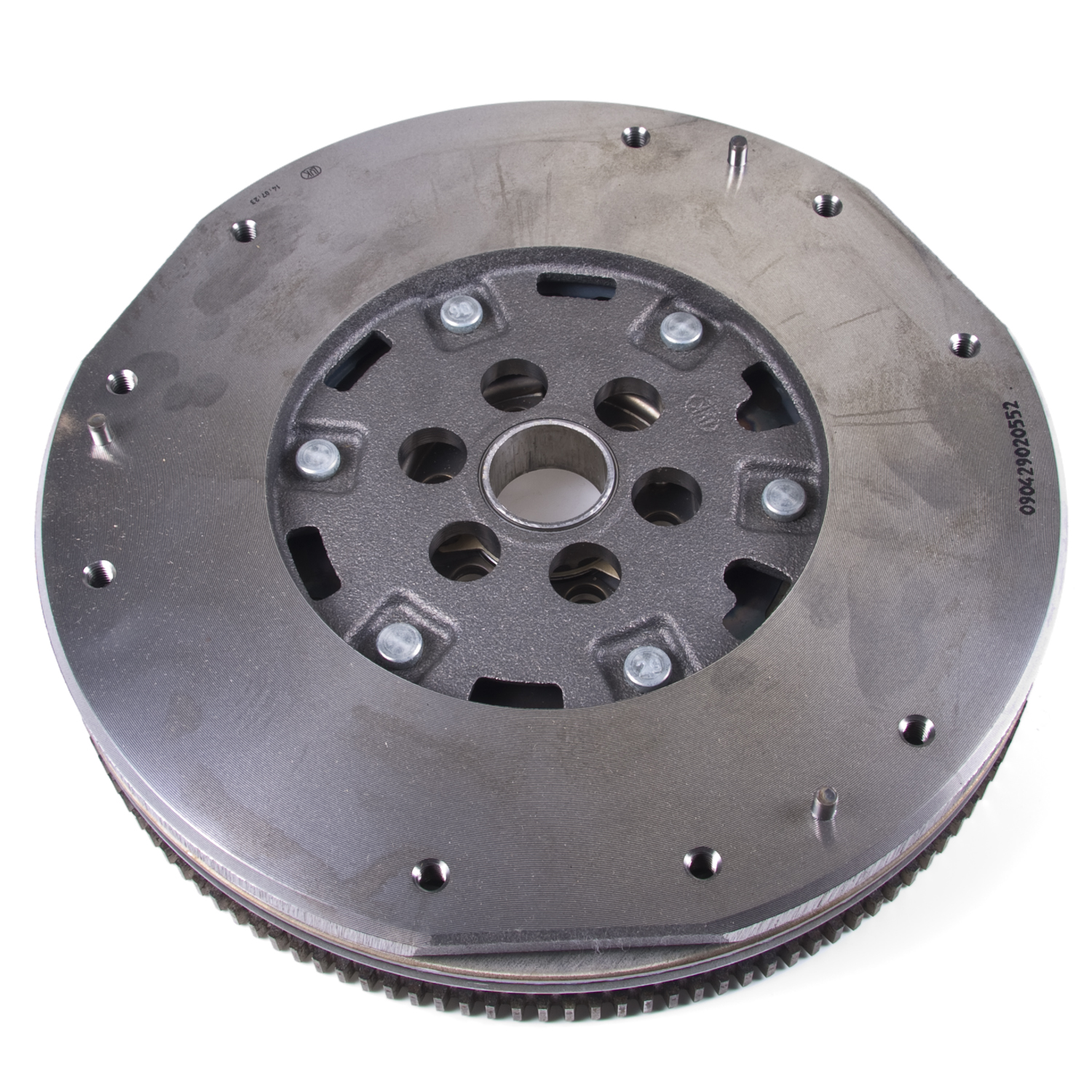

Oe quality dual mass flywheel
Part # DMF100 | Line Code: LUK
brandNameImage
brandNameImage

$746.80
$746.80
error
Not Fitted

Product Details
expand_less
Cup depth, secondary flywheel 0
Ring Gear Thickness 10.2
Heavy Duty Supplier Yes
Tooth Quantity 136
Flywheel Cup Depth/Step Height 0.256
Torque Capacity Limiter 0
Number of teeth, starter ring gear 136
Dowel hole diameter 6
Flywheel friction surface outer diameter 230
Crank Hole Dia. 11.2
Centering diameter / dowel hole 255
Ring Gear Major Dia. 287.871
Overall Casting O.D. 292.8
Dowel Hole Pattern 5
Flywheel Friction Surface Inner diameter 157
Bolt hole PCD crankshaft 66
Flywheel Thickness [mm] 57.1
Flywheel Inner Diameter 6.181
Flange Thickness 11.8
Crank To Friction Surface 38.5
I.D. for Pilot 32.2
Ring Gear To Friction Surface 46.1
Number of Teeth 136
Torque Capacity DMFW 263
Bolt Hole Pattern 21
Flywheel Diameter 9.055
Ring Gear Mounting O.D. 263.67
Ring Gear Number L-09180-0206-01
Outside Diameter 287.871
Has Dowel Pins with Dowel Pins
Bolt hole PCD clutch pres.plte 255
Part Terminology Clutch Flywheel

Features & Benefits
expand_more
Over 30 years ago, Schaeffler engineers under the LuK product brand developed a revolutionary technology for damping torsional vibrations in the drivetrain : the dual mass flywheel (DMF). Unlike a conventional flywheel, the DMF consists of two masses which are mounted to rotate against each other. A damping system in the form of arc springs is integrated into the DMF. Thus, it absorbs the torsional vibrations of the engine almost completely.

Application Summary
expand_more

Nissan Cube 2009-2014 (L4, 1.8L), Nissan Sentra 2007-2011/2013-2019 (L4, 1.8L; L4, 2.0L), Nissan Versa 2007-2012 (L4, 1.8L)
