U & CV Joints & Drive Shaft

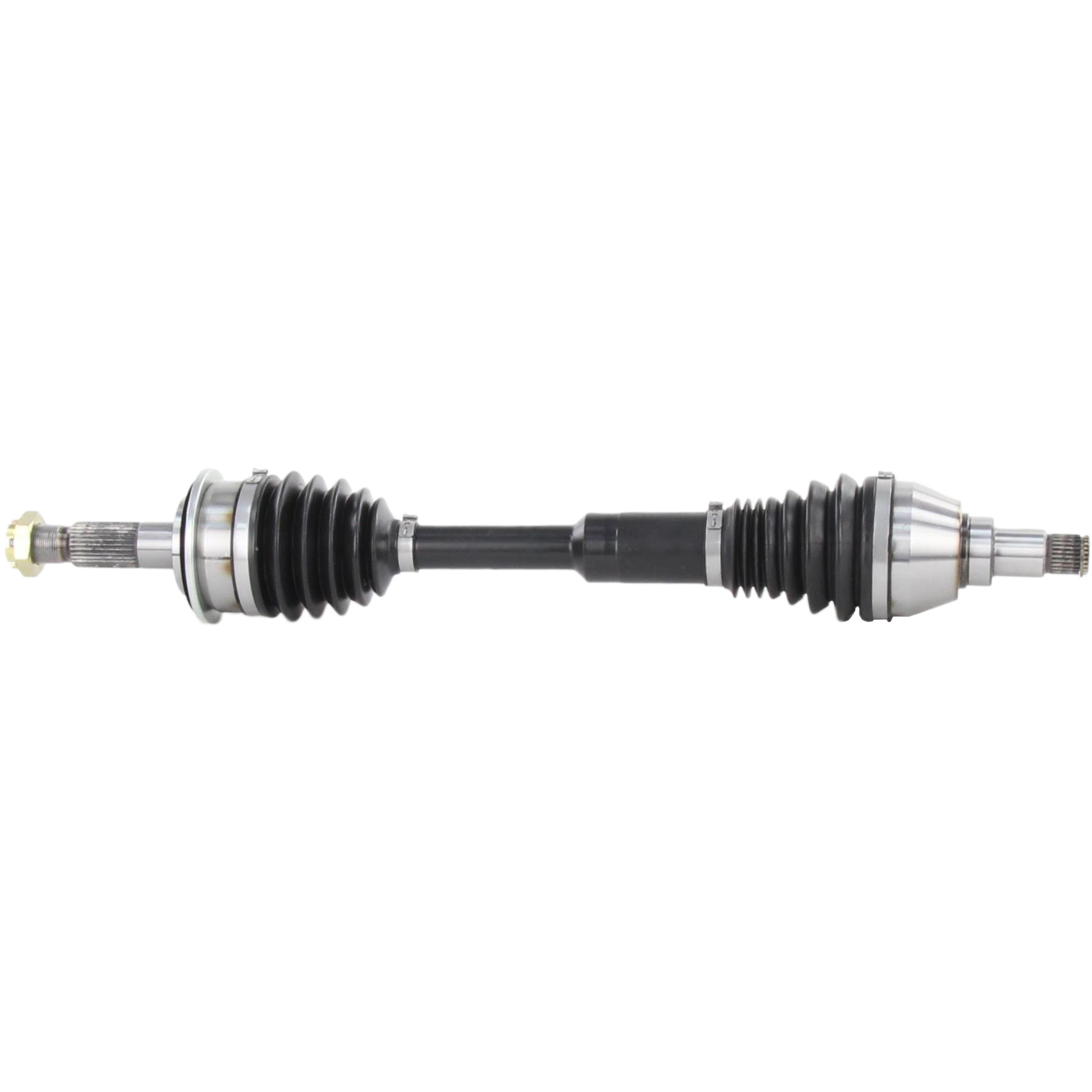

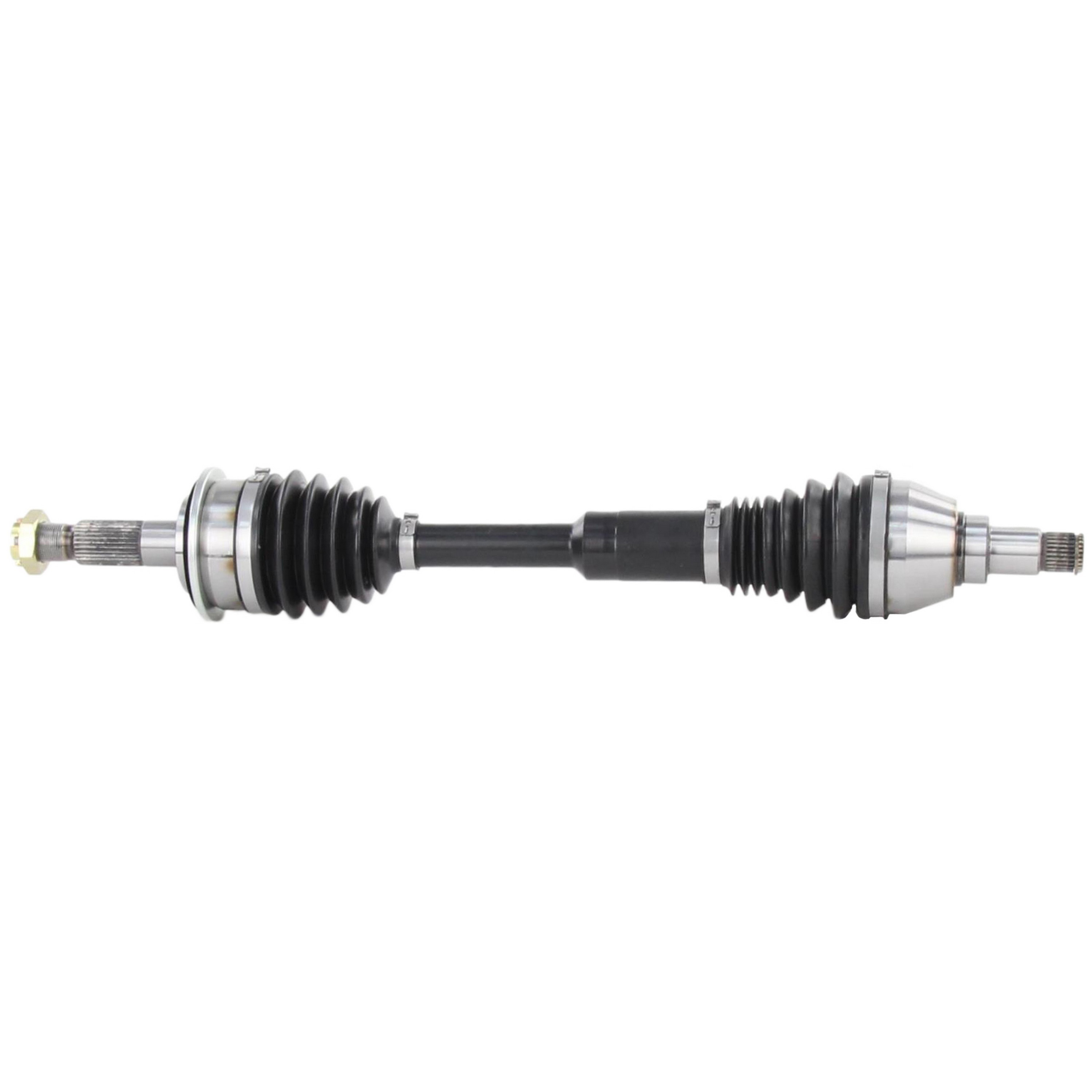

Extended Travel CV Axle Shaft
Part # TO8088XTT | Line Code: TRA
brandNameImage
brandNameImage

$309.23
$309.23
error
Not Fitted

Product Details
expand_less
Outboard Joint Type Conventional
Inboard Joint Type Male
Overall Compressed Length (in) 27.8
Inboard Shaft Connection Style Spline
Number of Bolt Holes 0
Number Of Outboard Joint Bolt Holes 0
Number of Outboard Splines 30
Number Of Inboard Splines 27
Axle Nut Hex Size (mm) 41
Axle Bolt Thread Size N/A
Axle Bolt Length (mm) N/A
ABS Ring Type N/A
Axle Bolt Hex Size (mm) N/A
Axle Nut Hex Size (in) 1.61
Axle Nut Length (in) 1.85
ABS Ring Tooth Count 0
Axle Nut Locking Type Cotter Pin
Number Of Inboard Shaft Bolts 0
New Or Remanufactured New
Inboard Bolt Head Size (in) N/A
Axle Nut Head Type Hex
Outboard Bolt Head Size (in) N/A
Outboard Joint Bolt Thread Size N/A
Inboard Bolt Length (in) N/A
ABS Tone Ring Included No
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Inboard Bolt Head Type N/A
Inboard Bolt Thread Size N/A
Inboard Bolt Head Size (mm) N/A
Inboard Bolt Length (mm) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Spline
Axle Nut Height (mm) 19
Overall Compressed Length (mm) 706
Axle Nut Included Yes
Grade Type Premium
Boot Material CR
Axle Nut Socket Size 41
Number Of Outboard Shaft Bolts 0
Number Of Inboard Joint Bolt Holes 0
Axle Nut Height (in) .75
Axle Nut Thread Size M2x1.5
Inboard Joint Boot Material Thermoplastic
Outboard Joint Boot Material Thermoplastic
Axle Nut Length (mm) 48
Part Terminology CV Axle Shaft

Features & Benefits
expand_more
Extended Travel CV Axles are designed with a sliding center bar that provides up to 44mm more travel than an OEM CV shaft. Additionally, the CV joints can achieve a up to a 47 degree articulation angle compared to a maximum 23 degree articulation angle on a typical OE CV joint.

Application Summary
expand_more

Toyota
