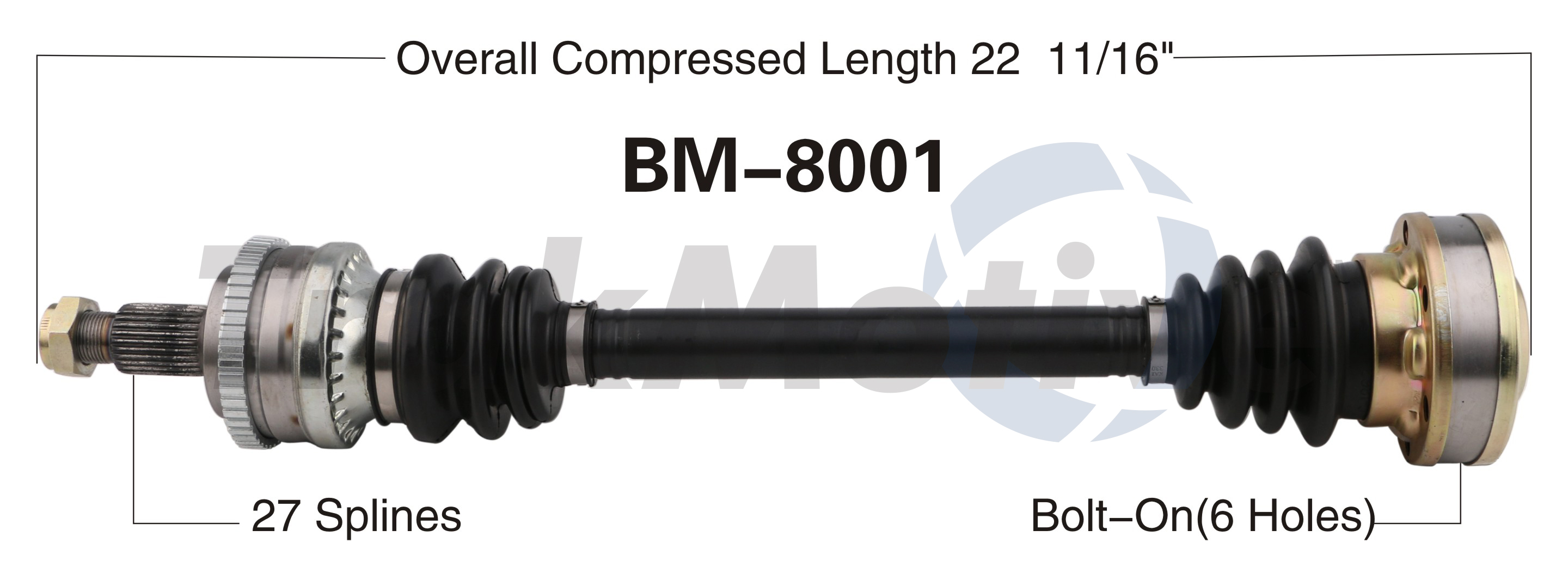

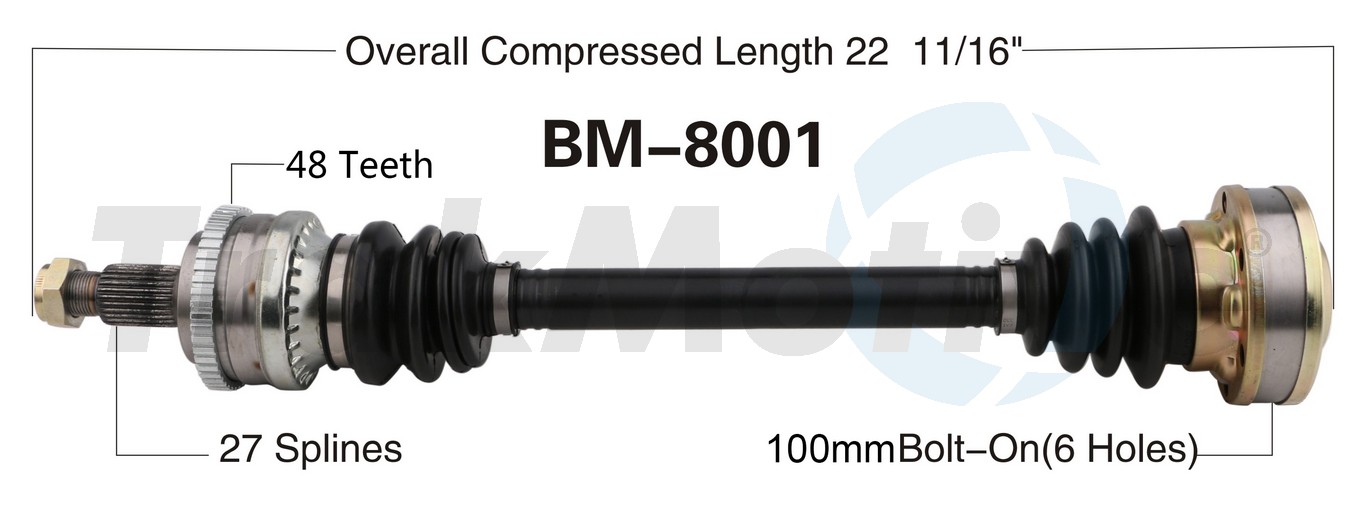

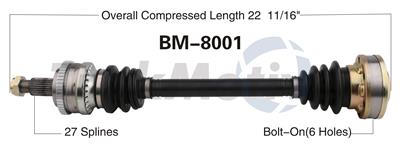

Cv axle shaft
Part # BM8001 | Line Code: TRA


Not Fitted / Universal

Product Details
Outboard Joint Type Conventional
Inboard Joint Type Bolt-On
ABS Tone Ring Included Yes
Inboard Bolt Length (in) 2 1/6
Inboard Bolt Head Type Allen
Inboard Bolt Length (mm) 55
Inboard Bolt Thread Size M10*1.5
Inboard Bolt Head Size (mm) 8
Number Of Inboard Shaft Bolts 6
Overall Compressed Length (mm) 576
Overall Compressed Length (in) 22.68
Axle Nut Height (in) 3/5
Number Of Inboard Joint Bolt Holes 6
Axle Nut Hex Size (mm) 32
ABS Ring Type Toothed
Number of Outboard Splines 27
Axle Nut Thread Size M22*1.5
Number Of Outboard Joint Bolt Holes N/A
Number Of Inboard Splines N/A
Axle Bolt Thread Size N/A
Axle Bolt Length (mm) N/A
Axle Bolt Hex Size (mm) N/A
ABS Ring Tooth Count 48
Inboard Bolt Head Size (in) 1/3
Axle Nut Locking Type Self-Lock
New Or Remanufactured New
Boot Material Neoprene
Axle Nut Head Type Hex
Outboard Bolt Head Size (in) N/A
Number of Bolt Holes N/A
Number Of Outboard Shaft Bolts N/A
Outboard Joint Bolt Thread Size N/A
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Spline
Axle Nut Height (mm) 15
Inboard Shaft Connection Style Bolt-On
Axle Nut Length (mm) 37
Axle Nut Length (in) 1 1/2
Axle Nut Hex Size (in) 1 1/4
Axle Nut Included Yes

Features & Benefits
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:1007 and TS 16949:2009 Certified Company
