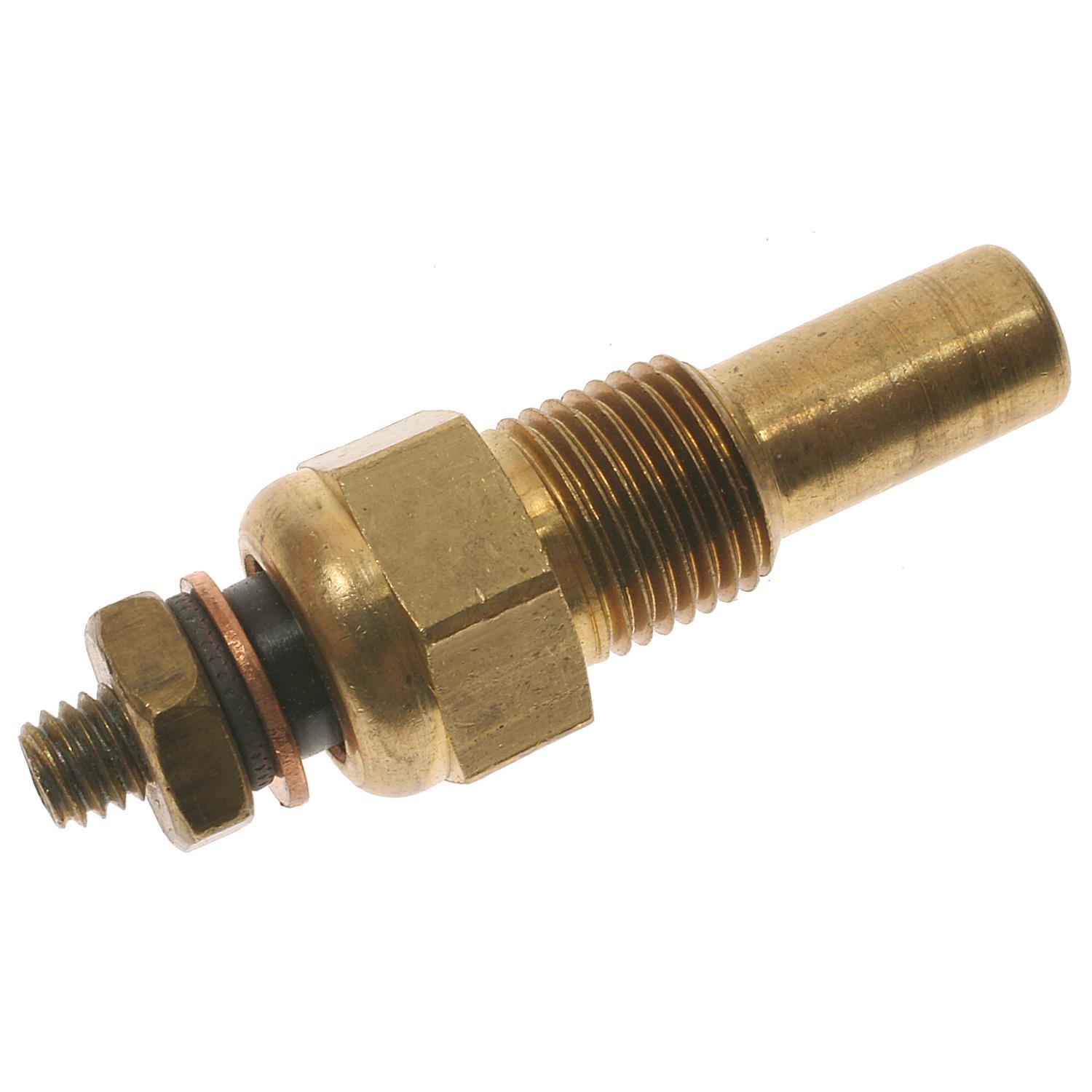

Temperature sender with gauge
Part # TS672 | Line Code: BLS
brandNameImage
brandNameImage

$14.17
help
Not Fitted / Universal

Product Details
expand_less
California Proposition 65 WARNING: This product contains a chemical known to the State of California to cause cancer.
Connector Type Bolt On
Connector Gender Male
Attachment Method Screw-in
Voltage 12
Temperature Rating Min 141 Deg. F (21.7 ohms) Max 211.4 Deg. F (26.5 ohms)
Color Gold
Finish Brass
Color/Finish Gold
Connector Quantity 1
Part Terminology Engine Coolant Temperature Sender

Features & Benefits
expand_more
In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller. In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature. Designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance. Factory-calibrated to make electrical contact at the specified lower-temperature set point. Robust design and high grade materials meet the stringent demands of today's service professional.
