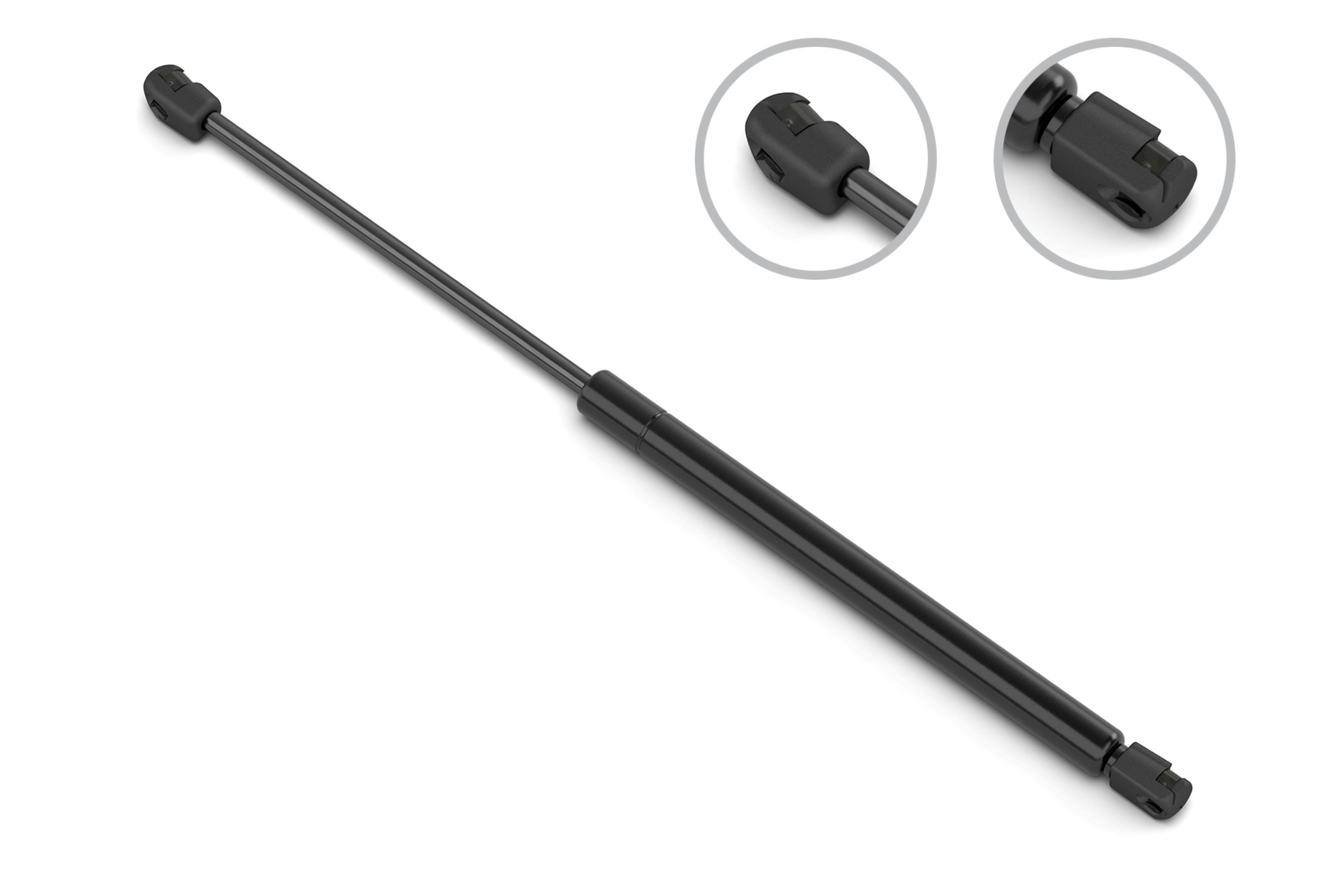

Stabilus Hood Lift Support
Part # 4B-965360 | Line Code: STL
brandNameImage
brandNameImage

$31.97
$31.97
error
Not Fitted

Product Details
expand_less
End 1 Type Ball Socket
End 2 Type Ball Socket
Extended Length 17.28
Compressed Length 10.77
Type Gas
Inner Shaft Diameter 8
End 1 Material Nylon
End 2 Material Nylon
Cylinder Outside Diameter 18
Mount Hole Diameter At Rod End 0.394
Attachment End Type PLASTIC SOCKET
Rod Diameter 0.315
Maximum Compression Force 225
Maximum Force 51
Tube Diameter 18.00
Mounting Hardware Included No
Stroke Length 6.51
Hardware Kit NO
Application Specific Y
Agricultural Equipment N
Snowmobile N
Personal Watercraft N
Marine N
Small Engine N
High Performance N
Engine Specific N
Transmission Specific N
VIO 551,526
IndustrialOff Highway N
NonVehicle Specific N
Heavy Truck N
MotorCycleRV N
Medium Truck N
Rod End Attachment Dia (MM) 10
Rod End Attachment Dia (IN) 0.394
Rod Connection PLASTIC SOCKET
Shaft Connection PLASTIC SOCKET
0.315 Y
Tube Dia (IN) 0.709
Tube Connection PLASTIC SOCKET
Shaft 0.315
Body 0.709
Rod Dia (IN) 0.315
Tube End Attach Dia (mm) 8
Tube End Attach Dia (IN) 0.315
Force Lbs 51
Force (N) 225
10.768 Y
CarLight Truck Y
N Y
10.0 N
Prop 65 Affected Yes
Prop 65 Chemical DEHP
Prop 65 Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl) phthalate (DEHP), which is known to the State of California to cause canc
Part Terminology Hood Lift Support

Features & Benefits
expand_more
Lift-O-Mat by Stabilus- Precision Control with Dynamic Damping. The Lift-O-Mat by Stabilus sets a new standard in controlled motion, featuring dynamic damping technology for refined, adaptable performance. Instead of relying on an oil column, this advanced lift support utilizes a longitudinal groove—known as a velocity manifold—pressed into the tube wall, allowing gas to flow around the piston. This groove’s depth and geometry control extension speed and are highly tunable to meet the specific requirements of any application. Designed for Smooth Operation The groove profile is expertly crafted to gradually narrow toward the end of the stroke, ensuring a gentle, controlled stop with minimal impact. Built from high-quality materials and fine-tuned for smooth, reliable function, the Lift-O-Mat offers OE performance and design, making it an ideal choice across industries requiring precision control, from automotive to ergonomic equipment and beyond. Why Choose Lift-O-Mat? - Dynamic Damping: Continuous gas flow around the piston, controlled by a custom groove, allows precision-tuned extension. - Highly Tunable: Groove depth and geometry can be tailored to achieve optimal performance for each application. - Built to Last: High-quality materials and expert engineering ensure reliability and durability. Choose Lift-O-Mat by Stabilus for a refined, dynamic damping solution that delivers consistent, application-specific performance and a smooth, gentle stop every time.

Application Summary
expand_more

FORD: 17-21 F-250 SUPER DUTY, 17-21 F-350 SUPER DUTY, 17-21 F-450 SUPER DUTY, 17-21 F-550 SUPER DUTY
