| Outlet Diameter | 1.375 |
| Inlet Diameter | 1.375 |
| Transmission Oil Cooler Fitting Type | Hose Barb 10mm |
| Mounting Type | Flange |
| Frame Included | No |
| Engine Oil Cooler Included | No |
| Down Flow Or Cross Flow Type | Cross Flow |
| Internal Engine Oil Cooler | No |
| Internal Transmission Oil Cooler | Yes |
| Core Row Quantity | 1 |
| Transmission Oil Cooler Plate Quantity | 5 |
| Core Material | Aluminum |
| Transmission Oil Cooler Included | Yes |
| Tank Material | Plastic |
| Core Thickness | 1 |
| Inlet Header Width | 2 |
| Transmission Oil Cooler Type | Plated |
| Outlet Header Width | 2 |
| Core Height | 22.625 |
| Core Width | 25.875 |
| Inlet Header Length | 26.875 |
| Outlet Header Length | 26.875 |
| Transmission Oil Cooler Distance between Fittings | 9.8125 |
| Outlet Location | Bottom left |
| Inlet Location | Top Right |
| Heavy Duty Supplier | Yes |
| California_Prop 65 Message | Y |

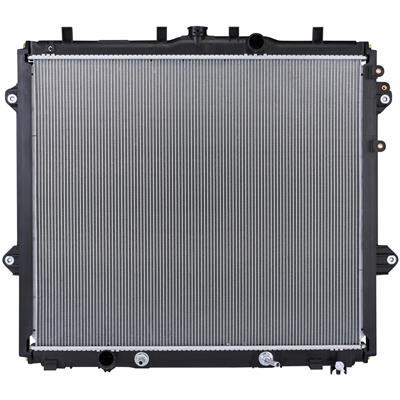

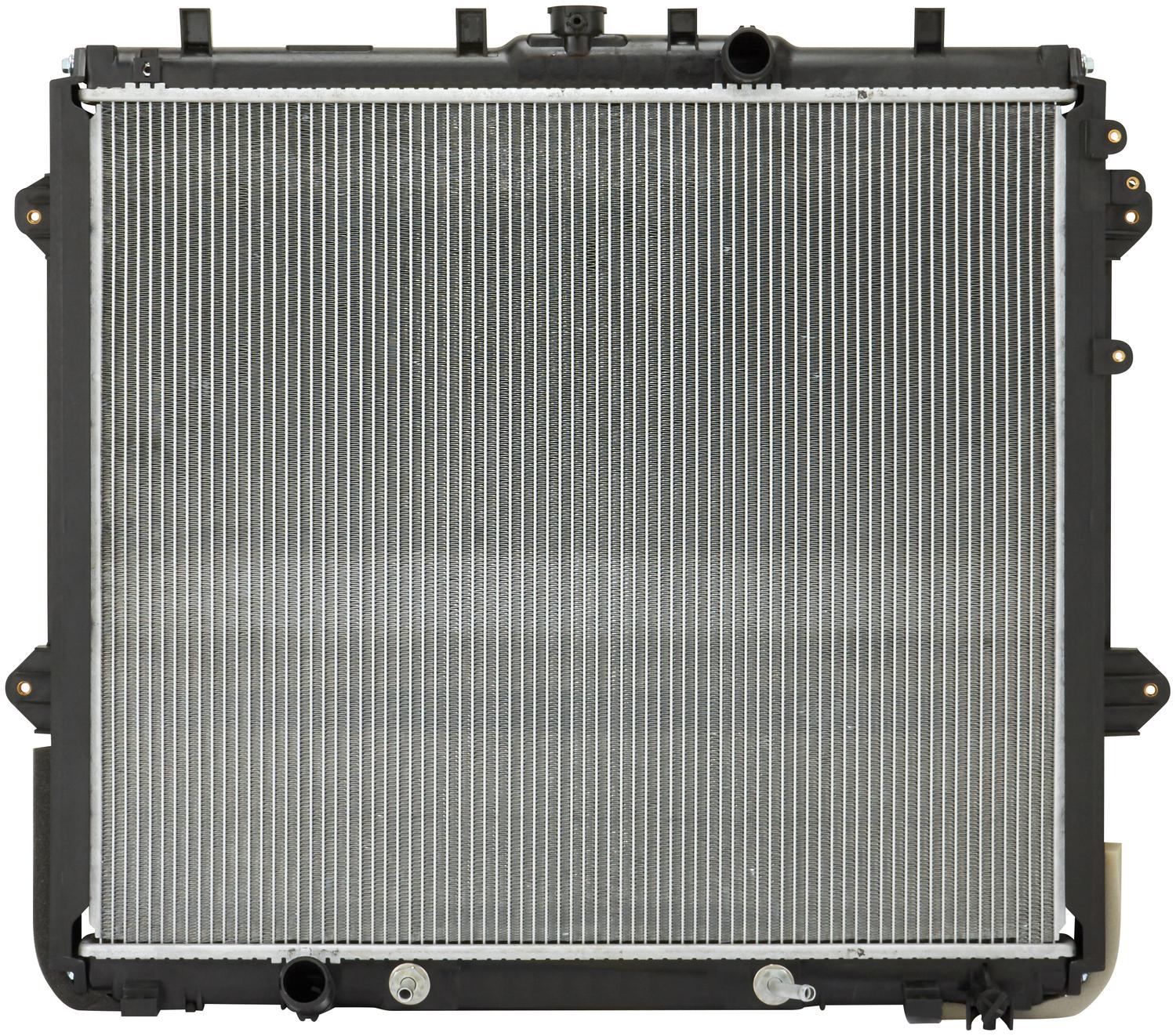

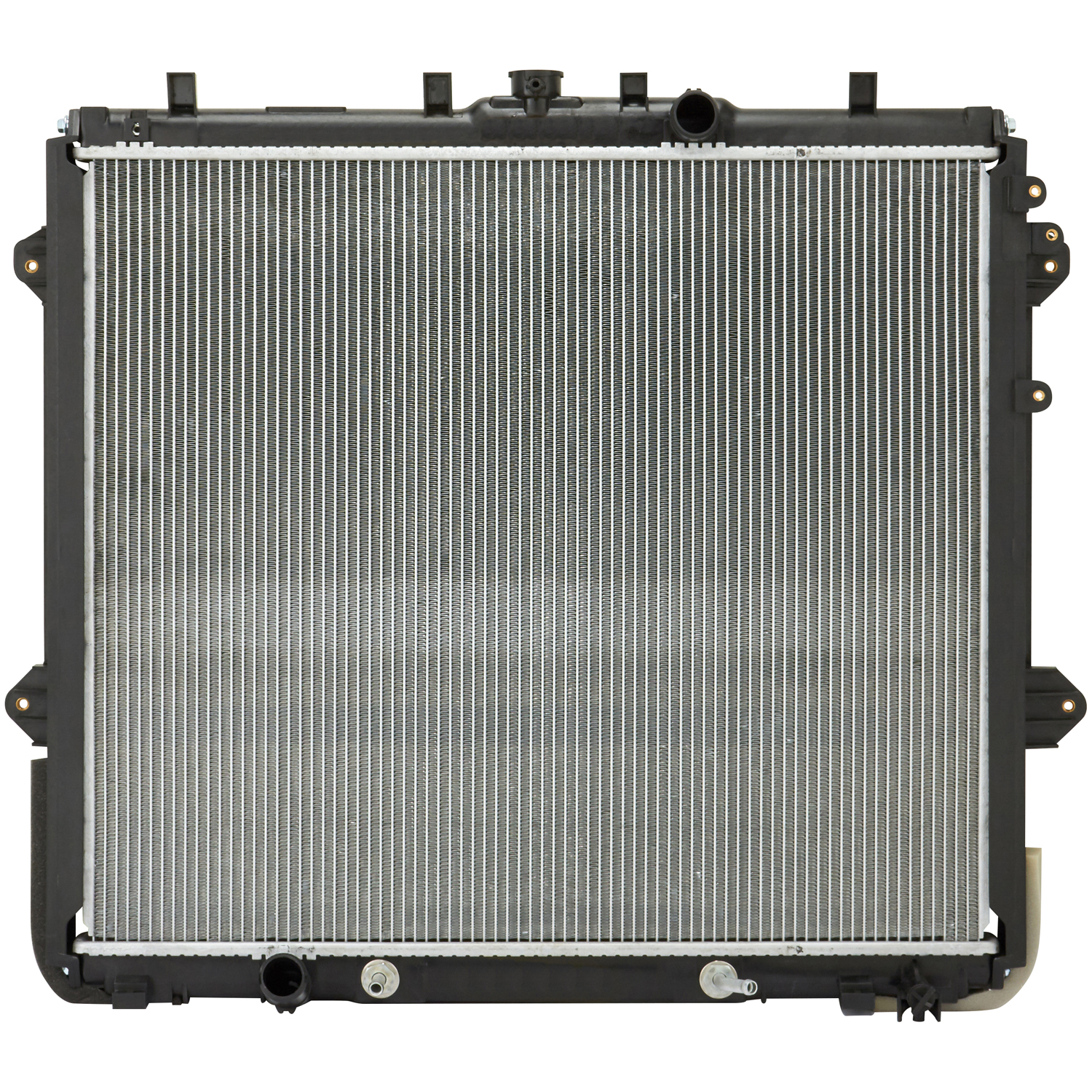

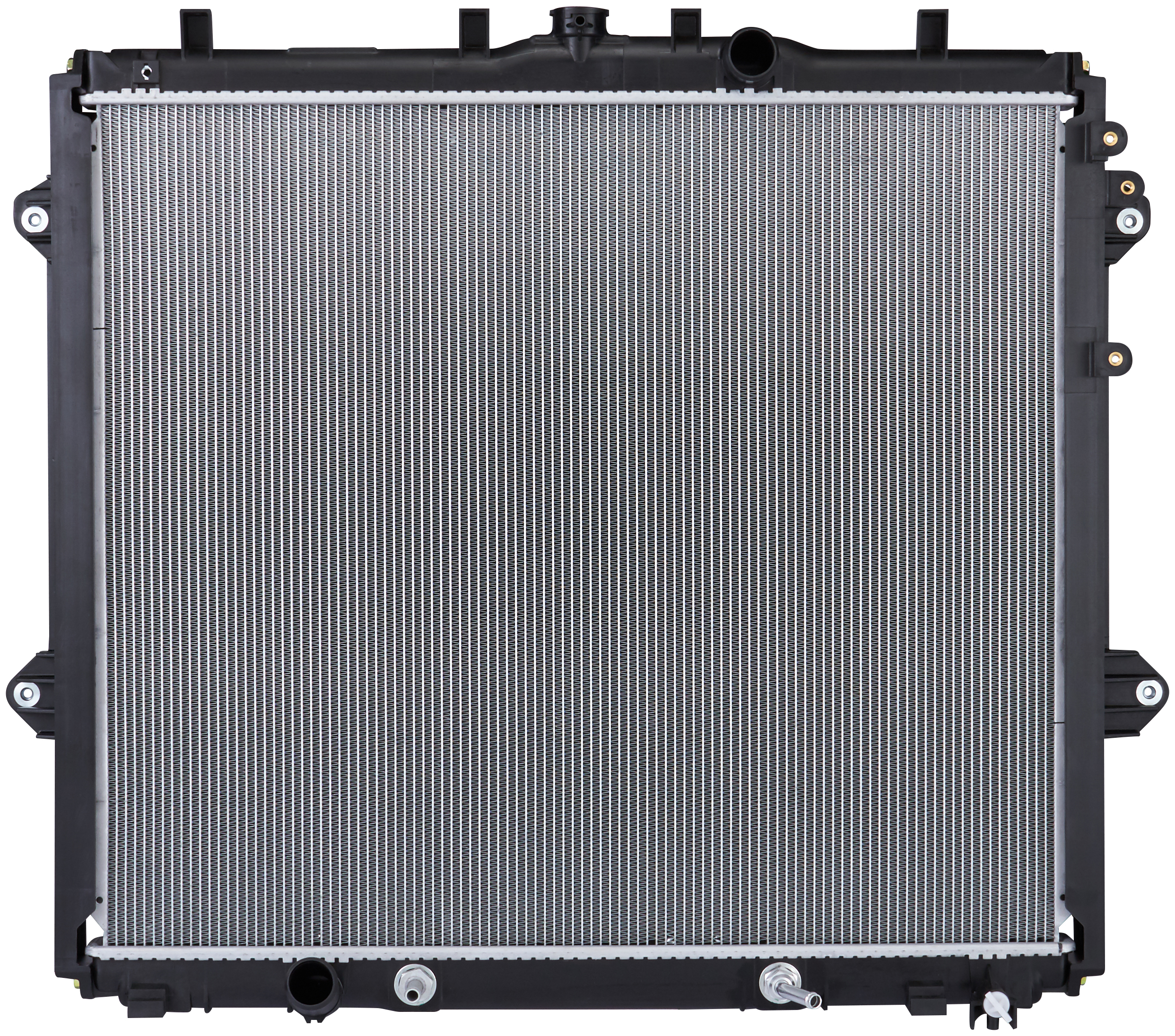

| Part Terminology | Radiator |
