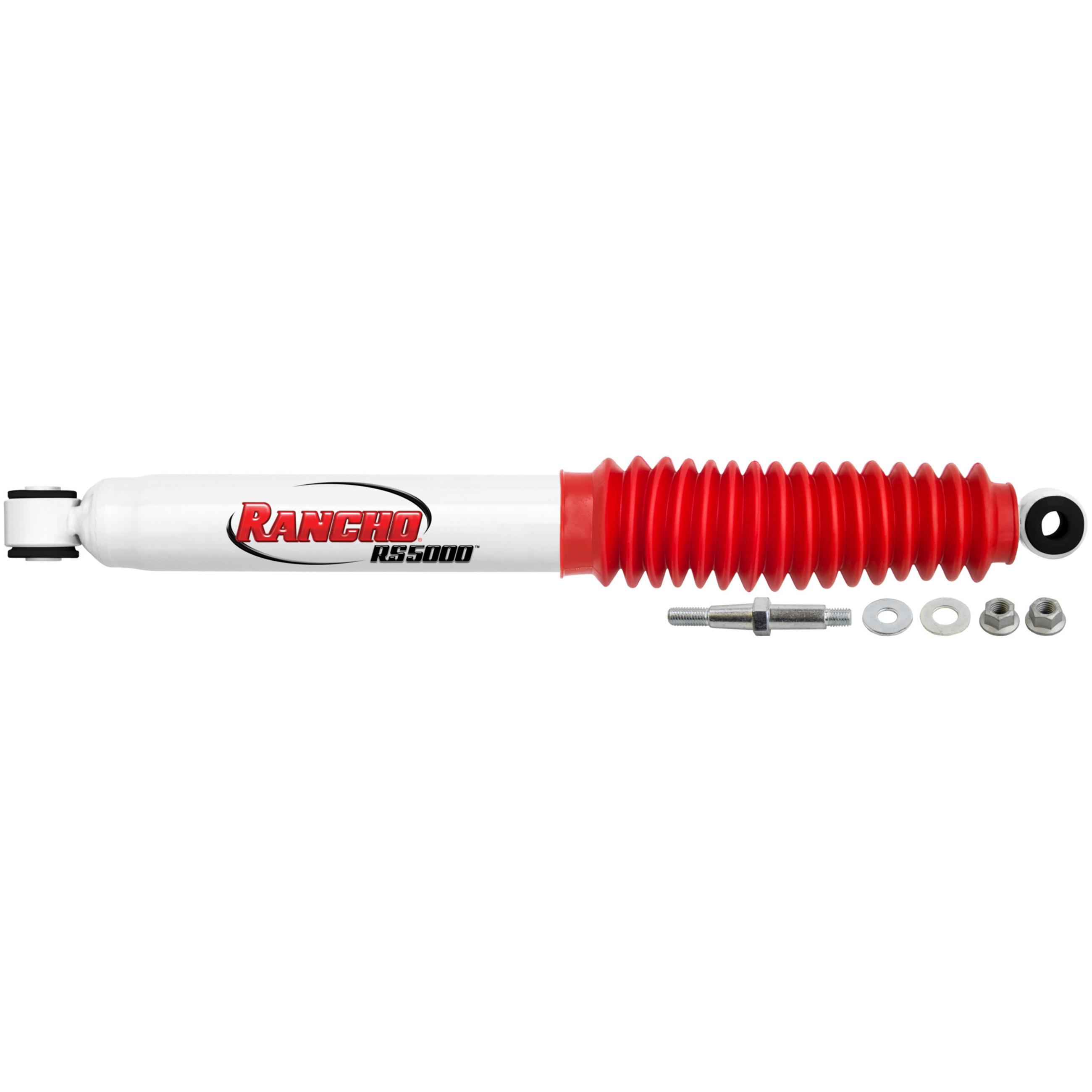

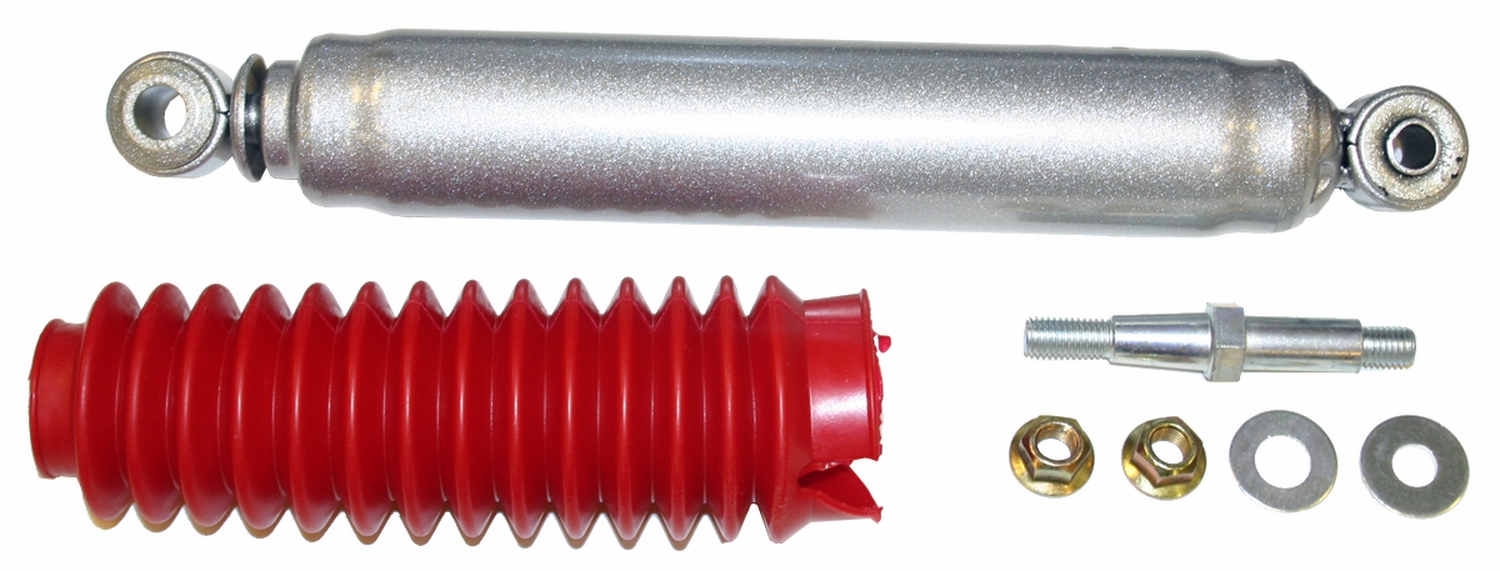

Rs5000 steering damper
Part # RS5412 | Line Code: MNE
brandNameImage
brandNameImage

$135.06

help
Not Fitted / Universal


Product Details
expand_less
Extended Length 23.36
Compressed Length 14.15
Upper Mounting Code L1
Upper Mounting Description Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Lower Mounting Code LS24
Lower Mounting Description Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL
Upper Mount Type Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Dust Shield Included Yes
Min Year Covered 2000
Most Popular Year 2001
Max Year Covered 2010
Most Popular Make / Model Dodge Ram 1500
Extended Bumper Stop No
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Product Grade Premium
Cubre polvo Yes
Reserve Tube Diameter 2.188
Viaje 9.210
Accesorio(s) P01368
Parts Pack(s) P01368
Tipo de Montura Superior Loop Bushing Mount - 5/8" Bushing ID X 1.5/16" Bushing OAL
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL
Parts Pack P01368
Total Part VIO 1258248
Reserve Tube Diameter (INCH) 2.188
Compressed Length (INCH) 14.15
Extended Length (INCH) 23.36
Travel Length (INCH) 9.21
Travel Length 9.21
Upper Mount Code L1
Lower Mount Code LS24
Body Diameter 2.188
Part Description Steering Damper
Hydraulic Lockout No
Includes Bump Stop No
Internal Rebound Bumper No
Lower Mount Type Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.3/8" Sleeve OAL
Dust Shield Yes

Features & Benefits
expand_more
Ideal for off-road driving, towing and street applications, Rancho® RS5000® steering stabilizers enhance a vehicles performance and minimize on- and off-road driver fatigue by reducing wheel shimmy, bump steer and vibration.

Application Summary
expand_more

2000-2008 Dodge Ram 1500 (Front) (Body: Extended Crew Cab Pickup & Front Spring: Coil & Drive: 4WD / Qualifier: with OE Steering Damper, Single Steering Damper, Dual Steering Dampers, Must use with RS64450 Steering Damper Mounting Kit); 2000-2008 Dodge Ram 2500 (Front) (Drive: 4WD / Qualifier: Replaces OE Part Number(s) 52106909AB, 52106909AC, 52106909AD, 52106909AE, 52106909AF, 52106909AG, Single Steering Damper, with OEM Steering Damper Mounts, To 02/19/2008); 2000-2008 Dodge Ram 3500 (Front) (Drive: 4WD / Qualifier: Replaces OE Part Number(s) 52106909AB, 52106909AC, 52106909AD, 52106909AE, 52106909AF, 52106909AG, Single Steering Damper, with OEM Steering Damper Mounts, To 02/19/2008)
