| Upper Mounting Code | XP7 |
| Extended Bumper Stop | No |
| Heavy Duty Supplier | Yes |
| Extended Hydraulic Lockout | No |
| Shock Absorber Rod End Measuring Point | Center of Cross Pin |
| Compressed Bumper Stop | Yes |
| Hydraulic Lockout | No |
| Lower Mounting Type | L1/CP3 |
| Extended Length | 523.9 |
| Dust Shield Included | Yes |
| Upper Mounting Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Internal Rebound Bumper | No |

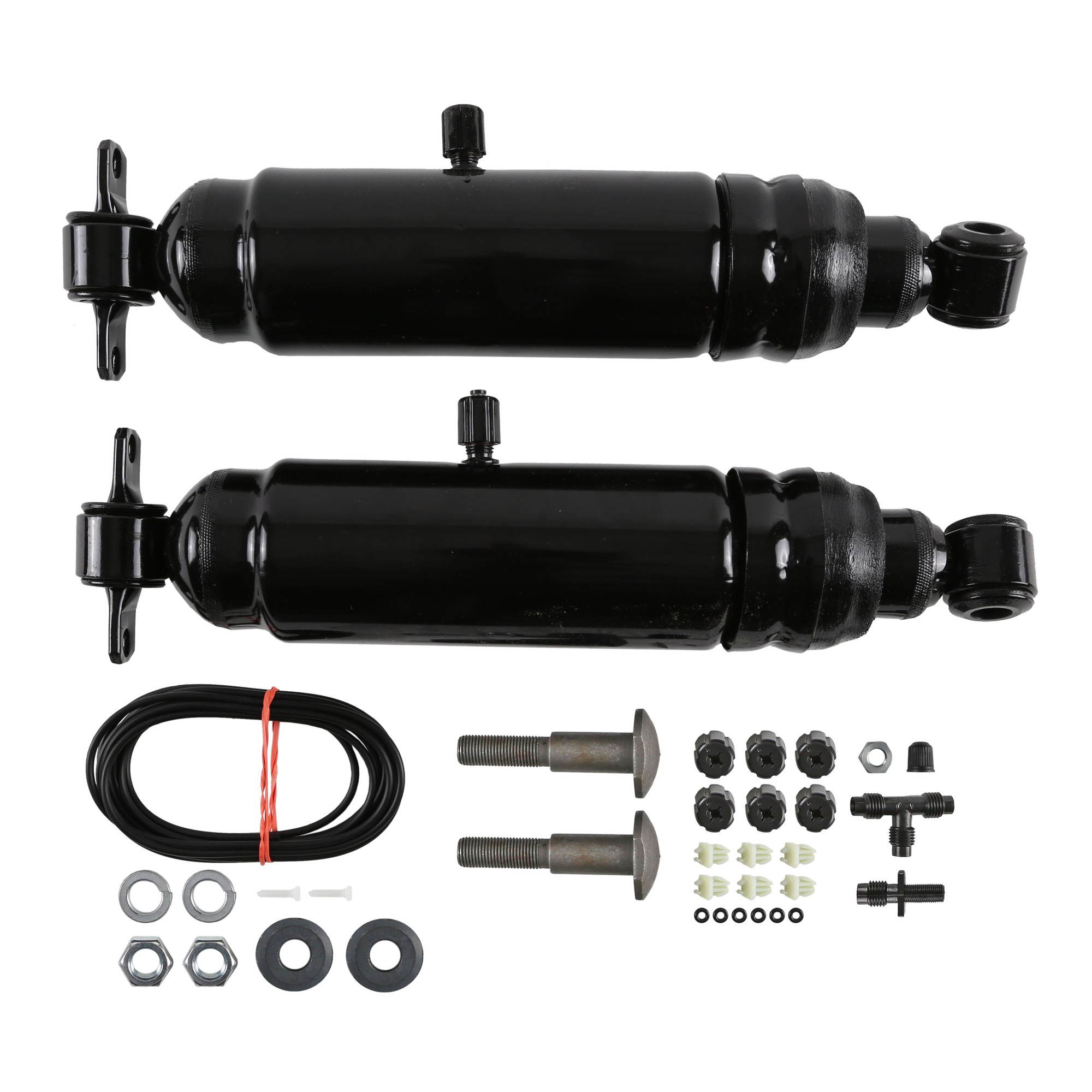

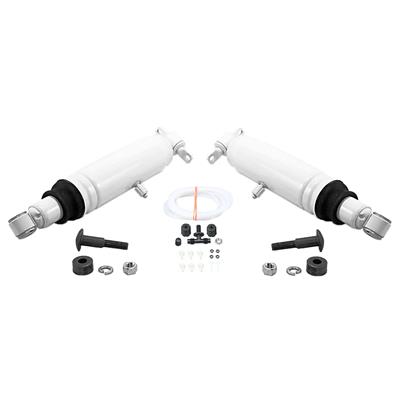

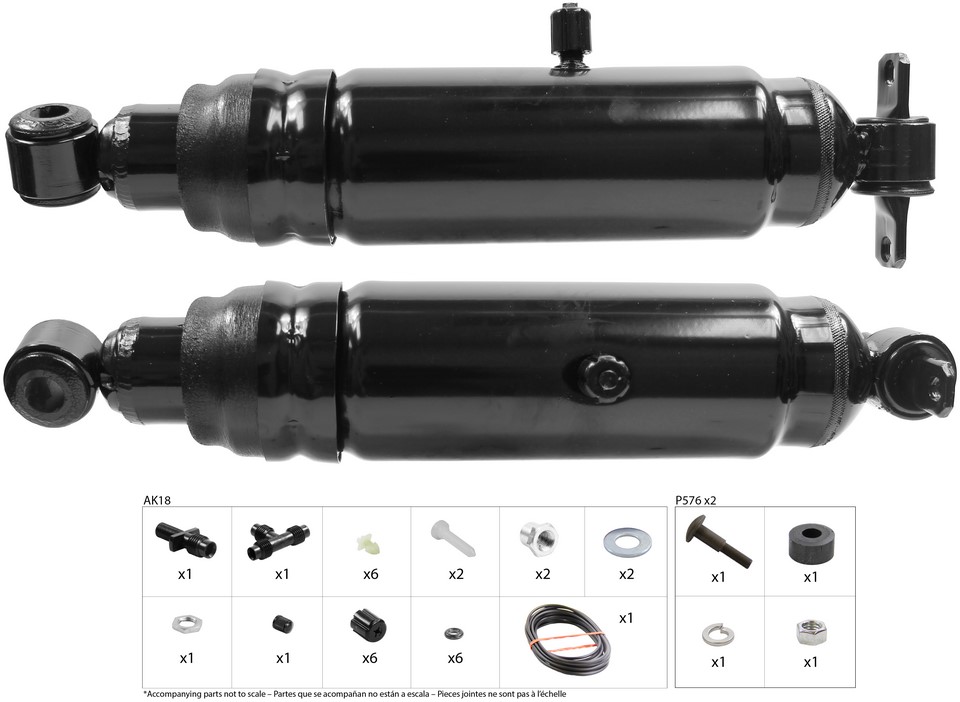

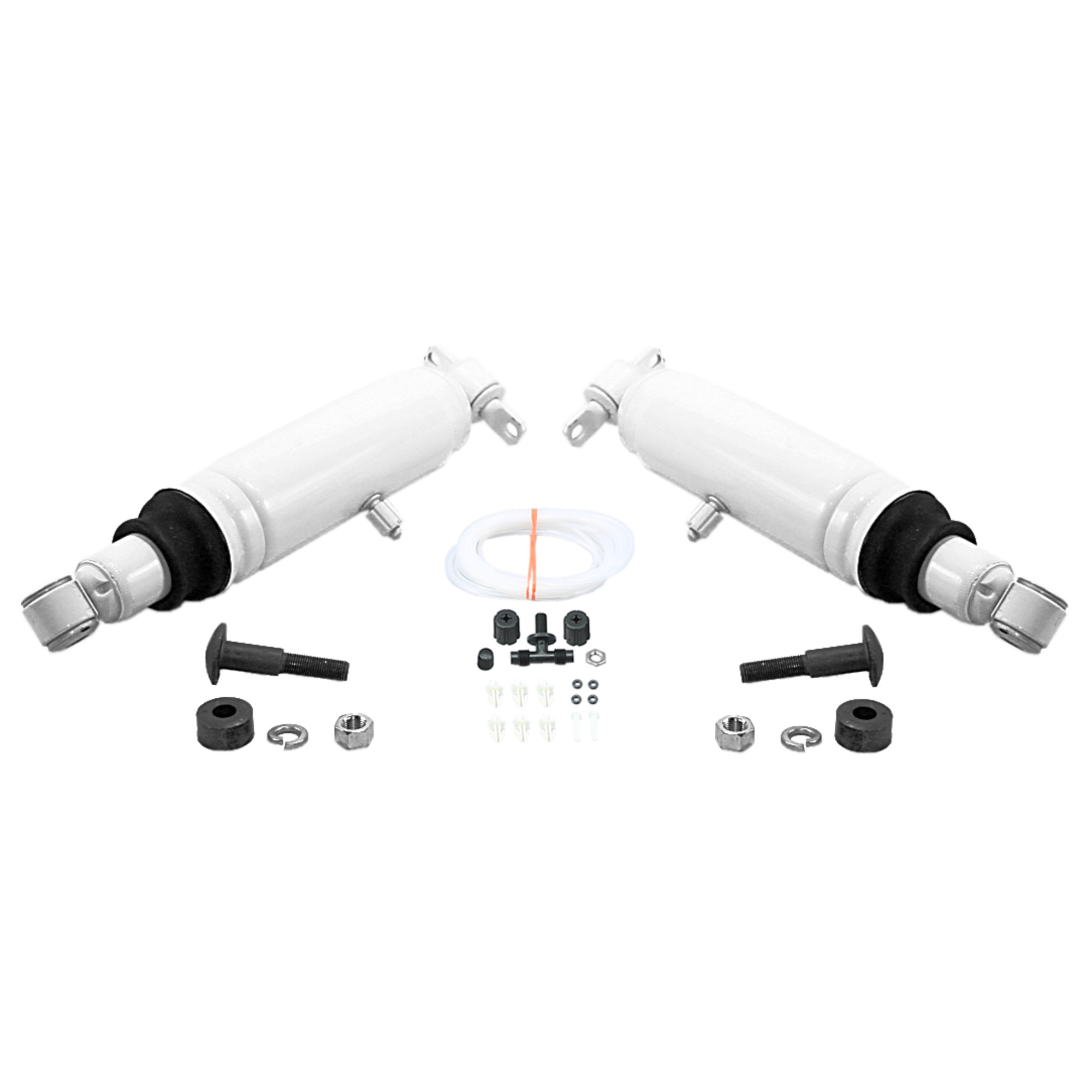

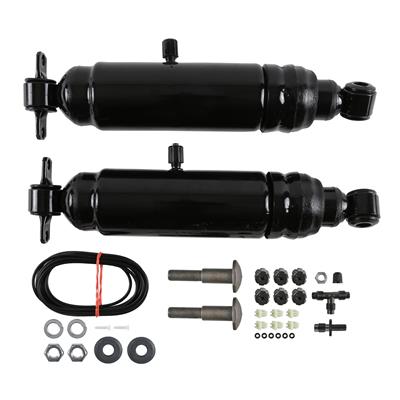

| Part Description | Air Shock Absorber |
| Dust Shield Material | Rubber |
| Shock Absorber Body End Measuring Point | Center of Loop |
| Boot Included | Yes |
| Compressed Length | 13 |
| Lower Mount Type | Loop Bushing and Cantilever Pin Mount - 1/2" Stud Diameter X 1 5/16" Stud Length (Center of Loop to Frame) |
| Parts Pack(s) | (2) P00576 |
| Upper Mount Type | Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center) |
| Lower Mount Code | L1/CP3 |
| Adjustable Rebound | No |
| Travel Length | 7.625 |
| Lower Mounting Code | L1/CP3 |
| Parts Pack | P00576 |
| Upper Mount Code | XP7 |
| Dust Shield | Yes |
| Grade Type | Premium |
| Part Terminology | Air Shock Absorber |
