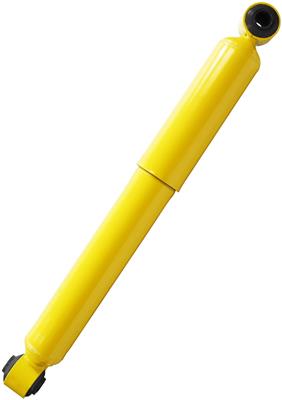

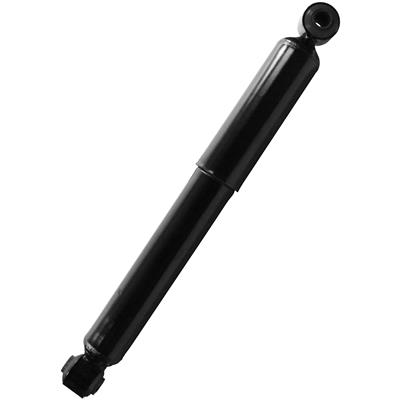

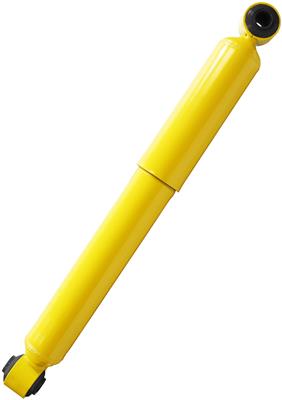

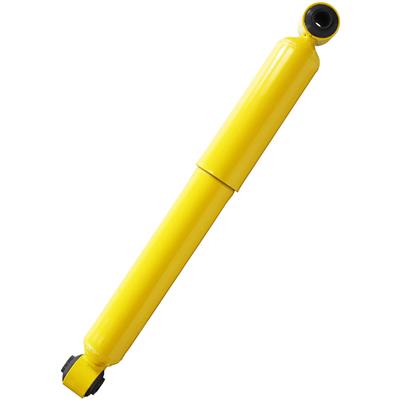

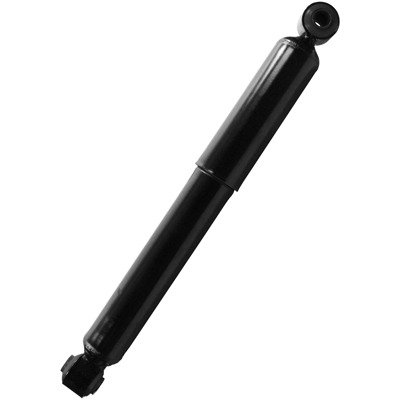

Magnum Suspension Shock Absorber
Part # 66420 | Line Code: MNE
brandNameImage
brandNameImage

$124.13
error
Not Fitted

Product Details
expand_less
Dust Shield Included Yes
Travel Length 172
Shock Absorber Rod End Measuring Point Center of Loop
Shock Absorber Body End Measuring Point Center of Loop
Compressed Length 12.73
Gas Charged Yes
Dust Shield Yes
Extended Length 495.6
Lower Mounting Description Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 1.7/8" Sleeve OAL
Max Year Covered 2019
Min Year Covered 2012
Extended Bumper Stop No
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Product Grade Premium
Parts Pack(s) None
Most Popular Make / Model Nissan NV2500
Most Popular Year 2016
Tope de rebote comprimido No
Cubre polvo Yes
Bloqueo hidráulico extendido No
Tope de rebote extendido No
Accesorio(s) None
Heavy Duty Supplier Yes
Parts Pack None
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 1.7/8" Sleeve OAL
Upper Mount Type Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 47.63MM Sleeve OAL
Tipo de Montura Superior Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 47.63MM Sleeve OAL
Total Part VIO 129777
Upper Mounting Description Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 47.63MM Sleeve OAL
Lower Mounting Type Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 1.7/8" Sleeve OAL
Upper Mounting Type Loop Bushing & Sleeve Mount - 14MM Sleeve ID X 47.63MM Sleeve OAL
Lower Mount Code LS44
Upper Mount Code LS44
Internal Rebound Bumper No
Part Description Shock Absorber
Lower Mount Type Loop Bushing and Sleeve Mount - 14MM Sleeve ID X 1.7/8" Sleeve OAL
Part Terminology Suspension Shock Absorber

Features & Benefits
expand_more
The Monroe(R) Magnum(R) shock absorber for class 3-6 vehicles is gas-charged for quicker response and a stable, more comfortable ride. Designed to handle the demands of high mileage and severe use vehicles, replace worn-out units with Magnum(R) shocks to help reduce excessive vibration.

Application Summary
expand_more

2012-2021 Nissan NV1500 (Rear) (Qualifier: Shocks are 1.38 (in) Bore); 2012-2021 Nissan NV2500 (Rear) (Qualifier: Shocks are 1.38 (in) Bore); 2012-2021 Nissan NV3500 (Rear) (Qualifier: Shocks are 1.38 (in) Bore)
