Shocks & Struts

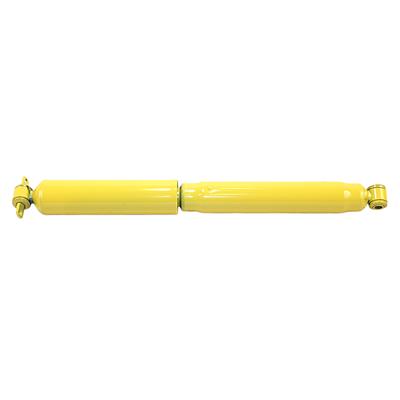

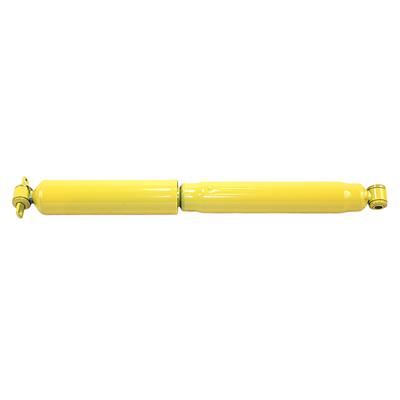

Gas-Magnum Suspension Shock Absorber
Part # 34767 | Line Code: MNE
brandNameImage
brandNameImage

$99.83
error
Not Fitted

Product Details
expand_less
Dust Shield Included Yes
Shock Absorber Body End Measuring Point Center of Loop
Travel Length 10
Shock Absorber Rod End Measuring Point Center of Cross Pin
Gas Charged Yes
Dust Shield Yes
Extended Length 641.3
Compressed Length 387.3
Upper Mounting Description Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Lower Mounting Description Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Max Year Covered 1999
Min Year Covered 1992
Most Popular Year 1999
Most Popular Make / Model Chevrolet Tahoe
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Product Grade Premium
Extended Bumper Stop Yes
Parts Pack(s) None
Tope de rebote comprimido No
Cubre polvo Yes
Bloqueo hidráulico extendido No
Accesorio(s) None
Tope de rebote extendido Yes
Heavy Duty Supplier Yes
Parts Pack None
Upper Mount Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Tipo de Montura Superior Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Total Part VIO 160714
Upper Mounting Type Cross Pin Mount - Closed Ended, 5/16" Hole ID (Both Ends) X 2.7/8" Pin Length (Hole Center to Center)
Lower Mounting Type Loop Bushing & Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Lower Mount Code LS47
Upper Mount Code XP7
Part Description Shock Absorber
Internal Rebound Bumper Yes
Lower Mount Type Loop Bushing and Sleeve Mount - 9/16" Sleeve ID X 1.5/8" Sleeve OAL
Part Terminology Suspension Shock Absorber

Features & Benefits
expand_more
Designed for midsize and full-size trucks and vans, Monroe(R) Gas-Magnum(R) shock absorbers provide firm control without a harsh ride. With up to twice the fluid capacity of standard 1-in. bore shocks, they work more efficiently with less effort.

Application Summary
expand_more

1992-1994 Chevrolet Blazer (Rear) (Qualifier: without Z71 Off Road Package); 1995-1999 Chevrolet Tahoe (Rear) (Doors: 2); 1992-1997 GMC Yukon (Rear) (Doors: 2)
