Shocks & Struts

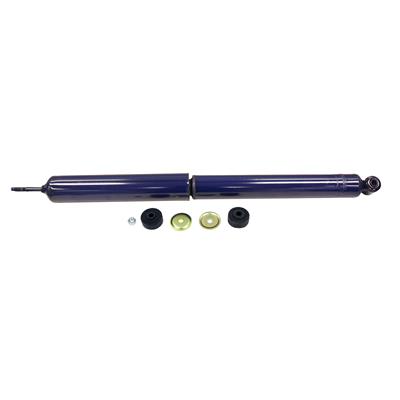

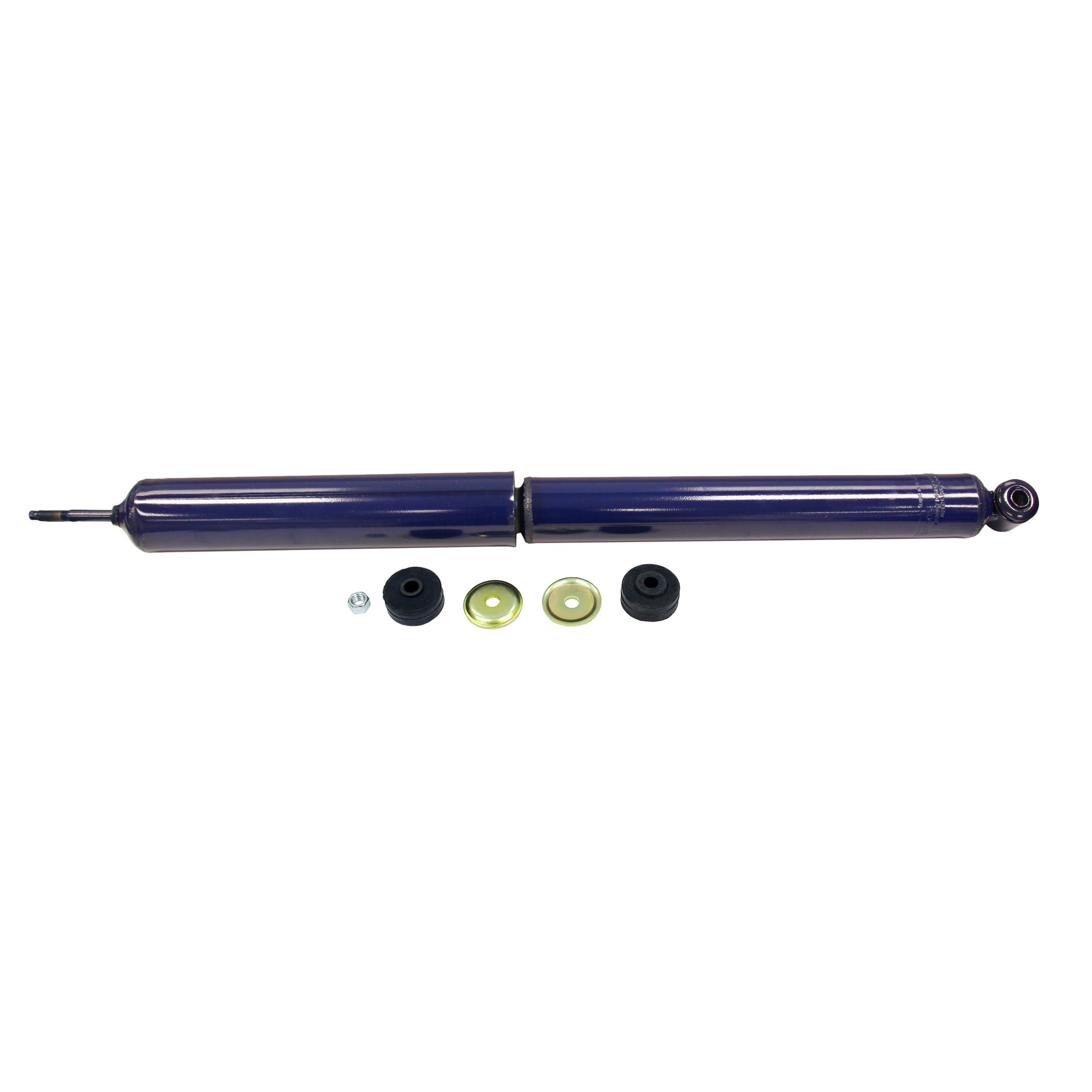

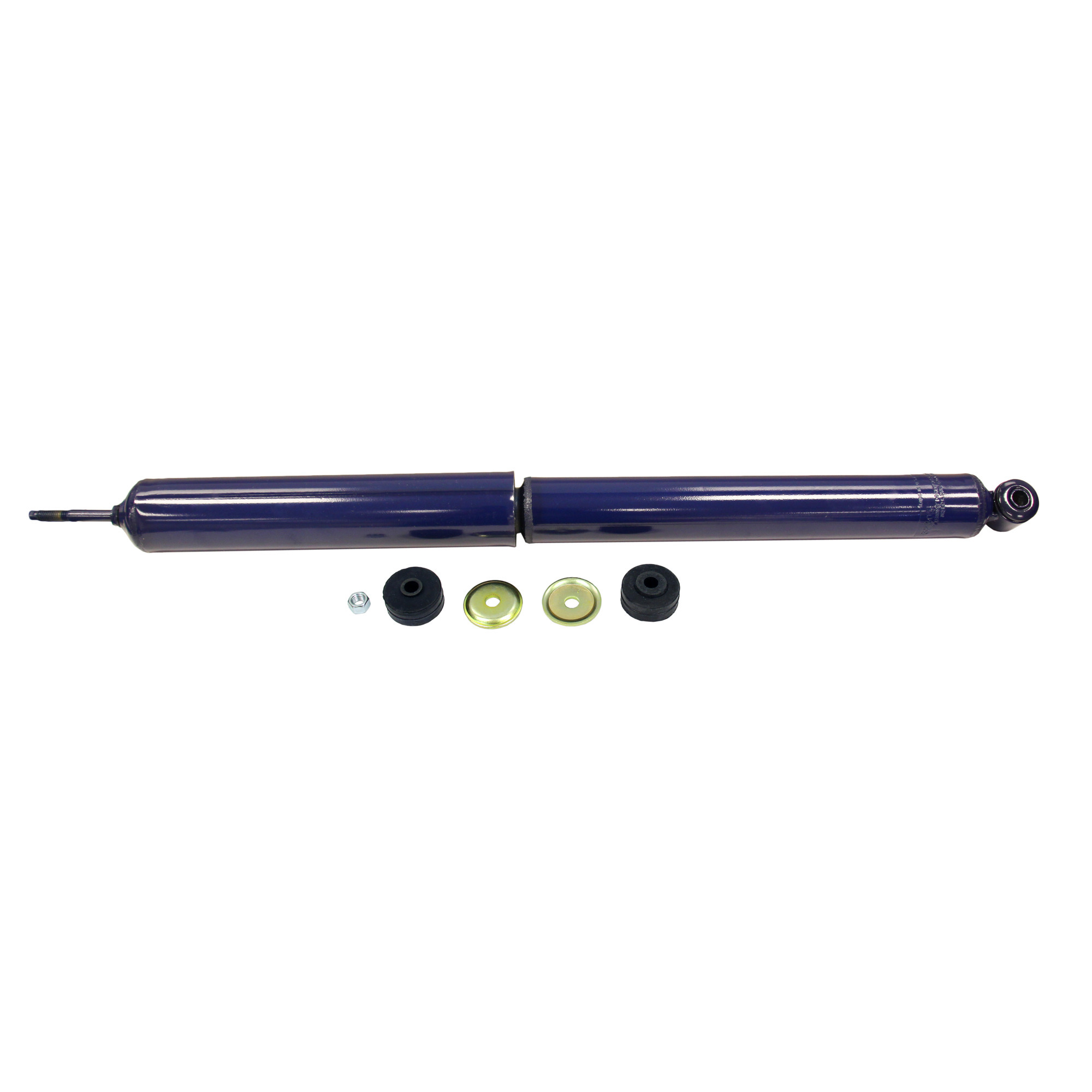

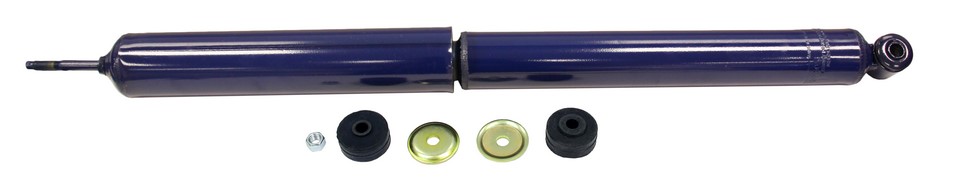

Monro-Matic Plus Suspension Shock Absorber
Part # 32305 | Line Code: MNE
brandNameImage
brandNameImage

$59.61
error
Not Fitted

Product Details
expand_less
Dust Shield Included Yes
Extended Length 27.25
Shock Absorber Body End Measuring Point Center of Loop
Shock Absorber Rod End Measuring Point Base of Stem
Gas Charged Yes
Dust Shield Yes
Compressed Length 396.9
Travel Length 295.3
Upper Mounting Description Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Lower Mounting Description Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Accesorio(s) P1136
Upper Mount Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Product Grade Economy
Most Popular Make / Model Ford F-150
Min Year Covered 1997
Max Year Covered 2004
Most Popular Year 2004
Extended Bumper Stop No
Extended Hydraulic Lockout No
Compressed Bumper Stop No
Parts Pack(s) P1136
Tope de rebote comprimido No
Cubre polvo Yes
Bloqueo hidráulico extendido No
Tope de rebote extendido No
Heavy Duty Supplier Yes
Tipo de Montura Superior Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Tipo de Montura Inferior Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Parts Pack P1136
Total Part VIO 988529
Upper Mounting Type Stem Mount - 2.3/8" Stem Length X 3/8"-16 Thread Pitch
Lower Mounting Type Loop Bushing & Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Upper Mount Code S4
Lower Mount Code LS26
Internal Rebound Bumper No
Part Description Shock Absorber
Lower Mount Type Loop Bushing and Sleeve Mount - 12MM Sleeve ID X 1.1/2" Sleeve OAL
Part Terminology Suspension Shock Absorber

Features & Benefits
expand_more
Engineered to get more miles from your car, Monro-Matic(R) PLUS shocks are equipped with nitrogen gas charge and feature Velocity Proportional Valving (VPV) technology for improved comfort at an economical price.

Application Summary
expand_more

2004 Ford F-150 Heritage XLT XL (Rear) (Drive: 4WD / Qualifier: Except 7,700 GVW); 1997-2003 Ford F-150 (Rear) (Drive: 4WD / Qualifier: without 7,700 (lb) Gross Vehicle Weight (GVW), Except 7,700 GVW)
