| Flywheel Diameter | 9.331 |
| Flywheel Inner Diameter | 5.039 |
| Heavy Duty Supplier | Yes |
| Number Of Mounting Bores | 27 |
| Flywheel Cup Depth/Step Height | 0 |
| Number of Teeth | 106 |
| Dowel Hole Pattern | 5 |
| Bolt Hole Pattern | 2 |
| Has Dowel Pins | with Dowel Pins |
| Dowel hole diameter | 0.315 |
| Flywheel friction surface outer diameter | 237 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Ring Gear Chamfer matches OE | Ring Gear Chamfer matches OE |
| Ring Gear Chamfer Side | Engine |
| Flywheel matches Clutch | Flywheel matches Clutch |
| Number of teeth, starter ring gear | 106 |
| Flywheel Friction Surface Inner diameter | 128 |
| Centering diameter / dowel hole | 247 |
| Ring Gear Major Dia. | 271.49 |
| I.D. for Pilot | 32.96 |
| Ring Gear Mounting O.D. | 245.84 |
| Overall Casting O.D. | 267.97 |
| Flywheel Thickness [mm] | 29.94 |
| Crank Hole Dia. | 12.42 |
| Bolt hole PCD clutch pres.plte | 9.7244 |
| Flange Thickness | 0.3768 |
| Bolt hole PCD crankshaft | 1.9685 |
| Crank To Friction Surface | 0.8559 |
| Ring Gear Thickness | 0.3331 |

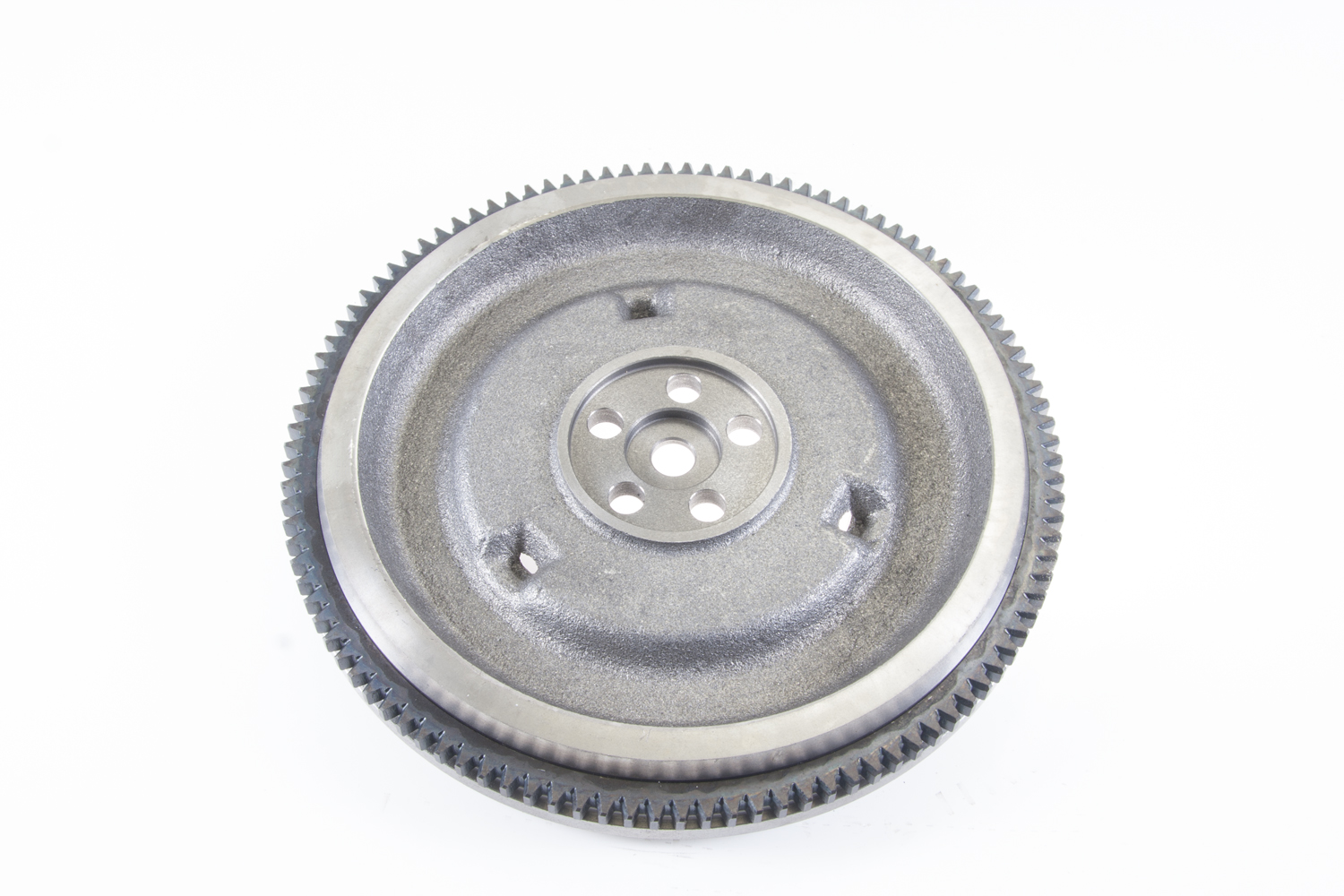

| Part Terminology | Clutch Flywheel |
