| Flywheel Diameter | 8.484 |
| Flywheel Cup Depth/Step Height | 0.02 |
| Flywheel Inner Diameter | 5.394 |
| Heavy Duty Supplier | Yes |
| Number Of Mounting Bores | 24 |
| Number of Teeth | 106 |
| Dowel Hole Pattern | 5 |
| Bolt Hole Pattern | 2 |
| Has Dowel Pins | with Dowel Pins |
| Centering diameter / dowel hole | 250 |
| Ring Gear Chamfer Position @ 6:00 O´clock | Left |
| Ring Gear Chamfer Side | Engine |
| Number of teeth, starter ring gear | 106 |
| Flywheel Cup Depth or Step Height | 0.5 |
| Bolt hole PCD clutch pres.plte | 250 |
| Flywheel Friction Surface Inner diameter | 137 |
| Ring Gear Major Dia. | 271.36 |
| I.D. for Pilot | 35.77 |
| Bolt hole PCD crankshaft | 59.8 |
| Ring Gear Mounting O.D. | 236.89 |
| Crank To Friction Surface | 26.62 |
| Flywheel Thickness [mm] | 31.69 |
| Flywheel friction surface outer diameter | 215.5 |
| Crank Hole Dia. | 10.54 |
| Dowel hole diameter | 7.98 |
| Flange Thickness | 0.4559 |
| Overall Casting O.D. | 10.6909 |
| Ring Gear Thickness | 0.3524 |

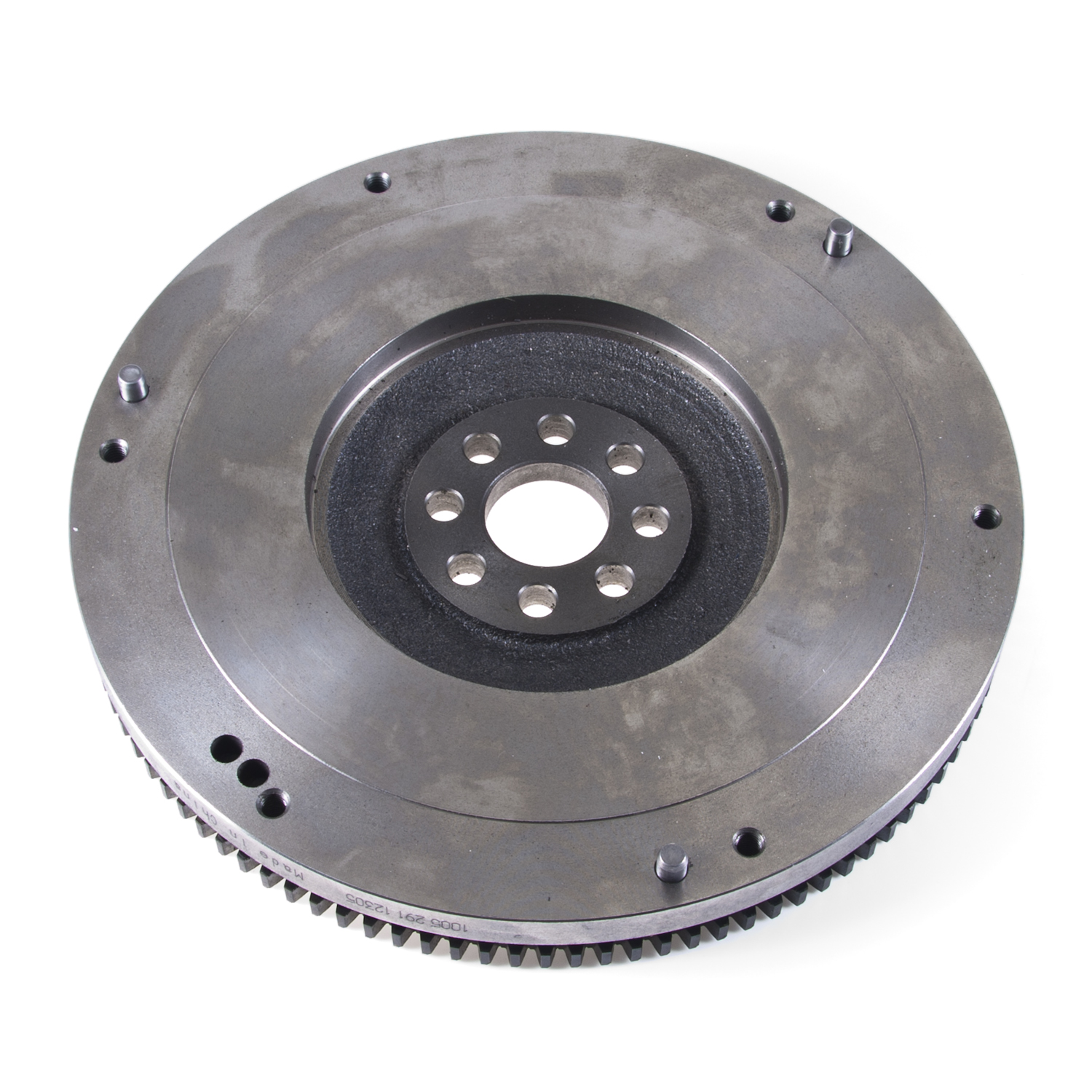

| Part Terminology | Clutch Flywheel |
