| Performance Rated? | Yes |
| Fan Bolt Circle IN | 3.81 |
| Description | Fan Clutches |
| Mounting Hole Quantity | 4 |
| Use Type | Severe |
| Thermal Or Centrifugal | Electronic |
| New or Reman | New |
| Mounting Hardware? | Not Included |
| Overall Height MM | 111.5 |
| Mount Type | HEX |
| Bolt Quantity | 4 |
| Bolt Hole Quantity | 4 |
| Overall Height IN | 4.39 |
| Style | Severe Duty |
| Pilot Depth IN | 0.54 |
| SDS Required | No (135233618) |
| Clutch Type | Electronic |
| Drawing Type | D |
| Overall Dia. MM | 190 |
| O.E. Replacement? | Yes |
| Pilot Dia. IN | 1.18 |
| Mount Dia. IN | 1.44 |
| Warranty | 1 year/12,000 miles |
| Duty Rating | Severe |
| Overall Dia. IN | 7.48 |
| Color | Raw Aluminum in Color |
| Terminal Type | Female |
| Mounting Hardware Included | No |
| Material | Aluminum |
| Mounting Type | HEX |
| Clutch Maximum Diameter | 7.48 |
| Rotation | REV |
| Pilot Dia. MM | 30 |
| Meets / Exceeds OEM? | Yes |
| Type | Electronic |
| Dia. IN | 7.48 |
| Distance From Clutch To Mounting Flange | 1.07 |
| Bolt Thread | 5/16 in - 18 |
| Fan Mount Dia. IN | 3.25 |
| Grade Type | Severe |
| Mount Hole Qty | 4 |

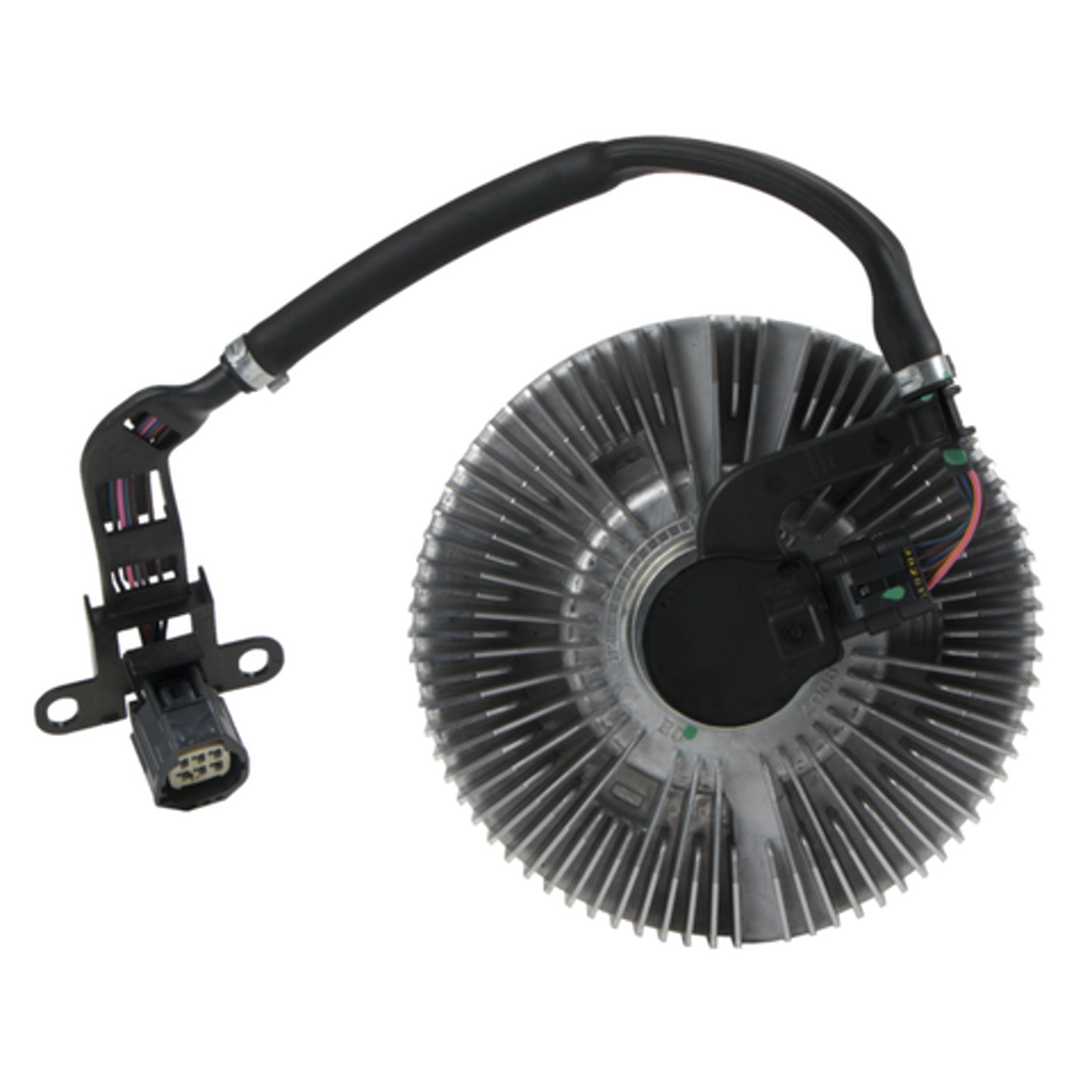

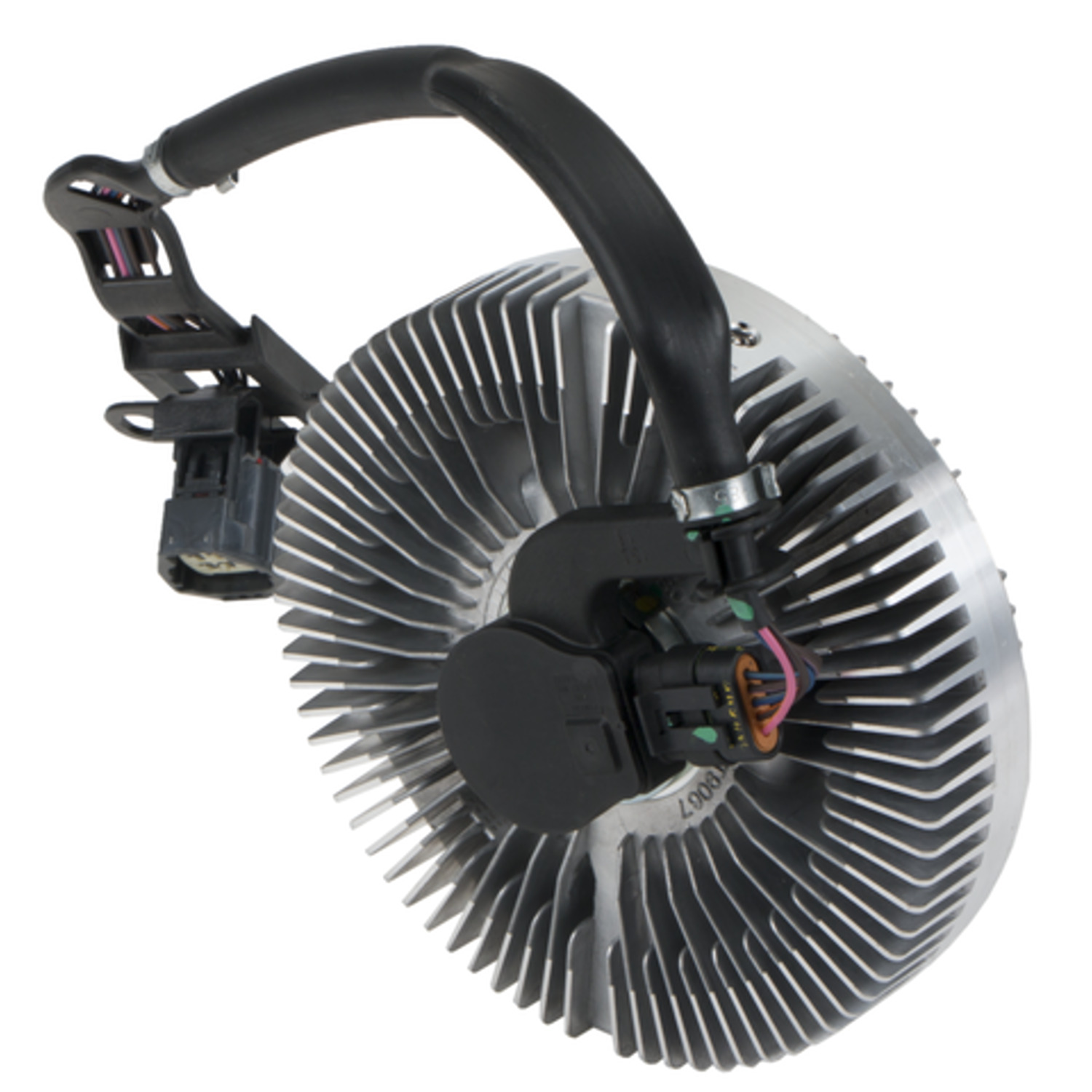

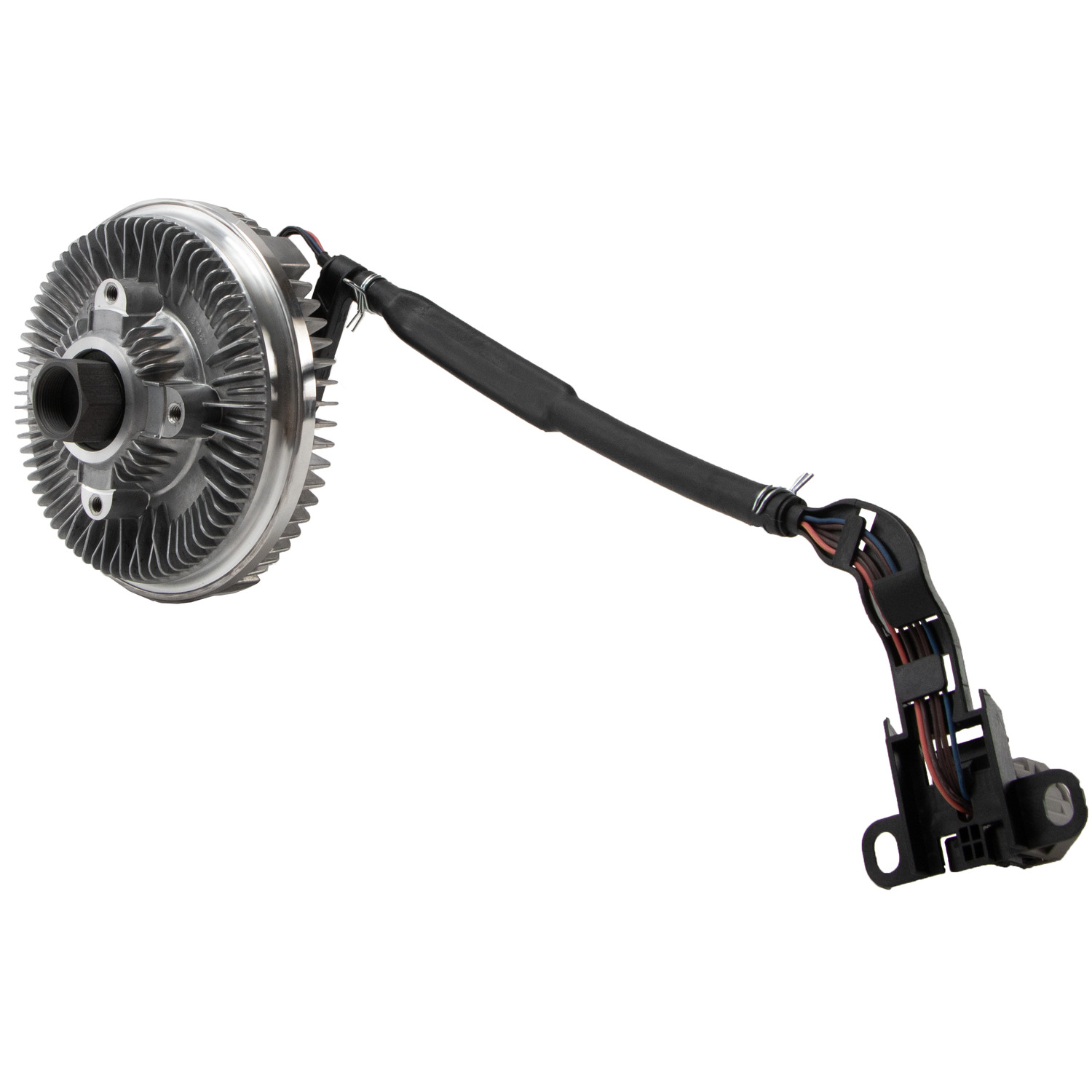

| Part Terminology | Engine Cooling Fan Clutch |
