| Brake Pilot Diameter | 78.3 |
| Flange Shape | MODIFIED TRIANGLE |
| Spline Quantity | 33 |
| Wheel Stud Thread Pitch | 1.5 |
| Heavy Duty Supplier | Yes |
| Bearing Type | TAPER |
| Knuckle Bolt Hole Size | 14.7 |
| Flange Bolt Hole Diameter | 14.7 |
| Wheel Pilot Diameter | 77.6 |
| Flange Bolt Hole Quantity | 3 |
| Knuckle Bolt Circle Diameter (Inches) | 4.961 |
| Drive Type | Driven |
| Weight | 12.743 |
| Wheel Stud Quantity | 6 |
| Bearing Generation | Gen 3 |
| Wheel Stud Size | 0.55 |
| Bolt Circle Diameter | 139.7 |
| Flange Diameter | 7.16 |
| Driven/Non-Driven | Driven |
| Anti Lock Braking System | No |
| Flange Included | Yes |
| Flange Offset | 56.8 |
| Wheel Stud Size (Millimeters) | M14X1.5 |
| Knuckle Bolt Circle Diameter (Millimeters) | 126.0 |

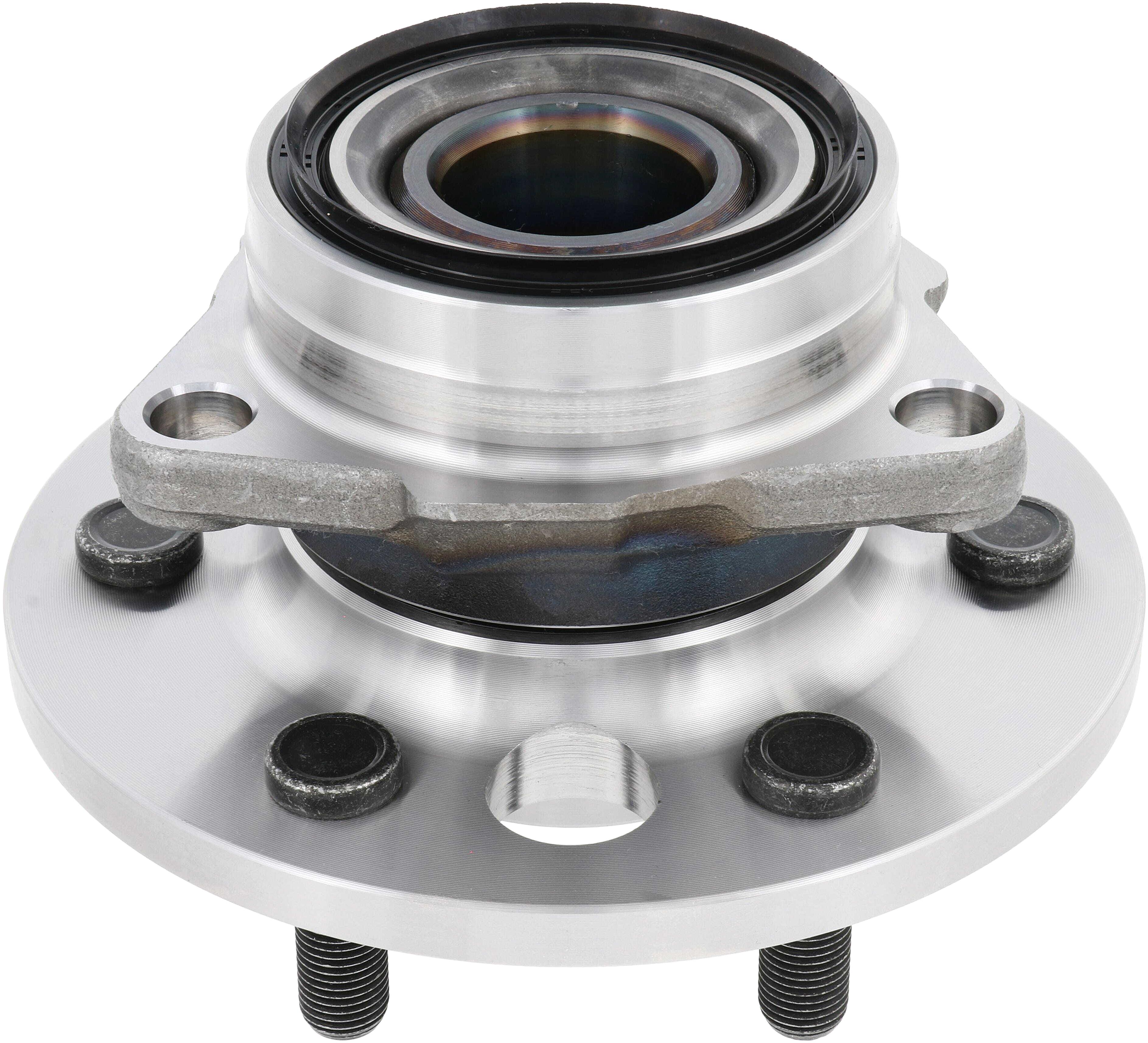

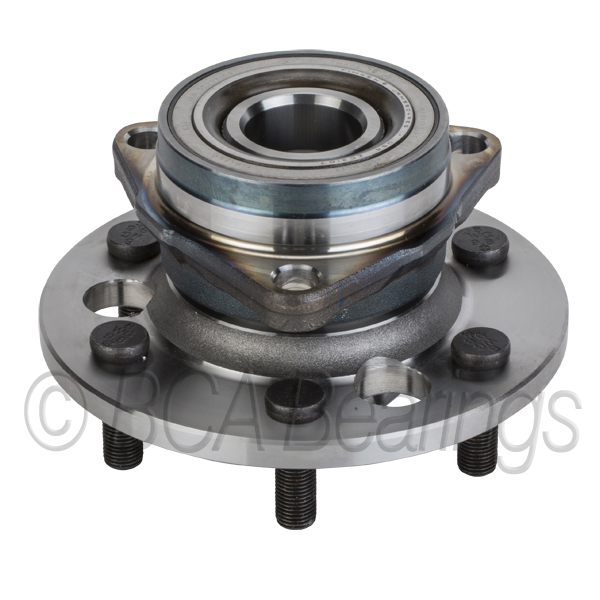

| Part Terminology | Wheel Bearing and Hub Assembly |
