Bearing Type | Ball |
Wheel Stud Quantity | 5 |
Bolt Circle Diameter | 4.500 |
Flange Shape | OFFSET TRAPEZOID |
Flange Offset | 60 |
Wheel Pilot Diameter | 60 |
Brake Pilot Diameter | 62 |
Anti Lock Braking System Type | Encoder with sensor |
Flange Diameter | 5.98 |
Drive Type | Non-driven |
Flange Bolt Hole Quantity | 4 |
Bearing Generation | Gen 3 |
Flange Included | Yes |
Anti Lock Braking System | Yes |
Wheel Stud Size | 0.47 |
Flange Bolt Hole Diameter | M12x1.25 |
Driven/Non-Driven | Non-Driven |
Heavy Duty Supplier | Yes |
Wheel Stud Size (Millimeters) | M12X1.5 |
Knuckle Bolt Hole Size | M12X1.25 |
Knuckle Bolt Circle Diameter (Millimeters) | 99.0 |
Knuckle Bolt Circle Diameter (Inches) | 3.898 |
Knuckle Pilot Hole Diameter | 74 |

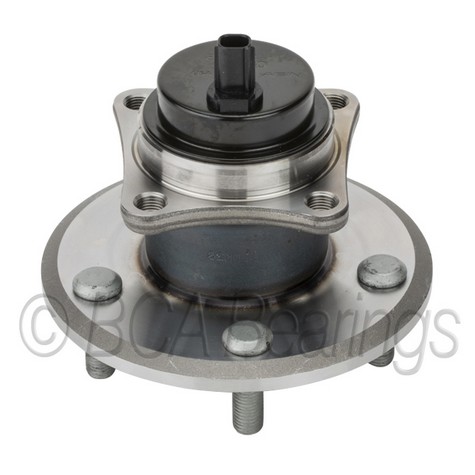

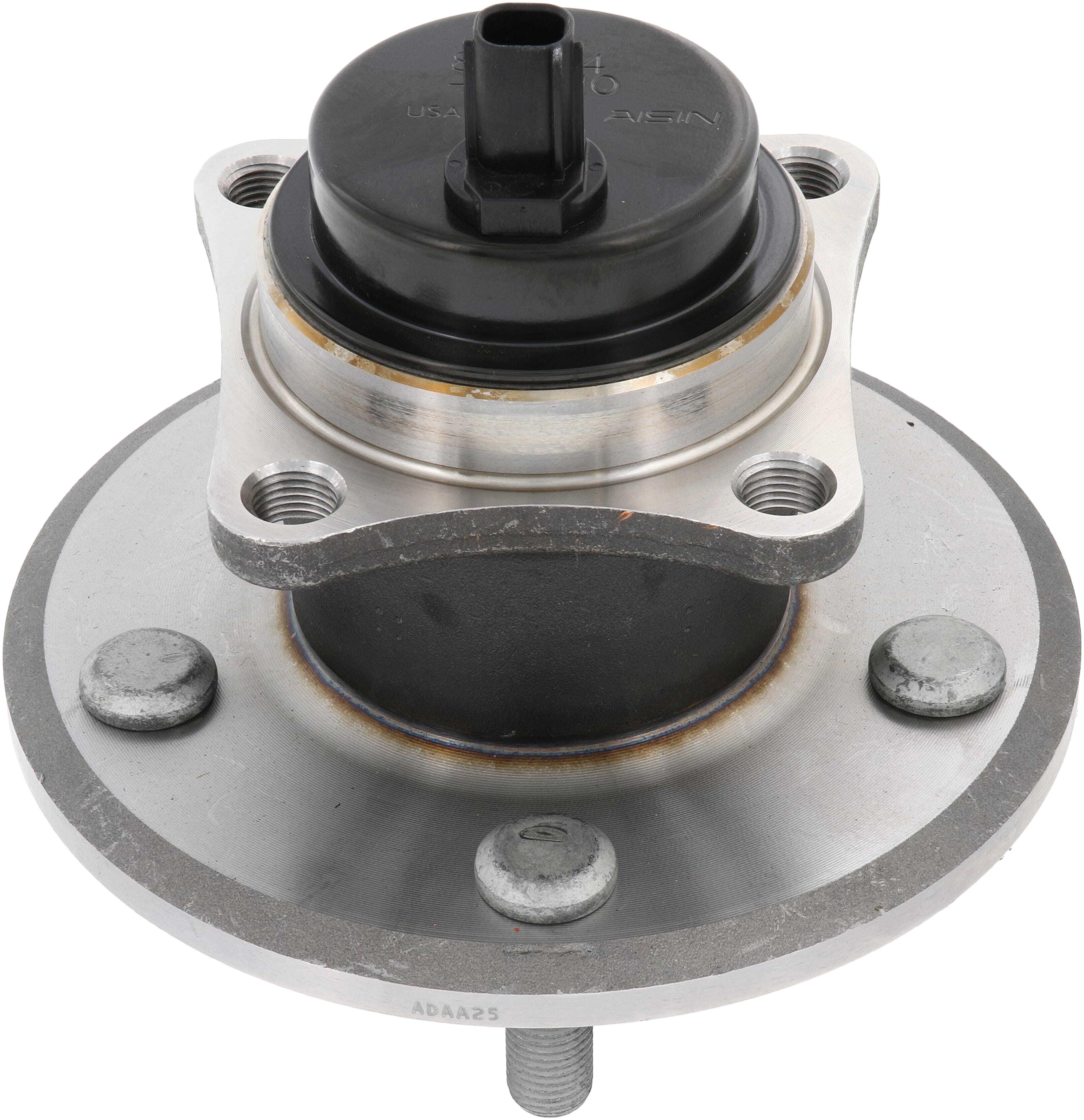

Part Terminology | Wheel Bearing and Hub Assembly |
