| Flange Shape | OFFSET TRAPEZOID |
| Wheel Stud Thread Pitch | 1.5 |
| Heavy Duty Supplier | Yes |
| Wheel Pilot Diameter | 67 |
| Flange Bolt Hole Diameter | M12x1.25 |
| Knuckle Bolt Circle Diameter (Inches) | 4.409 |
| Wheel Stud Quantity | 5 |
| Wheel Stud Size | 0.47 |
| Anti Lock Braking System Type | Encoder |
| Driven/Non-Driven | Driven |
| Knuckle Bolt Circle Diameter (Millimeters) | 112.0 |
| Brake Pilot Diameter | 80 |
| Spline Quantity | 27 |
| Bearing Type | Ball |
| Knuckle Bolt Hole Size | M12X1.25 |
| Flange Bolt Hole Quantity | 4 |
| Drive Type | Driven |
| Bearing Generation | Gen 3 |
| Bolt Circle Diameter | 114.3 |
| Flange Diameter | 5.51 |
| Anti Lock Braking System | Yes |
| Flange Included | Yes |
| Flange Offset | 59.2 |
| Knuckle Bolt Thread Pitch | 1.25 |
| Wheel Stud Size (Millimeters) | M12X1.5 |

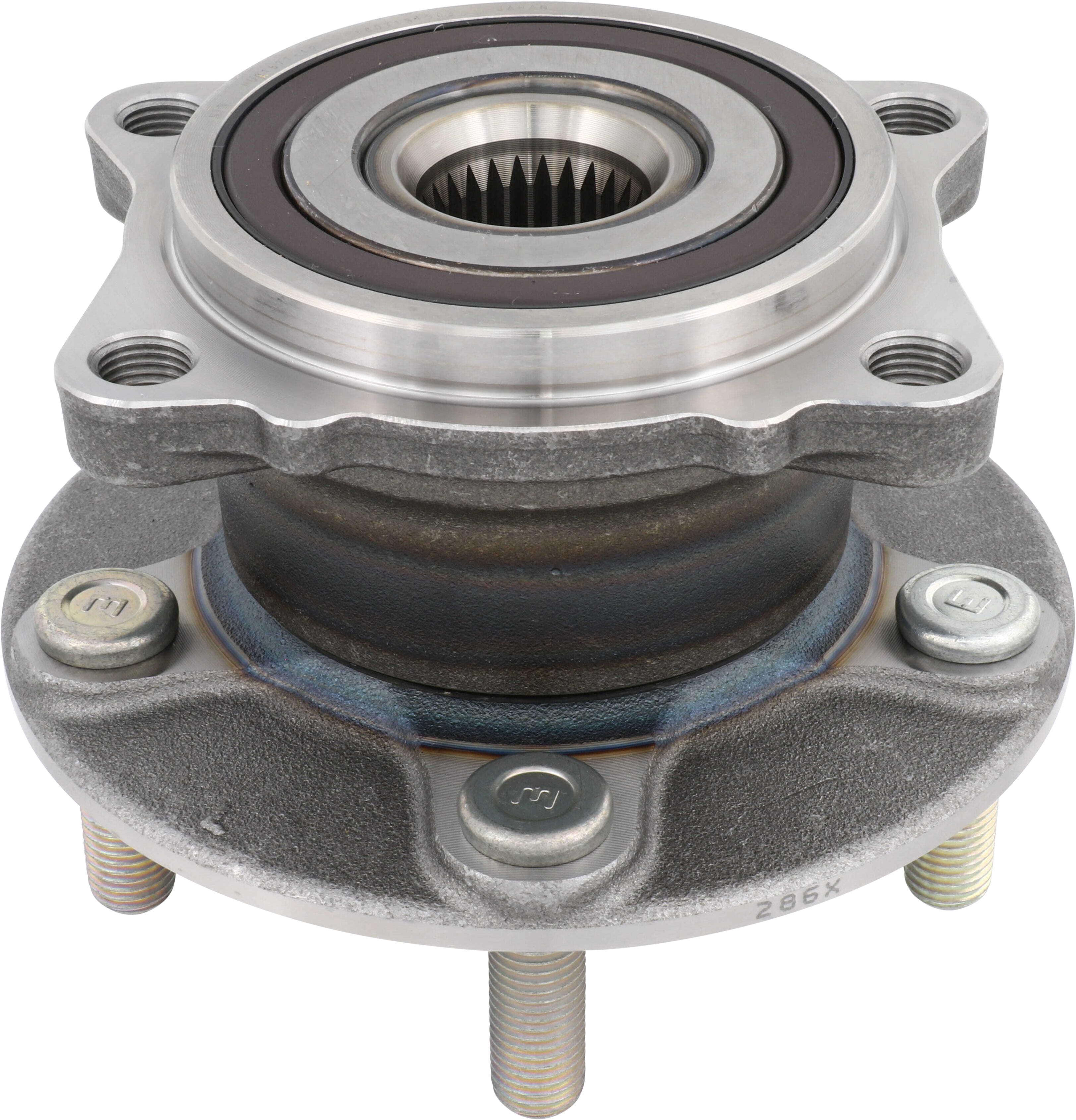

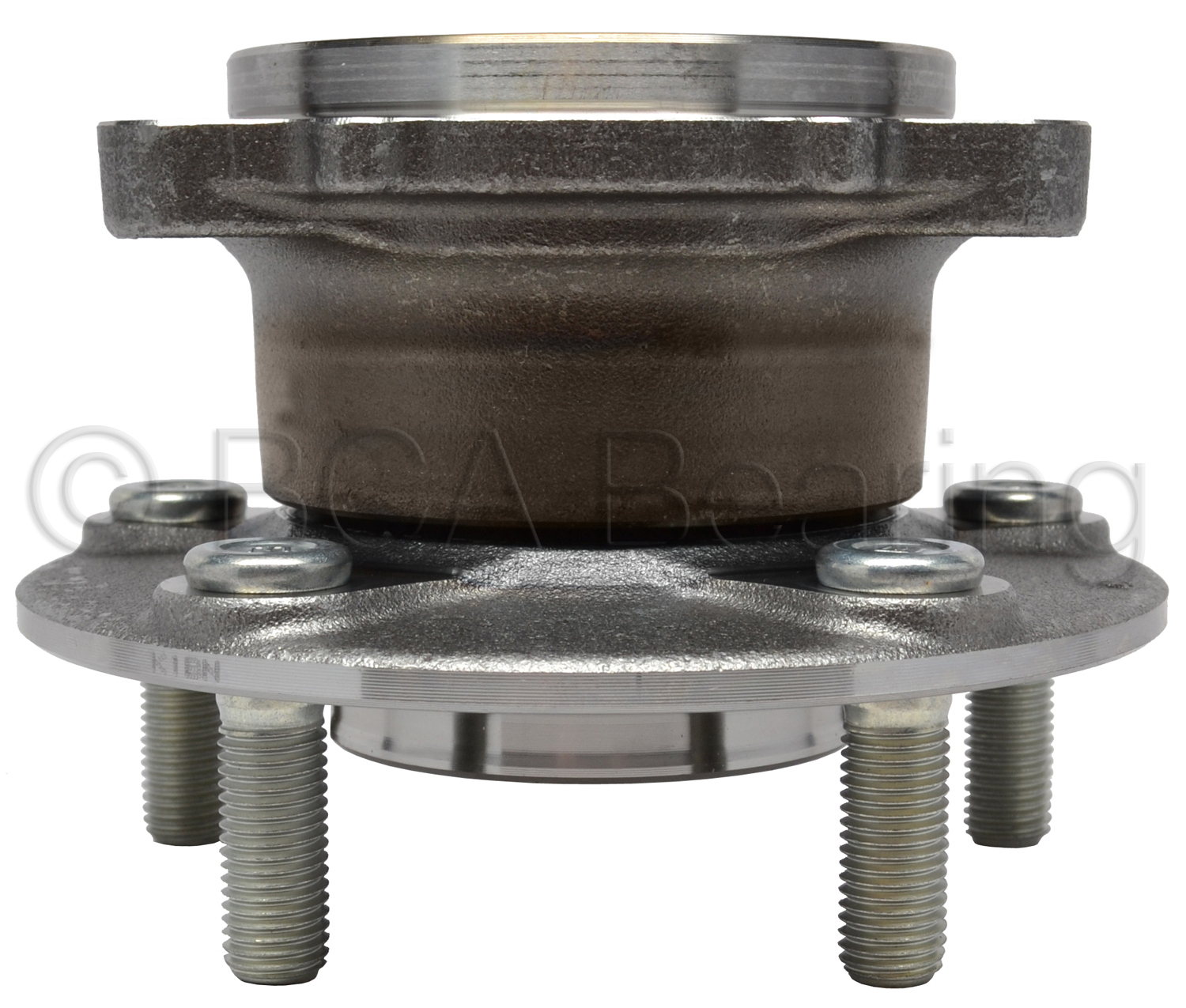

| Part Terminology | Wheel Bearing and Hub Assembly |
